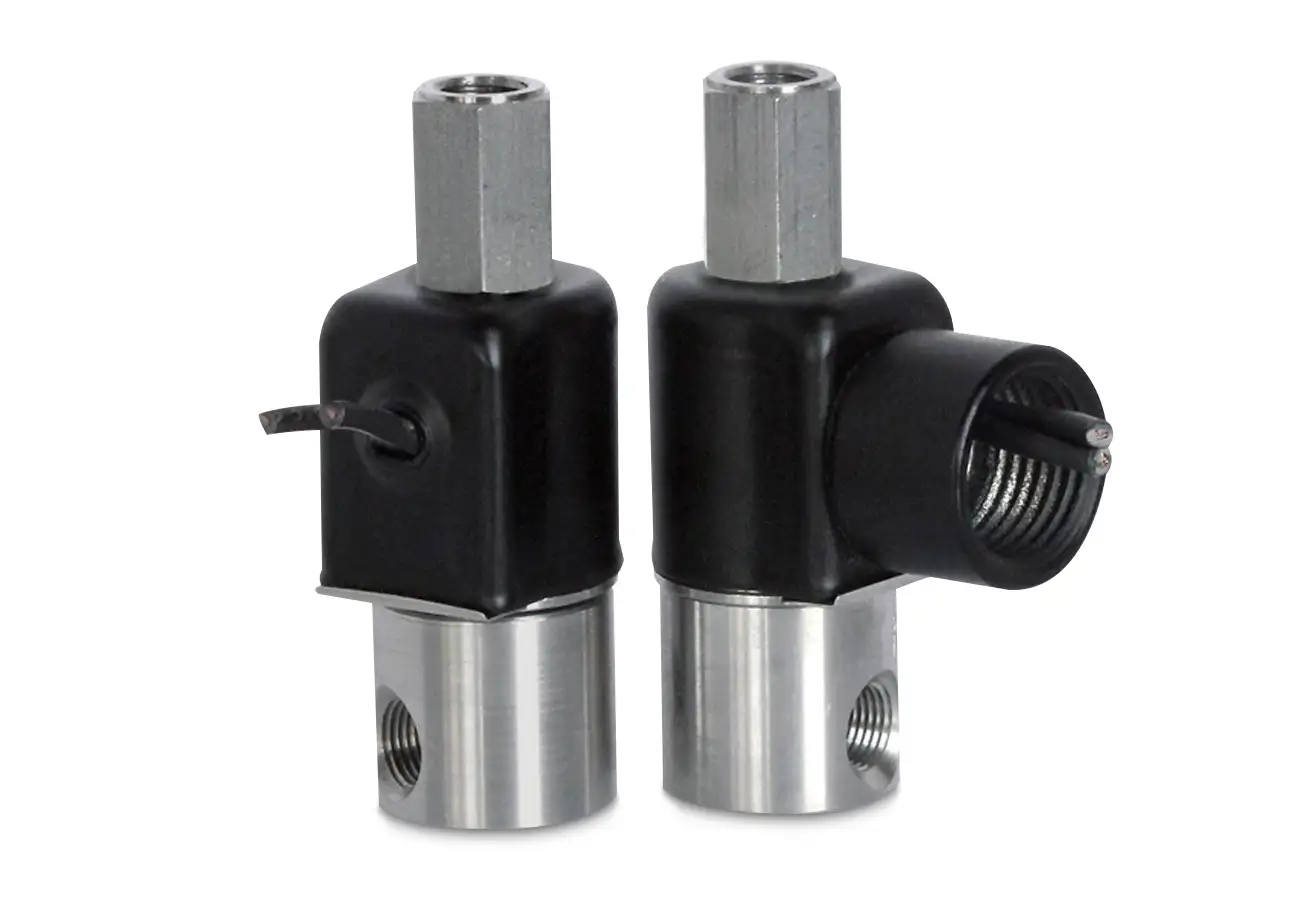

Series 50 LW Model LW51

Low Watt
2-Way Normally Open Valve

General purpose valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials.

• General purpose valve with reduced power consumption.
• Increased versatility.
• For pneumatic and hydraulic application.
• Increased to handle hot air, water and refrigerants.
• High quality engineering.

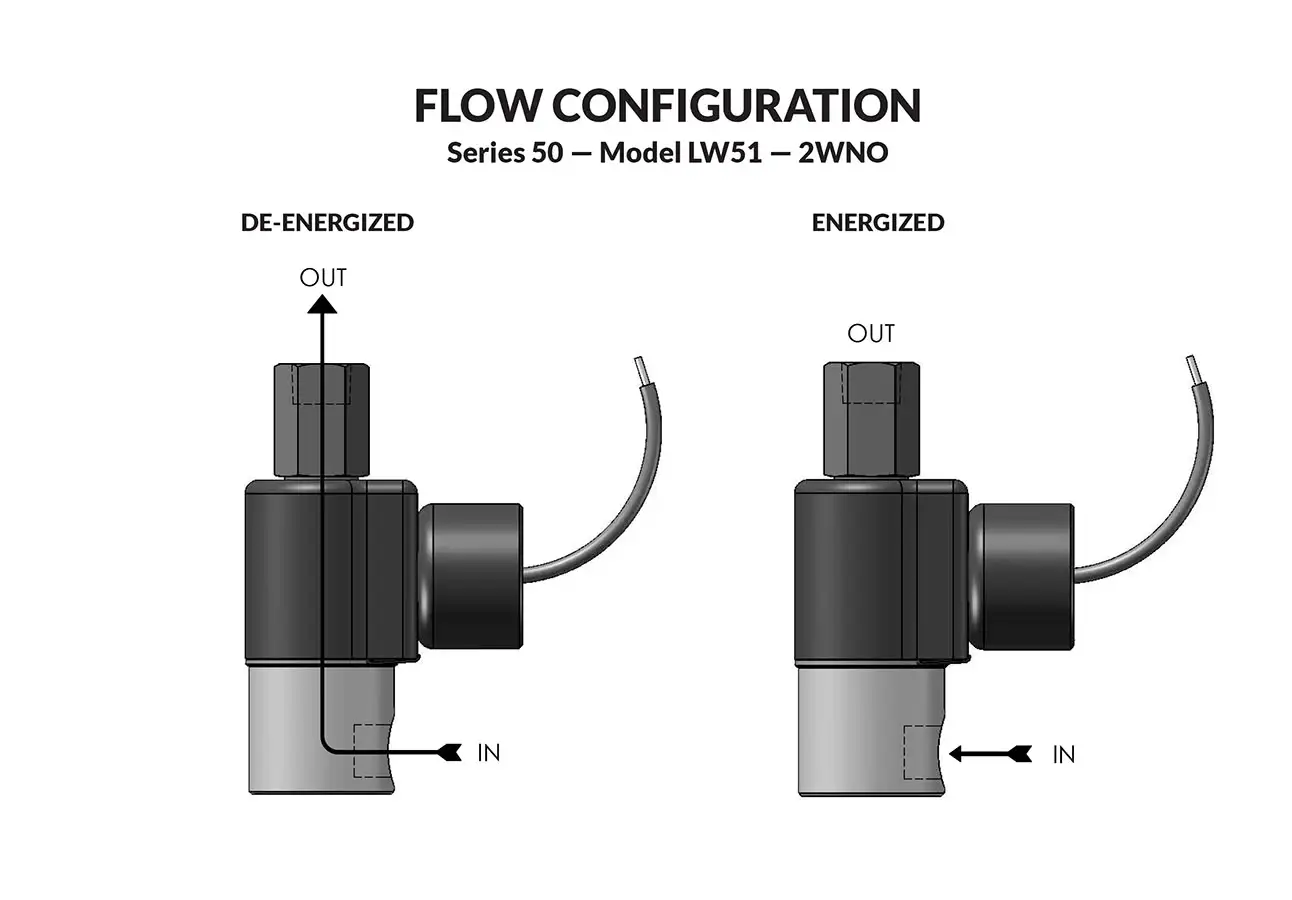

51flow

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING
  • FLOW CHART
  • NOMENCLATURE

OPERATING CONDITIONS

MAX. OPER. PRESS. DIFF. ORIFICE SIZE CV FACTOR VALVE NUMBER
GAS LIQUID
AC DC AC DC N.O. N.O. GROMMET 1/8" NPT CONDUIT 1/8" NPT
300 200 300 200 1/32 .020 LW51G8XGM LW51G8XCM
270 120 120 65 3/64 .048 LW51H8XGM LW51H8XCM
135 50 40 30 1/16 .075 LW51J8XGM LW51J8XCM
70 35 30 20 5/64 .134 LW51V8XGM LW51V8XCM
55 30 25 15 3/32 .156 LW51K8XGM LW51K8XCM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (LW51J8XGML-120/60) REPAIR PACK (KLW51JX-AC)

OPERATING CONDITIONS

Media: Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 22 to 277V AC 60 HZ. and 20 to 250V AC 50 HZ.— 6.0 to 120V DC
Nominal Power: AC — 2.5 Watts DC — 2.5 Watts
Coil Construction: Non-molded Class A, Molded and potted Class F. (Class H optional)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8" NPT (Std.)
Housing: Grommet and 1/2" NPT conduit - many options available.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
Repair Packs: See table above.
Options: Alternate Port Locations, Metering and Alternate Elastomers*

* Consult representative or factory for options and specifications.

Series 50LW Model LW51 Conduit Connection


2WNO CONDUIT CONNECTION

BODY OPTION "O"
2WNO CONDUIT CONNECTION

Series 50LW Model LW51 Conduit/Bracket Connection


2WNO
CONDUIT/BRACKET CONNECTION

2WNO BODY OPTION "O"
CONDUIT/BRACKET CONNECTION

Series 50LW Model LW51 Grommet Connection


2WNO GROMMET WITH LEADS

2WNO
GROMMET WITH LEADS

Series 50LW Model LW51 Grommet/Bracket Connection


2WNO
GROMMET/BRACKET WITH LEADS

2WNO BODY OPTION O
GROMMET/BRACKET WITH LEADS

Series 50LW Model LW51 Splice Box


2WNO
SPLICE BOX CONNECTION

2WNO
SPLICE BOX CONNECTION

Series 50LW Model LW51 Yoke Leads


2WNO
YOKE WITH LEADS

2WNO
YOKE WITH LEADS

Series 50LW Model LW51 Yoke Spades


2WNO
YOKE WITH SPADE TERMINALS

2WNO
YOKE WITH SPADE TERMINALS
