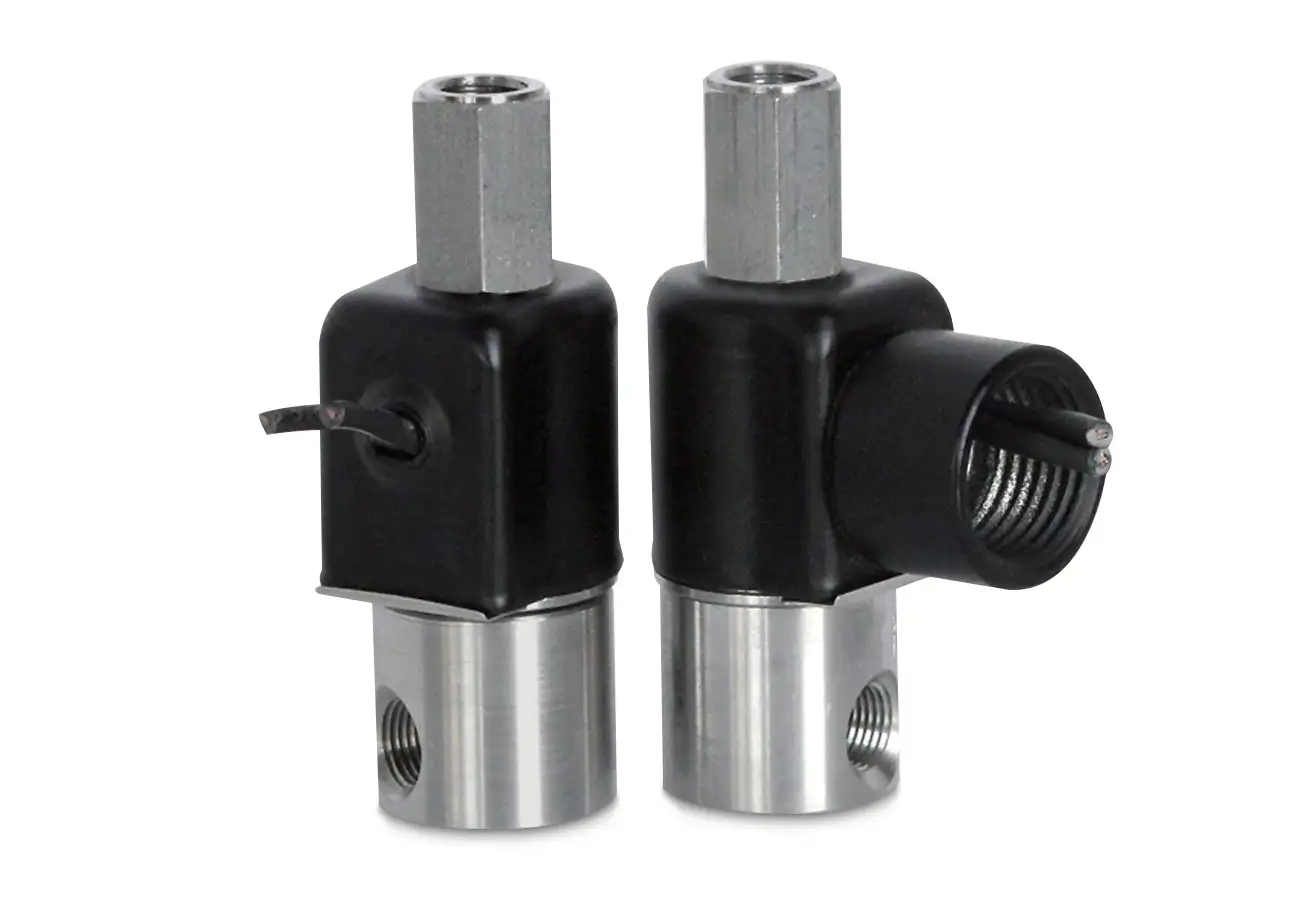

Series 50 Model 56

3-Way Multi-Purpose Valve

Our original mini — engineered for space economy without sacrificing performance. Typical applications include medical, analytical instrumentation. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

• Tough with options to use in hazardous location environments or low watt applications.
• High quality engineering.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

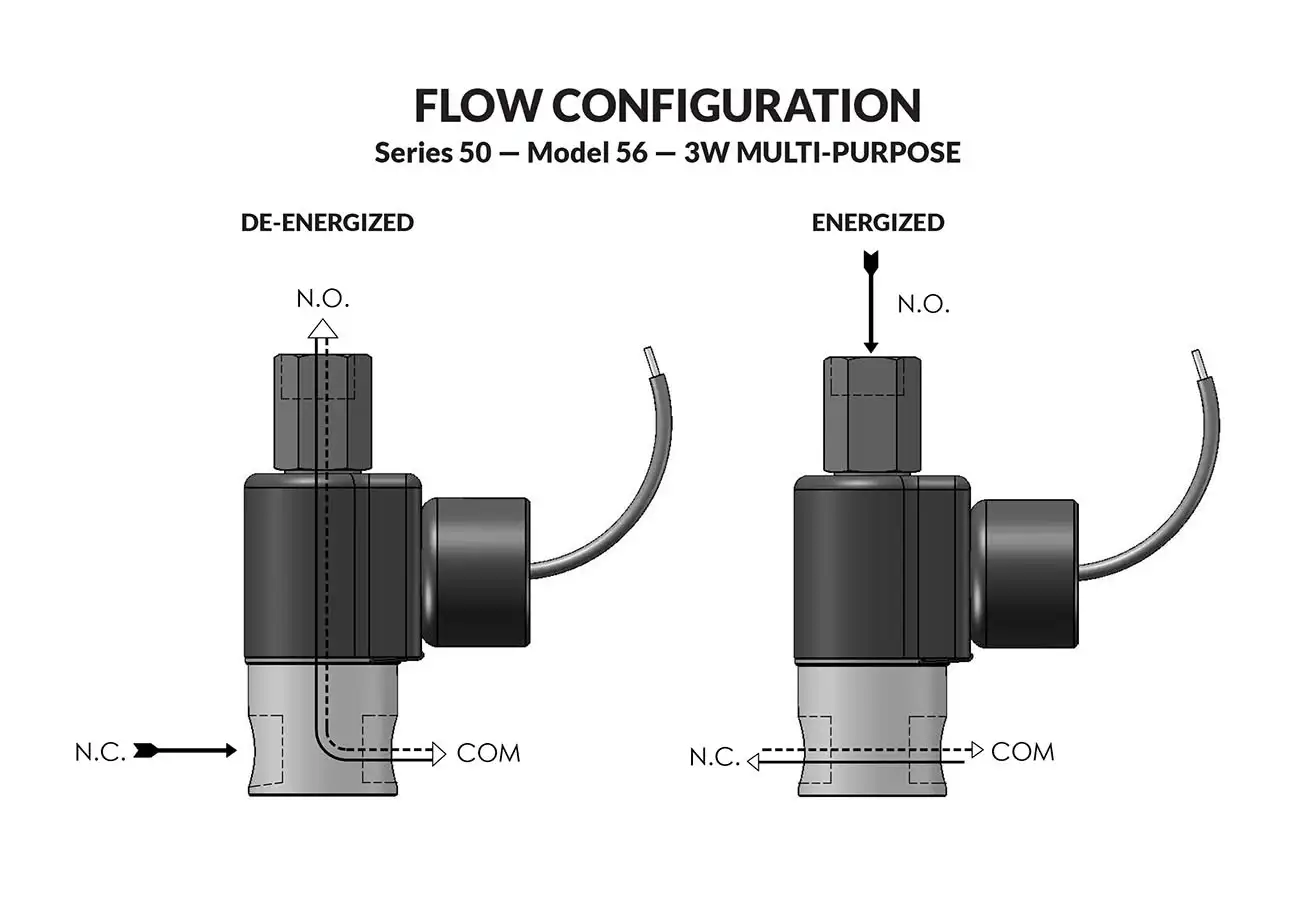

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
AC DC N.C. N.O. N.C. N.O. 1/8 NPT PORTS 1/8 NPT PORTS
125 125 1/32 1/32 .022 .020 56GG8XGM 56GG8XCM
100 100 3/64 3/64 .055 .048 56HH8XGM 56HH8XCM
65 50 1/16 1/16 .075 .075 56JJ8XGM 56JJ8XCM
25 25 3/32 3/32 .156 .150 56KK8XGM 56KK8XCM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (56JJ8XGM-120/60) REPAIR PACK (K56JJX-AC)

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6.0 to 575V AC 60 HZ. and 5.4 to 515V AC 50 HZ. — 3.0 to 300V DC
Nominal Power: AC — 6.0 Watts, DC — 7.0 Watts
Coil Construction: Molded and potted Class F. (Class H optional)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8" NPT (other ports available).*
Housing: Grommet and 1/2" NPT conduit - many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.38 lb Conduit Valve: 0.44 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Alternate Elastomers, Low Wattage, Spade Terminal Coil and Explosion Proof*

* Consult representative or factory for options and specifications.

Series 50 General Purpose Valves Conduit


MODEL 56
3W MULTI-PUPOSE
CONDUIT CONNECTION

MODEL 56 10-32 PORTS
3-WAY MULTI-PURPOSE
CONDUIT CONNECTION

MODEL 56 BODY OPTION "E"
3-WAY MULTI-PURPOSE
CONDUIT CONNECTION

MODEL 56 BODY OPTION "O"
3-WAY MULTI-PURPOSE
CONDUIT CONNECTION

MODEL 56 BODY OPTION "R"
3-WAY MULTI-PURPOSE
CONDUIT CONNECTION

MODEL 56 METERED BODY
3-WAY MULTI-PURPOSE
CONDUIT CONNECTION

MODEL 56 STUD MOUNT BODY
3W MULTI-PUPOSE
CONDUIT CONNECTION

Series 50 General Purpose Valves Conduit/Bracket Connection


MODEL 56
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 56 10-32 PORTS
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 56 BODY OPTION "E"
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 56 BODY OPTION "O"
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 56 BODY OPTION "R"
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 56 METERED BODY
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 56 STUD MOUNT BODY
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

Series 50 General Purpose Valves Grommet


MODEL 56
3W MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 56 10-32 PORTS
3-WAY MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 56 BODY OPTION "E"
3-WAY MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 56 BODY OPTION "O"
3-WAY MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 56 BODY OPTION "R"
3-WAY MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 56 METERED BODY
3-WAY MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 56 STUD MOUNT BODY
3W MULTI-PURPOSE
GROMMET WITH LEADS

Series 50 General Purpose Valves Grommet/Bracket Connection


MODEL 56
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 56 10-32 PORTS
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 56 BODY OPTION "E"
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 56 BODY OPTION "O"
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 56 BODY OPTION "R"
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 56 METERED BODY
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 56 STUD MOUNT BODY
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

Series 50 General Purpose Valves Splice Box


MODEL 56 PIPED EXHAUST
3-WAY MULTI-PURPOSE
SPLICE BOX CONNECTION

MODEL 56 10-32 PORTS
3-WAY MULTI-PURPOSE
SPLICE BOX CONNECTION

MODEL 56 BODY OPTION "E"
3-WAY MULTI-PURPOSE
SPLICE BOX CONNECTION

MODEL 56 BODY OPTION "O"
3-WAY MULTI-PURPOSE
SPLICE BOX CONNECTION

MODEL 56 BODY OPTION "R"
3-WAY MULTI-PURPOSE
SPLICE BOX CONNECTION

MODEL 56
3-WAY MULTI-PURPOSE
SPLICE BOX CONNECTION

MODEL 56 STUD MOUNT BODY
3-WAY MULTI-PURPOSE
SPLICE BOX CONNECTION

Series 50 General Purpose Valves Yoke Leads


MODEL 56
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 56 10-32 PORTS
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 56 BODY OPTION "E"
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 56 BODY OPTION "O"
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 56 BODY OPTION "R"
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 56 METERED BODY
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 56 STUD MOUNT BODY
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

Series 50 General Purpose Valves Yoke Spades


MODEL 56
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 56 10-32 PORTS
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 56 BODY OPTION "E"
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 56 BODY OPTION "O"
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 56 BODY OPTION "R"
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 56 METERED BODY
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 56 STUD MOUNT BODY
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS
