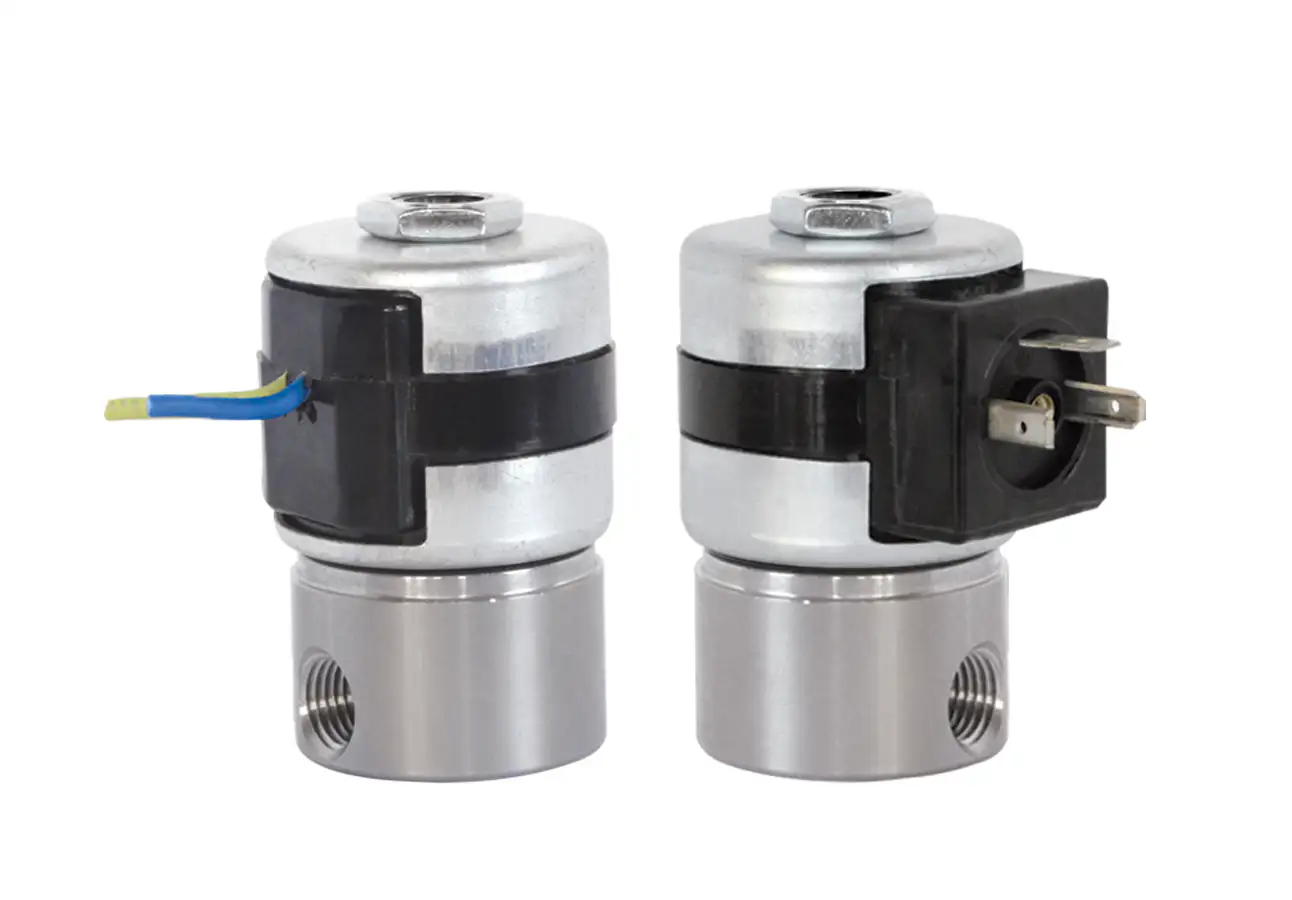

Series MLV 20 Model MLV 23 (e to a)

Series 20 Model 23 Magnetic Latching

3-Way Normally Closed Valve (exhaust to atmosphere)
This type of valve is often used in remote areas where continuous power may not be available or with battery-powered portable equipment where power capacity is limited. It is also valuable in equipment where coil heating , due to continuous application of power, is undesirable. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials.
• Valve is magnetic latching.
• Meets today's demand for economy of space.
• Uses power only during latching and un-latching.
• Great for medical and chemical analyzers.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

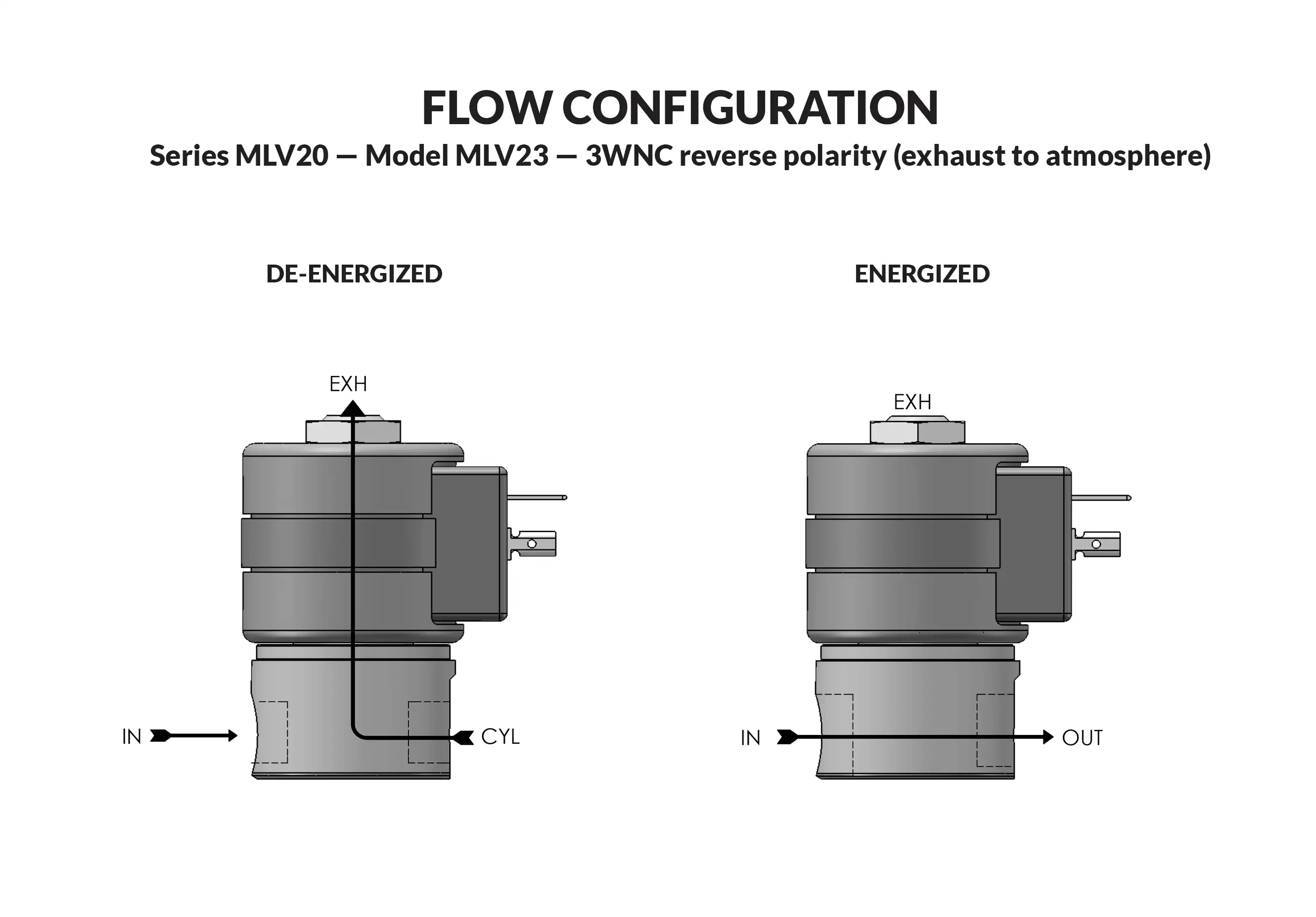

  • FLOW CHART
  • NOMENCLATURE
VALVE SPECIFICATIONS
MAX. OPER. VALVE NUMBER
PRESS. DIFF. ORFICE SIZE CV FACTOR DIN COIL LEADED COIL
DC N.C. N.O. N.C. N.O. 1/8 NPT PORTS 1/4 NPT PORTS 1/8 NPT PORTS 1/4 NPT PORTS
400 1/32 1/32 .024 .024 23GG7DELM 23GG9DELM 23GG7DGLM 23GG9DGLM
150 3/64 1/16 .052 .095 23HJ7DELM 23HJ9DELM 23HJ7DGLM 23HJ9DGLM
100 1/16 1/16 .095 .095 23JJ7DELM 23JJ9DELM 23JJ7DGLM 23JJ9DGLM
100 1/16 3/32 .095 .156 23JK7DELM 23JK9DELM 23JK7DGLM 23JK9DGLM
75 3/32 3/32 .156 .156 23KK7DELM 23KK9DELM 23KK7DGLM 23KK9DGLM
50 1/8 3/32 .214 .156 23NK7DELM 23NK9DELM 23NK7DGLM 23NK9DGLM
20 3/16 3/32 .500 .156 23PK7DELM 23PK9DELM 23PK7DGLM 23PK9DGLM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (23JJ7DELM-12/DC) REPAIR PACK (K23JJDL-DC)

OPERATING CONDITIONS
Media: Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6 to 60V DC
Nominal Power: DC — 10.0 Watts
Coil Construction: Molded Class B with DIN 43650 Form A Connector (Std.), Leadwires (Opt.) For your convenience we have the female DIN style mating connector No. 20-198** available for an additional fee.*
Typical Response Time on Air: Approximate 30 millisecond pulse to energize and de-energize.
Operating Speed: Up to 600 CPM
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8” and 1/4” NPT (other ports available).*
Housing: Leadwires and DIN Style Connector.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 1.2 lb average
Repair Packs: See table above.
Options: Alternate Port Locations, Metering and Alternate Elastomers* * Consult representative or factory for options and specifications.
