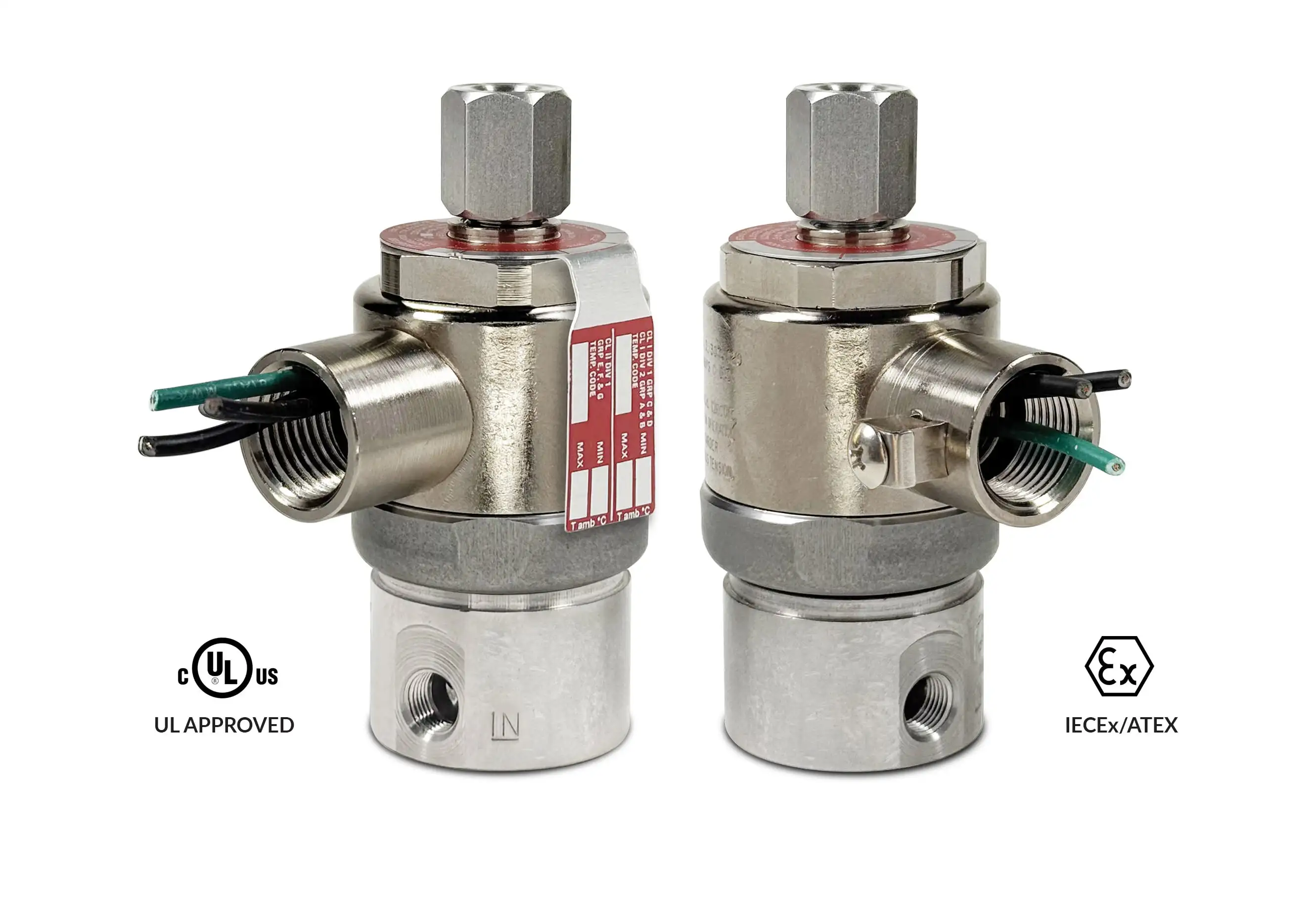

Series 20 Model E23

Hazardous Location
3-Way Normally Closed Valve (piped exhaust)

Peter Paul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.

• Explosion Proof
• The flagship valve initially created for fluid power industry.
• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• It has the greatest amount of options available of all the valves.
• Wide range of orifice sizes from 1/32" to 1/4".

53pipedflow

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

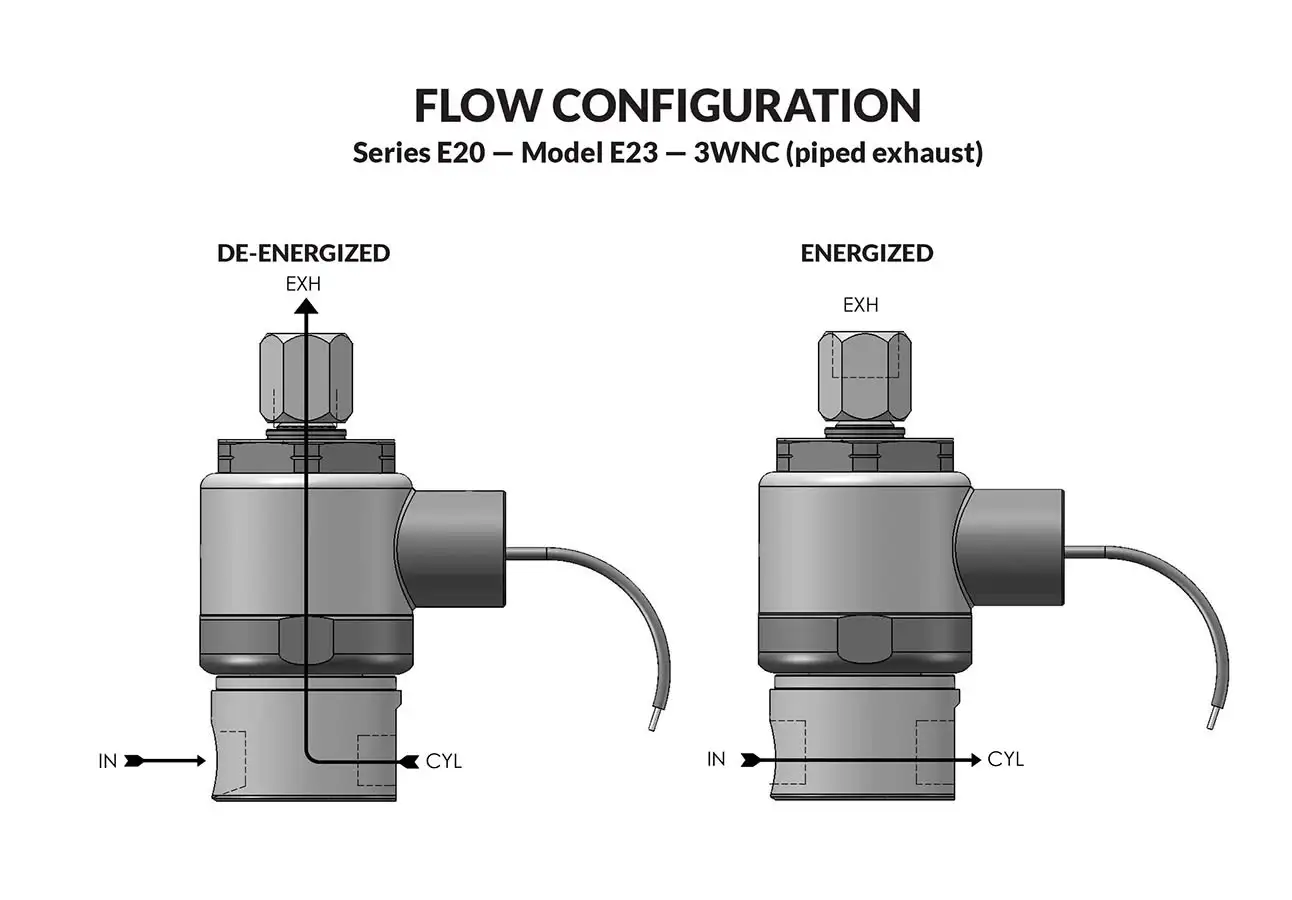

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

+ MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
AC DC N.C. N.O. N.C. N.O. 1/8 NPT PORTS 1/4 NPT PORTS
400 400 1/32 1/32 .024 .024 E23GG7XCCM E23GG9ZCCM
150 (200) 150 (200) 3/64 1/16 .052 .095 E23HJ7XCCM E23HJ9ZCCM
100 (135) 100 (135) 1/16 1/16 .095 .095 E23JJ7XCCM E23JJ9ZCCM
100 (135) 100 (135) 1/16 3/32 .095 .156 E23JK7XCCM E23JK9ZCCM
75 (100) 75 (100) 3/32 3/32 .156 .156 E23KK7XCCM E23KK9ZCCM
50 (70) 50 (70) 1/8 3/32 .284 .156 E23NK7XCCM E23NK9ZCCM
35 (40) 35 (40) 1/8 1/8 .284 .227 E23NN7XCCM ^ E23NN9ZCCM
20 20 3/16 3/32 .500 .156 E23PK7XCCM E23PK9ZCCM
20 20 3/16 1/8 .500 .227 E23PN7XCCM ^ E23PN9ZCCM ^
15 1/4 3/32 .700 .156 E23RK7XCCM E23RK9ZCCM ^
15 1/4 1/8 .700 .227 E23RN7XCCM ^ E23RN9ZCCM ^

^ VALVES WITH 1/8 N.O. ORIFICE ARE NOT UL OR CSA LISTED
+ Ratings in brackets are optional extended ratings; consult factory.

WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E23KK9ZCCM-120/60) REPAIR KIT (2KE23KKZ-AC)

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 7.3 Watts DC — 9.5 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8" and 1/4" NPT (other ports available).
Housing: Flame-Proof construction with 1/2" NPT conduit
Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2 Groups A, B, C, D, E, F, and G.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 1.50 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers*

* Consult representative or factory for options and specifications.

Series 20 Hazardous Location Valves


MODEL E23 1/4-18 NPT
3WNC PIPED EXHAUST
EXPLOSION PROOF

MODEL E23 1/8-27 NPT
3WNC PIPED EXHAUST
EXPLOSION PROOF

MODEL E23 BODY OPTION "E"
3WNC PIPED EXHAUST
EXPLOSION PROOF

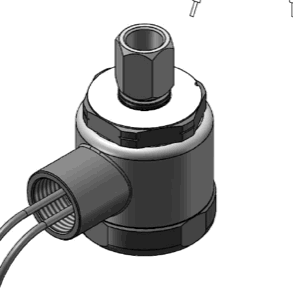

MODEL E23 BODY OPTION "O"
3WNC
EXPLOSION PROOF

MODEL E23 BODY OPTION "R"
3WNC PIPED EXHAUST
EXPLOSION PROOF

MODEL E23 MANUAL OVERRIDE
3WNC PIPED EXHAUST
EXPLOSION PROOF

MODEL E23 METERED BODY
3WNC PIPED EXHAUST
EXPLOSION PROOF
