Page 103 - Peter Paul 2019 Catalog

1/4-18 NPT IN
3.81 96.8
.44 11.1
.88 22.3
2.25 1.88 57.2
1.18 29.9
1/4-18 NPT EXH
2X 10-32 UNF-2B
.31 MFT
.44 11.1 .88 22.3
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
350 350
250 250
175 175
125 125
100 100
ORIFICE SIZE N.O. N.C.
1/16 1/16 3/32 3/32 1/8 1/8 5/32 5/32 3/16 3/16
CV FACTOR N.O. N.C.
.09 .09 .22 .22 .35 .35 .45 .45 .50 .50
GROMMET HOUSING 1/4 NPT PORTS
74JJ9ZGM 74KK9ZGM 74NN9ZGM 74OO9ZGM 74PP9ZGM
CONDUIT HOUSING 1/4 NPT PORTS
74JJ9ZCM 74KK9ZCM 74NN9ZCM 74OO9ZCM 74PP9ZCM
ORDERING INFORMATION:
47.9

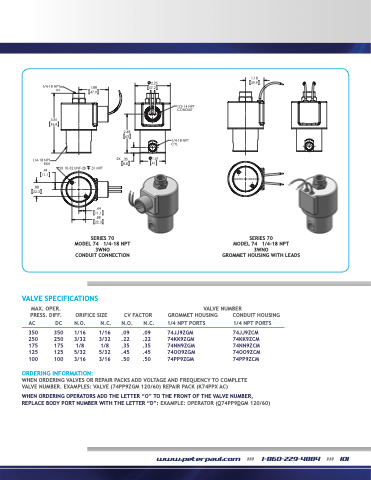

SERIES 70
SERIES 70
SERIES 70
SERIES 70
MODEL 74 1/4-18 NPT
MODEL 74 1/4-18 NPT
MODEL 74 1/4-18 NPT 3W3WNNOO CCOONNDDUITITCCONNECTION
MODEL 74 1/4-18 NPT 3WNO
GROMMEET HOUSIINGGWWITITHHLLEADSS
VALVE NUMBER
2.48 63
2X .35 1.61 8.8 41
1/2-14 NPT CONDUIT
1/4-18 NPT CYL
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (74PP9ZGM 120/60) REPAIR PACK (K74PPX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O74PP9DGM 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 101
