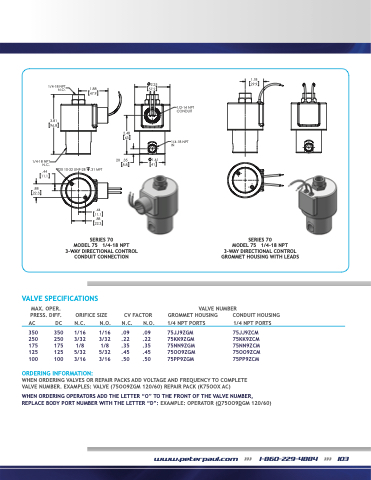

Page 105 - Peter Paul 2019 Catalog

1/4-18 NPT N.O.
3.81 96.8
.44 11.1
.88 22.3
2.25 1.88 57.2
1.18 29.9
1/4-18 NPT N.C.
2X 10-32 UNF-2B
.31 MFT
.44 11.1 .88 22.3
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
AC DC N.C. N.O.
350 350 1/16 1/16 250 250 3/32 3/32 175 175 1/8 1/8 125 125 5/32 5/32 100 100 3/16 3/16
ORDERING INFORMATION:
CV FACTOR N.C. N.O.
.09 .09 .22 .22 .35 .35 .45 .45 .50 .50
GROMMET HOUSING 1/4 NPT PORTS
75JJ9ZGM 75KK9ZGM 75NN9ZGM 75OO9ZGM 75PP9ZGM
CONDUIT HOUSING 1/4 NPT PORTS
75JJ9ZCM 75KK9ZCM 75NN9ZCM 75OO9ZCM 75PP9ZCM
47.9
SERIES 70
SERIES 70
SERIES 70
SERIES 70
MODEL 75 1/4-18 NPT 3-3W-WAAYYDDIRIREECTIOIONAL CONTTROL CCONDUITCONNECTTIION
MODEL 75 1/4-18 NPT 3-W3A-YWDAIRYEDCITRIEOCNTAIOL NCOANLTCRONL TROL
VALVE NUMBER
MODEL 75 1/4-18 NPT
MODEL 75 1/4-18 NPT
2.48 63
2X .35 1.61 8.8 41
1/2-14 NPT CONDUIT
1/4-18 NPT IN
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (75OO9ZGM 120/60) REPAIR PACK (K75OOX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O75OO9DGM 120/60)
GROGMRMOEMT MHOETUSHIONGUSWINITGHWLEITAHDLSEADS
