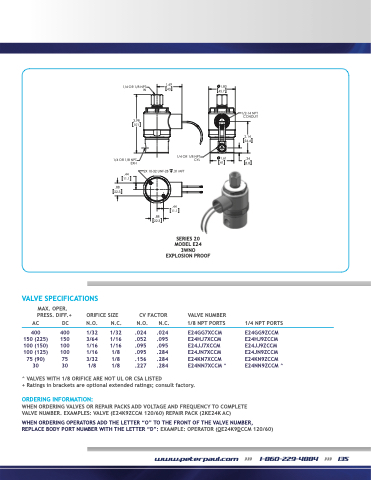

VALVE SPECIFICATIONS
AC
400 150 (225) 100 (150) 100 (125) 75 (90) 30
DC
400
150
100
100
75
30
E24GG7XCCM E24HJ7XCCM E24JJ7XCCM E24JN7XCCM E24KN7XCCM E24NN7XCCM
^
1/4 NPT PORTS
E24GG9ZCCM E24HJ9ZCCM E24JJ9ZCCM E24JN9ZCCM E24KN9ZCCM E24NN9ZCCM ^
MAX. OPER. PRESS. DIFF.+
ORIFICE SIZE N.O. N.C.
1/32 1/32 3/64 1/16 1/16 1/16 1/16 1/8 3/32 1/8 1/8 1/8
CV FACTOR N.O. N.C.
.024 .024 .052 .095 .095 .095 .095 .284 .156 .284 .227 .284
VALVE NUMBER 1/8 NPT PORTS
^ VALVES WITH 1/8 ORIFICE ARE NOT UL OR CSA LISTED
+ Ratings in brackets are optional extended ratings; consult factory.
ORDERING INFORMATION:
1/4 OR 1/8 NPT IN
3.98 101
1/4 OR 1/8 NPT EXH
1.69 43
1.80 45.7
1.61 41
.44 11.1
.88 22.3
2X 10-32 UNF-2B
.88 22.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E24K9ZCCM 120/60) REPAIR PACK (2KE24K AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE24K9DCCM 120/60)
1/4 OR 1/8 NPT CYL
.31 MFT
.44 11.1
1/2-14 NPT CONDUIT
2.14 54.4
.34 8.8
SERIES 20
SERIES 20 MODEL E24
MODEL E24
3-WAY NORMALLY OPEN
3WNO
EXPLOSION PROOF
EXPLOSION PROOF
