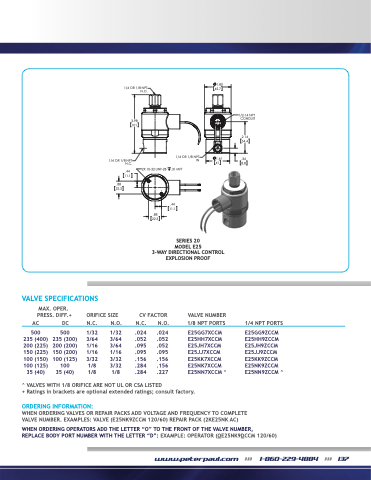

 VALVE SPECIFICATIONS
AC
500 235 (400) 200 (225) 150 (225) 100 (150) 100 (125) 35 (40)
DC
500 235 (300) 200 (200) 150 (200) 100 (125) 100 35 (40)
1/32 1/32 3/64 3/64 1/16 3/64 1/16 1/16 3/32 3/32
1/8 3/32 1/8 1/8
.024 .024 .052 .052 .095 .052 .095 .095 .156 .156 .284 .156 .284 .227
E25GG7XCCM E25HH7XCCM E25JH7XCCM E25JJ7XCCM E25KK7XCCM E25NK7XCCM E25NN7XCCM
^
1/4 NPT PORTS
E25GG9ZCCM E25HH9ZCCM E25JH9ZCCM E25JJ9ZCCM E25KK9ZCCM E25NK9ZCCM E25NN9ZCCM ^
MAX. OPER. PRESS. DIFF.+
ORIFICE SIZE
N.C. N.O. N.C. N.O.
VALVE NUMBER 1/8 NPT PORTS
^ VALVES WITH 1/8 ORIFICE ARE NOT UL OR CSA LISTED
+ Ratings in brackets are optional extended ratings; consult factory.
ORDERING INFORMATION:
1/4 OR 1/8 NPT N.O.
3.98 101
1/4 OR 1/8 NPT N.C.
1/4 OR 1/8 NPT IN
.31 MFT
.44 11.1
1.80 45.7
1.61 41
1/2-14 NPT CONDUIT
2.14 54.4
.34 8.8
.44 11.1
.88 22.3
2X 10-32 UNF-2B
.88 22.3
CV FACTOR
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E25NK9ZCCM 120/60) REPAIR PACK (2KE25NK AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OE25NK9DCCM 120/60)
SERIES 20 SERIESM2O0DEMLOED2E5L E25
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
EXPLOSION PROOF
EXPLOSION PROOF
