P. 191
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
DC GAS ONLY
120
ORIFICE SIZE N.C. N.O.
1/32 1/32
CV FACTOR N.C. N.O.
.022 .020
VALVE NUMBER
ELLW53GG8XCCP
ORDERING INFORMATION:
1/8-27 NPT EXHAUST
1.20 30.5
1.00 25.3
1/8-27 NPT INLET
.60 15.2
3.06 77.8
.59 15
1.50 38.1
2X 8-32 UNC-2B
.23 MFT
.40 10.1
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (ELLW53GGXCCP 120/60) REPAIR PACK (KELLW53GGX AC)
WHEN ORDERING OPERATORS ADD THE LETTER āOā TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER āDā: EXAMPLE: OPERATOR (OELLW53GGDCCP 120/60)
1/8-27 NPT CYL
2X .30 7.5
1/2-14 NPT CONDUIT
1.57 39.9

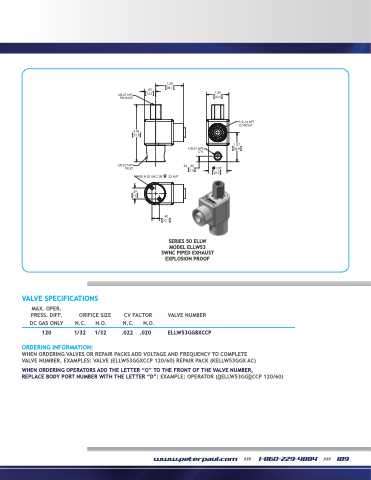

SERIES 50 ELLW
SERIES 50
MODEL ELLW53
MODEL EW53
3WNC PIPED EXHAUST
3WNC PIPED EXHAUST
EXPLOSION PROOF
EXPLOSION PROOF
www.peterpaul.com >>> 1-860-229-4884 >>> 189
