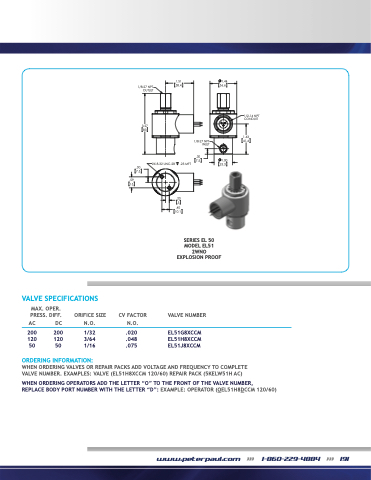

Page 193 - Peter Paul 2019 Catalog

1/8-27 NPT OUTLET
3.27
.30 7.5
.59 15
1.51 38.4
1.44 36.6
1.00 25.3
83
1/8-27 NPT INLET
.30 7.5
1/2-14 NPT CONDUIT
1.63 41.4
2X 8-32 UNC-2B
.23 MFT
.20 5 .40 10.1
SERIES EL 50
SERIES 50
MODEL EL51
MODEL EL51
2WNO
2WNO
EXPLOSION PROOF
EXPLOSION PROOF
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
200 200 120 120 50 50
ORIFICE SIZE N.O.
1/32 3/64 1/16
CV FACTOR N.O.
.020 .048 .075
VALVE NUMBER
EL51G8XCCM EL51H8XCCM EL51J8XCCM
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EL51H8XCCM 120/60) REPAIR PACK (5KELW51H AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEL51H8DCCM 120/60)
