1.51 38.4
1.44 36.6
2.47 62.7
1/8-27 NPT OUTLET
.59 15
.30 7.5
1/8-27 NPT INLET
1/2-14 NPT CONDUIT
1.63 41.4
.30
7.5 1.00
25.3
2X 8-32 UNC-2B
.23 MFT
.20 5 .40 10.1

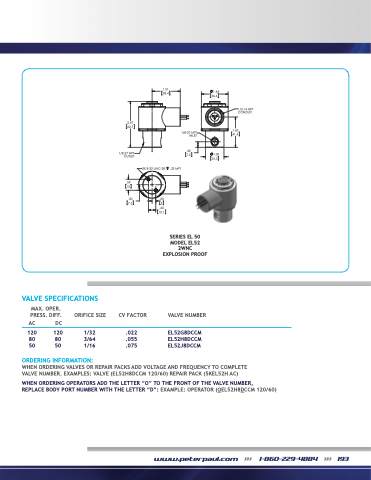

SERIES EL 50
SERIES 50 MOMDOELDEL5EL252
2W2WNCNC EXPLOSION PROOF
EXPLOSION PROOF
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
120 120 80 80 50 50
ORIFICE SIZE
1/32 3/64 1/16
CV FACTOR
.022 .055 .075
VALVE NUMBER
EL52G8DCCM EL52H8DCCM EL52J8DCCM
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EL52H8DCCM 120/60) REPAIR PACK (5KEL52H AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEL52H8DCCM 120/60)
