Page 205 - Peter Paul 2019 Catalog

1.51 EXHAUST 38.4
1.44 36.6
1/8-27 NPT
3.27 83
1/8-27 NPT INLET
.59 15
1/8-27 NPT CYL
1/2-14 NPT CONDUIT
1.63 41.4
2X 8-32 UNC-2B
2X .23 MFT
.40 10.1
.30
7.5 1.00
25.3
MAX. OPER. PRESS. DIFF.
DC
120
ORIFICE SIZE N.C. N.O.
1/32 1/32
CV FACTOR N.C. N.O.
.022 .022

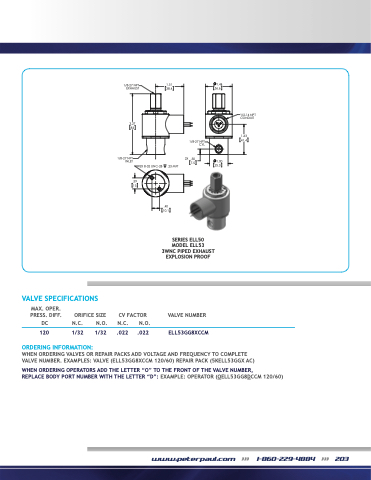

SERIES ELL50
SERIES 50 MODEL ELLL5533
VALVE SPECIFICATIONS
EXPLOSION PROOF
VALVE NUMBER
ELL53GG8XCCM
3W3WNNCCPPIPIPEEDDEEXXHHAUSSTT EXPLOSION PROOF
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (ELL53GG8XCCM 120/60) REPAIR PACK (5KELL53GGX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OELL53GG8DCCM 120/60)
