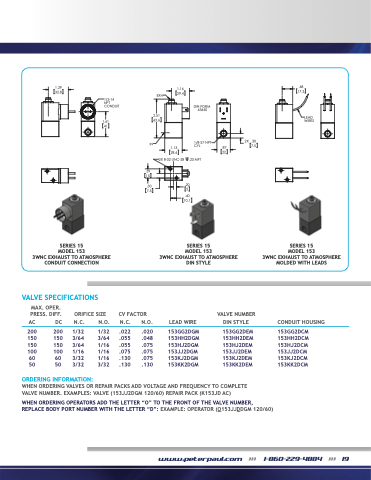

Page 21 - Peter Paul 2019 Catalog

1.29 32.8
1.16 29.4
1.13 28.6
2X 8-32 UNC-2B
.40 10.1
.68 17.3
1/2-14 NPT CONDUIT
EXH
2.51 63.6
DIN FORM 43650
1/8-27 NPT CYL
.23 MFT
.20 5
1.61 41
LEAD WIRES
IN
.59 15
.30 7.5
2X
.30 7.5
.87 22
SERIES 15
SERIES 15
SERIES 15
SERIES 15 MMOODDEEL 1533
SERIES 15 MODDEEL 1L51353
SERIES 15 MODMEOLD1EL51353
3-WAY NORMALLY CLOSED
3-WAY NORMALLY CLOSED
3-WAY NORMALLY CLOSED
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
EXHAUST TO ATMOSPHERE CONDDUUITICTOCILOCNONNENCETCITOION
EXHAUST TO ATMOSPHERE DIN STYLE CDOINIL SCTOYNLNECTION
EXHAUST TO ATMOSPHERE MOMLODLEDDEDWCIOTIHL WLIETHALDESADS
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
CV FACTOR
VALVE NUMBER DIN STYLE
153GG2DEM 153HH2DEM 153HJ2DEM 153JJ2DEM 153KJ2DEM 153KK2DEM
AC DC N.C. N.O. N.C.
N.O.
.020 .048 .075 .075 .075 .130
LEAD WIRE
153GG2DGM 153HH2DGM 153HJ2DGM 153JJ2DGM 153KJ2DGM 153KK2DGM
CONDUIT HOUSING
153GG2DCM 153HH2DCM 153HJ2DCM 153JJ2DCM 153KJ2DCM 153KK2DCM
200
150
150
100
60
50
200 1/32 1/32 150 3/64 3/64 150 3/64 1/16 100 1/16 1/16
60 3/32 1/16 50 3/32 3/32
.022 .055 .055 .075 .130 .130
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (153JJ2DGM 120/60) REPAIR PACK (K153JD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O153JJDDGM 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 19
