P. 247

 1.05 26.7
1/8-27 NPT OUTLET
.59 15
1.38 35.1
2X 8-32 UNC-2B
.71 18
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF. GAS
DC
120
ORIFICE SIZE
N.C.
1/32
CV FACTOR
N.C.
.022
VALVE NUMBER
ORDERING INFORMATION:
2.38 60.5
1/2-14 NPT CONDUIT
1.50 38
.30 .20 7.5 5
.40 10.1

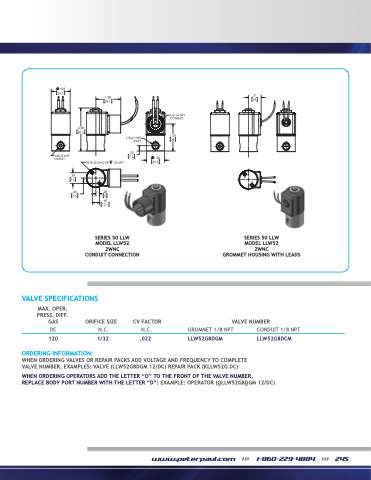

SERIES 50
SERIES 50 MODEL LLW52
MODEL LLW52
SERIES 50 LLW
SERIES 50 LLW
2WNC
2WNC
MODEL LLW52
MODEL LLW52
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
2WNC CONDUIT CONNECTION
2WNC
GROMMET HOUSING WITH LEADS
.23 MFT
1/8-27 NPT INLET
.30 7.5
1.00 25.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (LLW52G8DGM 12/DC) REPAIR PACK (KLLW52G DC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OLLW52G8DGM 12/DC)
GROMMET 1/8 NPT
LLW52G8DGM
CONDUIT 1/8 NPT
LLW52G8DCM
