 1.05 26.7
1/8-27 NPT INLET
.59 15
.30 7.5
1.05 26.7
1.38 EXHAUST 35.1
2.39 60.8
.71 18
7.5 1.00 2X 8-32 UNC-2B .23 MFT 25.3

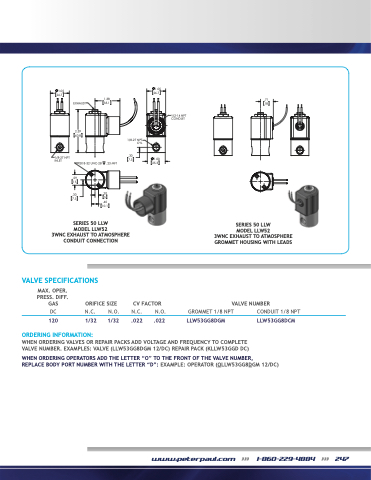

SERIES 50 LLW MODEL LLW52
SERIES 50 LLW
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
GAS ORIFICE SIZE
DC N.C. N.O.
120 1/32 1/32
ORDERING INFORMATION:
CV FACTOR
N.C. N.O.
.022 .022
GROMMET 1/8 NPT
LLW53GG8DGM
CONDUIT 1/8 NPT
LLW53GG8DCM
.20 5 .40 10.1
SERIES 50
SERIES 50
MODEL LW53
MODEL LW53
3WNC EXHAUST TO ATMOSPHERE CONDUIT CONNECTION
3WNC EXHAUST TO ATMOSPHERE GROMMET HOUSING WITH LEADS
VALVE NUMBER
1/8-27 NPT CYL
.30
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (LLW53GG8DGM 12/DC) REPAIR PACK (KLLW53GGD DC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OLLW53GG8DGM 12/DC)
1/2-14 NPT CONDUIT
MODEL LLW52
