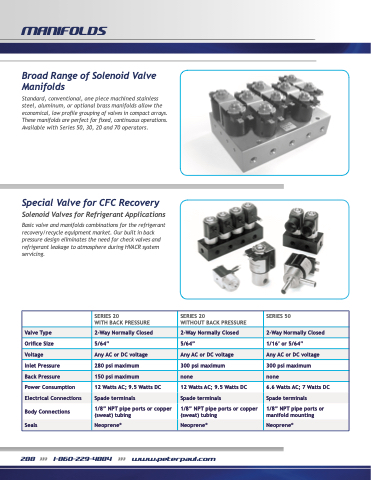

MANIFOLDS
Broad Range of Solenoid Valve
Manifolds
Standard, conventional, one piece machined stainless steel, aluminum, or optional brass manifolds allow the economical, low profile grouping of valves in compact arrays. These manifolds are perfect for fixed, continuous operations. Available with Series 50, 30, 20 and 70 operators.
Special Valve for CFC Recovery
Solenoid Valves for Refrigerant Applications
Basic valve and manifolds combinations for the refrigerant recovery/recycle equipment market. Our built in back pressure design eliminates the need for check valves and refrigerant leakage to atmosphere during HVACR system servicing.
SERIES 20
WITH BACK PRESSURE
SERIES 20
WITHOUT BACK PRESSURE
SERIES 50
Valve Type
2-Way Normally Closed
2-Way Normally Closed
2-Way Normally Closed
Orifice Size
5/64”
5/64”
1/16’ or 5/64”
Voltage
Any AC or DC voltage
Any AC or DC voltage
Any AC or DC voltage
Inlet Pressure
280 psi maximum
300 psi maximum
300 psi maximum
Back Pressure
150 psi maximum
none
none
Power Consumption
12 Watts AC; 9.5 Watts DC
12 Watts AC; 9.5 Watts DC
6.6 Watts AC; 7 Watts DC
Electrical Connections
Spade terminals
Spade terminals
Spade terminals
Body Connections
1/8” NPT pipe ports or copper (sweat) tubing
1/8” NPT pipe ports or copper (sweat) tubing
1/8” NPT pipe ports or manifold mounting
Seals
Neoprene®
Neoprene®
Neoprene®
288 >>> 1-860-229-4884 >>> www.peterpaul.com
