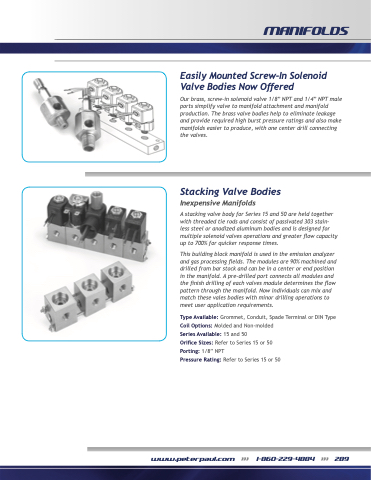

MANIFOLDS
Easily Mounted Screw-In Solenoid
Valve Bodies Now Offered
Our brass, screw-in solenoid valve 1/8” NPT and 1/4” NPT male ports simplify valve to manifold attachment and manifold production. The brass valve bodies help to eliminate leakage and provide required high burst pressure ratings and also make manifolds easier to produce, with one center drill connecting the valves.
Stacking Valve Bodies
Inexpensive Manifolds
A stacking valve body for Series 15 and 50 are held together with threaded tie rods and consist of passivated 303 stain- less steel or anodized aluminum bodies and is designed for multiple solenoid valves operations and greater flow capacity up to 700% for quicker response times.
This building block manifold is used in the emission analyzer and gas processing fields. The modules are 90% machined and drilled from bar stock and can be in a center or end position in the manifold. A pre-drilled port connects all modules and the finish drilling of each valves module determines the flow pattern through the manifold. Now individuals can mix and match these vales bodies with minor drilling operations to meet user application requirements.
Type Available: Grommet, Conduit, Spade Terminal or DIN Type Coil Options: Molded and Non-molded
Series Available: 15 and 50
Orifice Sizes: Refer to Series 15 or 50
Porting: 1/8” NPT
Pressure Rating: Refer to Series 15 or 50
