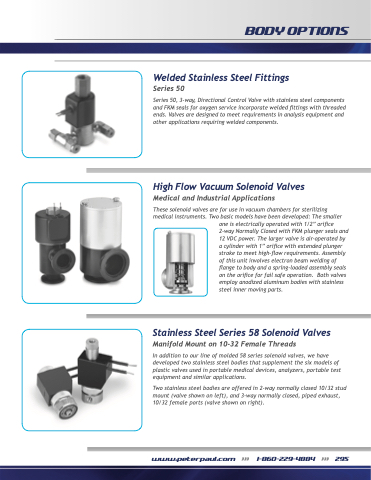

 BODY OPTIONS
          FPO FPO
Welded Stainless Steel Fittings
Series 50
Series 50, 3-way, Directional Control Valve with stainless steel components and FKM seals for oxygen service incorporate welded fittings with threaded ends. Valves are designed to meet requirements in analysis equipment and other applications requiring welded components.
High Flow Vacuum Solenoid Valves
Medical and Industrial Applications
These solenoid valves are for use in vacuum chambers for sterilizing medical instruments. Two basic models have been developed: The smaller
one is electrically operated with 1/2” orifice 2-way Normally Closed with FKM plunger seals and 12 VDC power. The larger valve is air-operated by a cylinder with 1” orifice with extended plunger stroke to meet high-flow requirements. Assembly of this unit involves electron beam welding of flange to body and a spring-loaded assembly seals on the orifice for fail safe operation. Both valves employ anodized aluminum bodies with stainless steel inner moving parts.
Stainless Steel Series 58 Solenoid Valves
Manifold Mount on 10-32 Female Threads
In addition to our line of molded 58 series solenoid valves, we have developed two stainless steel bodies that supplement the six models of plastic valves used in portable medical devices, analyzers, portable test equipment and similar applications.
Two stainless steel bodies are offered in 2-way normally closed 10/32 stud mount (valve shown on left), and 3-way normally closed, piped exhaust, 10/32 female ports (valve shown on right).
