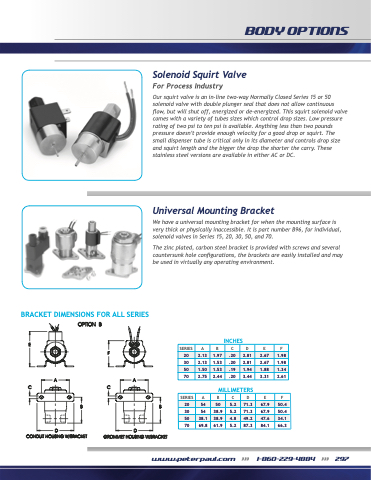

Page 299 - Peter Paul 2019 Catalog

BODY OPTIONS
FPO
BRACKET DIMENSIONS FOR ALL SERIES
Solenoid Squirt Valve
For Process Industry
Our squirt valve is an in-line two-way Normally Closed Series 15 or 50 solenoid valve with double plunger seal that does not allow continuous flow, but will shut off, energized or de-energized. This squirt solenoid valve comes with a variety of tubes sizes which control drop sizes. Low pressure rating of two psi to ten psi is available. Anything less than two pounds pressure doesn’t provide enough velocity for a good drop or squirt. The small dispenser tube is critical only in its diameter and controls drop size and squirt length and the bigger the drop the shorter the carry. These stainless steel versions are available in either AC or DC.
Universal Mounting Bracket
We have a universal mounting bracket for when the mounting surface is very thick or physically inaccessible. It is part number B96, for individual, solenoid valves in Series 15, 20, 30, 50, and 70.
The zinc plated, carbon steel bracket is provided with screws and several countersunk hole configurations, the brackets are easily installed and may be used in virtually any operating environment.
E
OPTION B
F
INCHES
MILLIMETERS
SERIES
A
B
C
D
E
F
20
2.13
1.97
.20
2.81
2.67
1.98
30
2.13
1.53
.20
2.81
2.67
1.98
50
1.50
1.53
.19
1.94
1.88
1.34
70
2.75
2.44
.20
3.44
3.31
2.61
AA CC
BB
DD
CONDUIT HOUSING W/BRACKET GROMMET HOUSING W/BRACKET
SERIES
A
B
C
D
E
F
20
54
50
5.2
71.3
67.9
50.4
30
54
38.9
5.2
71.3
67.9
50.4
50
38.1
38.9
4.8
49.2
47.6
34.1
70
69.8
61.9
5.2
87.3
84.1
66.3
www.peterpaul.com >>> 1-860-229-4884 >>> 297
