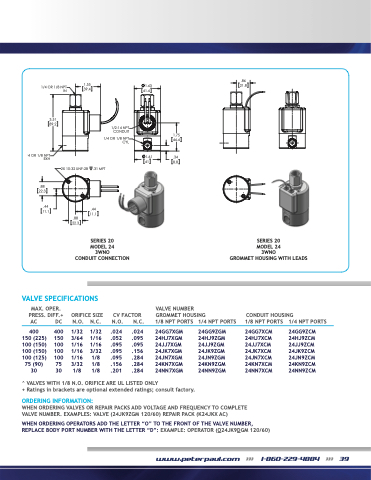

Page 41 - Peter Paul 2019 Catalog

3.51 89.2
1/4 OR 1/8 NPT EXH
.88 22.3
.44 11.1
1/2-14 NPT CONDUIT
1/4 OR 1/8 NPT CYL
.31 MFT
.44 11.1
.88 22.3
1.75 44.4
.34 8.8
1/4 OR 1/8 NPT IN
1.55 39.4
1.63 41.4
1.61 41
.86 21.8
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.+ AC DC
400 400 150 (225) 150 100 (150) 100 100 (150) 100 100 (125) 100
75 (90) 75 30 30
ORIFICE SIZE
CV FACTOR N.O. N.C.
.024 .024 .052 .095 .095 .095 .095 .156 .095 .284 .156 .284 .201 .284
VALVE NUMBER GROMMET HOUSING
CONDUIT HOUSING
2X 10-32 UNF-2B
N.O.
1/32 3/64 1/16 1/16 1/16 3/32 1/8
N.C.
1/32 1/16 1/16 3/32 1/8 1/8 1/8
1/8 NPT PORTS
24GG7XGM 24HJ7XGM 24JJ7XGM 24JK7XGM 24JN7XGM 24KN7XGM 24NN7XGM
1/4 NPT PORTS
24GG9ZGM 24HJ9ZGM 24JJ9ZGM 24JK9ZGM 24JN9ZGM 24KN9ZGM 24NN9ZGM
1/8 NPT PORTS
24GG7XCM 24HJ7XCM 24JJ7XCM 24JK7XCM 24JN7XCM 24KN7XCM 24NN7XCM
1/4 NPT PORTS
24GG9ZCM 24HJ9ZCM 24JJ9ZCM 24JK9ZCM 24JN9ZCM 24KN9ZCM 24NN9ZCM
SERIES 20
SERIES 20
SERIES 20 MODEL 24
SERIES 20 MODEL 24
MODEL 24
MODEL 24
3-WAY NORMALLY OPEN
3-WAY NORMALLY OPEN
3WNO
3WNO
CONDUIT COIL CONNECTION
GROMMET HOUSING WITH LEADS
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY
+ Ratings in brackets are optional extended ratings; consult factory.
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (24JK9ZGM 120/60) REPAIR PACK (K24JKX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O24JK9DGM 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 39
