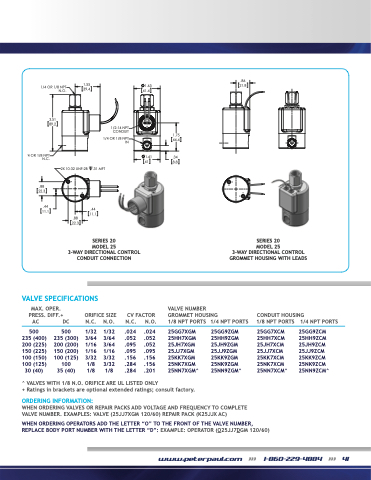

Page 43 - Peter Paul 2019 Catalog

3.51 89.2
1/4 OR 1/8 NPT N.C.
.88 22.3
.44 11.1
1/2-14 NPT CONDUIT
1/4 OR 1/8 NPT IN
.31 MFT
.44 11.1
.88 22.3
1.75 44.4
.34 8.8
1/4 OR 1/8 NPT N.O.
1.55 39.4
1.63 41.4
1.61 41
.86 21.8
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.+
ORIFICE SIZE N.C. N.O.
1/32 1/32 3/64 3/64 1/16 3/64 1/16 1/16 3/32 3/32
1/8 3/32 1/8 1/8
CV FACTOR N.C. N.O.
.024 .024 .052 .052 .095 .052 .095 .095 .156 .156 .284 .156 .284 .201
VALVE NUMBER GROMMET HOUSING
CONDUIT HOUSING
AC
500 235 (400) 200 (225) 150 (225) 100 (150) 100 (125) 30 (40)
DC
500 235 (300) 200 (200) 150 (200) 100 (125) 100 35 (40)
1/8 NPT PORTS
25GG7XGM 25HH7XGM 25JH7XGM 25JJ7XGM 25KK7XGM 25NK7XGM 25NN7XGM^
1/4 NPT PORTS
25GG9ZGM 25HH9ZGM 25JH9ZGM 25JJ9ZGM 25KK9ZGM 25NK9ZGM 25NN9ZGM^
1/8 NPT PORTS
25GG7XCM 25HH7XCM 25JH7XCM 25JJ7XCM 25KK7XCM 25NK7XCM 25NN7XCM^
1/4 NPT PORTS
25GG9ZCM 25HH9ZCM 25JH9ZCM 25JJ9ZCM 25KK9ZCM 25NK9ZCM 25NN9ZCM^
2X 10-32 UNF-2B
SERIES 20
SERIES 20
SERIES 20 MODEL 25
SERIES 20 MODEL 25
MODEL 25
MODEL 25
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
CONDUIT COIL CONNECTION
GROMMET HOUSING WITH LEADS
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY
+ Ratings in brackets are optional extended ratings; consult factory.
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (25JJ7XGM 120/60) REPAIR PACK (K25JJX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O25JJ7DGM 120/60)
