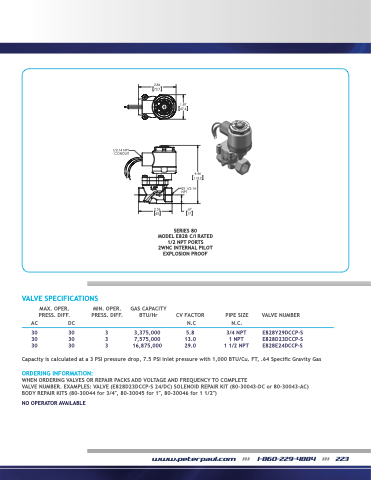

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
30 30 30 30 30 30
MIN. OPER. PRESS. DIFF.
3 3 3
GAS CAPACITY BTU/Hr
3,375,000
7,575,000 16,875,000
CV FACTOR N.C
5.8 13.0 29.0
PIPE SIZE N.C.
3/4 NPT 1 NPT
1 1/2 NPT
VALVE NUMBER
E828Y29DCCP-S E828D23DCCP-S E828E24DCCP-S
1/2-14 NPT CONDUIT
1.87 47.6
4.46 113.2
2X 1/2-14 NPT
2.86 72.7
2.56 .67 65 17
SERIES 80 MODEL E828 C/I
SERIES 80
1/2" NPT PORTS
MODEL E828 C/I RATED
2WNC INTERNAL PILOT
1/2 NPT PORTS
EXPLOSION PROOF
2WNC INTERNAL PILOT EXPLOSION PROOF
Capacity is calculated at a 3 PSI pressure drop, 7.5 PSI inlet pressure with 1,000 BTU/Cu. FT, .64 Specific Gravity Gas
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E828D23DCCP-S 24/DC) SOLENOID REPAIR KIT (80-30043-DC or 80-30043-AC) BODY REPAIR KITS (80-30044 for 3/4′′, 80-30045 for 1′′, 80-30046 for 1 1/2′′)
NO OPERATOR AVAILABLE
