4.66 118.2
1/2-14 NPT CONDUIT CONNECTION
2.25 57.2
.71 18.1
1.43 36.3
1/2-14 NPT
.60 15.2
2x 1/4-20 UNC - 2B
1/2-14 NPT IN
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
60 60
MIN. OPER. PRESS. DIFF.
N.C.
0
GAS CAPACITY BTU/HR
N.C.
2,751,000
CV FACTOR
3.0
PIPE SIZE
1/2 NPT
VALVE NUMBER
E829B11DCCP-SC
ORDERING INFORMATION:
OUT
.83 21
.41 10.5

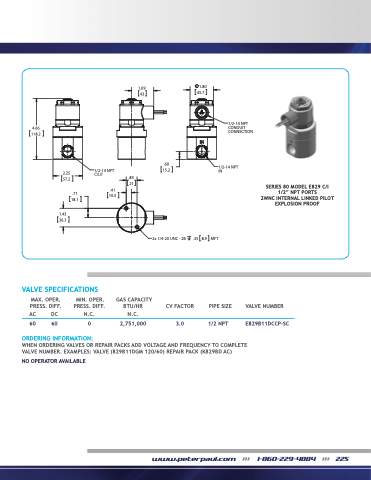

SERIES 80 MODEL E829 C/I
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (829B11DGM 120/60) REPAIR PACK (K829BD AC)
NO OPERATOR AVAILABLE
1.69 43
1.80 45.7
.35
8.9
MFT
www.peterpaul.com >>> 1-860-229-4884 >>> 225
SERIES 80 MODEL E829 C/I
1/2” NPT PORTS
1/2" NPT PORTS
2WNC INTERNAL LINKED PILOT 2WNC INETXPELRONSAIOLNLPIRNOKOEFD PILOT
EXPLOSION PROOF
