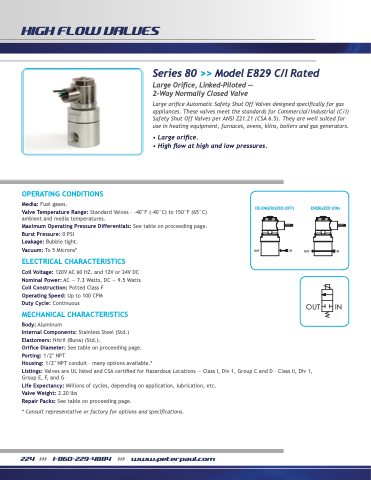

   HIGH FLOW VALVES
   Series 80 >> Model E829 C/I Rated Large Orifice, Linked-Piloted —
2-Way Normally Closed Valve
Large orifice Automatic Safety Shut Off Valves designed specifically for gas appliances. These valves meet the standards for Commercial/Industrial (C/I) Safety Shut Off Valves per ANSI Z21.21 (CSA 6.5). They are well suited for use in heating equipment, furnaces, ovens, kilns, boilers and gas generators.
 • Large orifice.
• High flow at high and low pressures.
    OPERATING CONDITIONS
Media: Fuel gases.
Valve Temperature Range: Standard Valves – -40°F (-40°C) to 150°F (65°C)
ambient and media temperatures.
Maximum Operating Pressure Differentials: See table on proceeding page. Burst Pressure: 0 PSI
Leakage: Bubble tight.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 120V AC 60 HZ. and 12V or 24V DC Nominal Power: AC — 7.3 Watts, DC — 9.5 Watts Coil Construction: Potted Class F
Operating Speed: Up to 100 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
DE-ENGERGIZED (OFF)
OUT IN
ENERGIZED (ON)
OUT IN
OUT   IN
                                                                                                                               Body: Aluminum
Internal Components: Stainless Steel (Std.)
Elastomers: Nitril (Buna) (Std.).
Orifice Diameter: See table on proceeding page.
Porting: 1/2′′ NPT
Housing: 1/2′′ NPT conduit – many options available.*
Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 2.20 lbs
Repair Packs: See table on proceeding page.
* Consult representative or factory for options and specifications.
