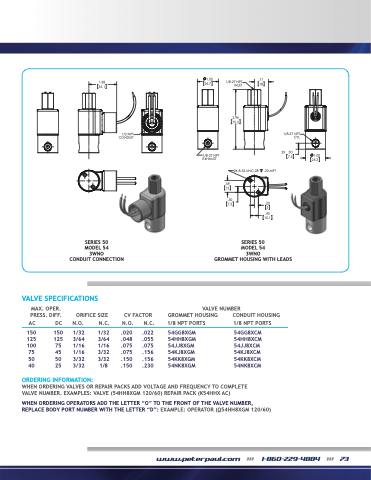

VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
AC DC N.O. N.C.
CV FACTOR N.O. N.C.
.020 .022 .048 .055 .075 .075 .075 .156 .150 .156 .150 .230
GROMMET HOUSING 1/8 NPT PORTS
54GG8XGM 54HH8XGM 54JJ8XGM 54KJ8XGM 54KK8XGM 54NK8XGM
CONDUIT HOUSING 1/8 NPT PORTS
54GG8XCM 54HH8XCM 54JJ8XCM 54KJ8XCM 54KK8XCM 54NK8XCM
150
125
100
75
50
40
150 1/32 1/32 125 3/64 3/64 75 1/16 1/16 45 1/16 3/32 50 3/32 3/32 25 3/32 1/8
ORDERING INFORMATION:
SERIES 50
SERIES 50
SERIES 50
SERIES 50
MODEL 54
MODEL 54
MODEL 54
MODEL 54
3WNO
3WNO
3WNO
3WNO
CONDUIT CONNECTION
GROMMET WITH LEADS
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
VALVE NUMBER
1.38 35.1
1.05 26.7
1/8-27 NPT EXHAUST
1/8-27 NPT INLET
.71 18
1/2 NPT CONDUIT
2.96 75.2
2X 8-32 UNC-2B
1/8-27 NPT CYL
2X .30 7.5
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (54HH8XGM 120/60) REPAIR PACK (K54HHX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O54HH8XGM 120/60)
.59 15
.30 7.5
.23 MFT
.20 5
.40 10.1
