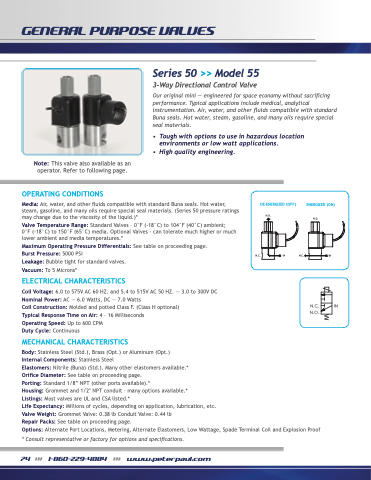

P. 76

   GENERAL PURPOSE VALVES
   Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Series 50 >> Model 55
3-Way Directional Control Valve
Our original mini — engineered for space economy without sacrificing performance. Typical applications include medical, analytical instrumentation. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.
 • Tough with options to use in hazardous location environments or low watt applications.
• High quality engineering.
     Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves - can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page. Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6.0 to 575V AC 60 HZ. and 5.4 to 515V AC 50 HZ. — 3.0 to 300V DC Nominal Power: AC — 6.0 Watts, DC — 7.0 Watts
Coil Construction: Molded and potted Class F. (Class H optional)
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.) Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.* Orifice Diameter: See table on proceeding page.
DE-ENERGIZED (OFF)
ENERGIZED (ON)
N.O.
IN
N.C.         IN N.O.
N.O.
                                                                                                 N.C.
IN
N.C.
                                      Porting: Standard 1/8” NPT (other ports available).*
Housing: Grommet and 1/2′′ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.38 lb Conduit Valve: 0.44 lb
Repair Packs: See table on proceeding page.
Options: Alternate Port Locations, Metering, Alternate Elastomers, Low Wattage, Spade Terminal Coil and Explosion Proof
* Consult representative or factory for options and specifications.
