1.05 26.7
1/8-27 NPT N.C.
.59 15
.30 7.5
CONDUIT CONNECTION
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
AC DC N.C. N.O.
300 200 1/32 200 100 3/64 100 50 1/16
75 25 3/32 75 40 3/32 45 25 1/8
ORDERING INFORMATION:
1/32 3/64 1/16 1/16 3/32 3/32
GROMMET HOUSING 1/8 NPT PORTS
55GG8XGM 55HH8XGM 55JJ8XGM 55KJ8XGM 55KK8XGM 55NK8XGM
CONDUIT HOUSING 1/8 NPT PORTS
55GG8XCM 55HH8XCM 55JJ8XCM 55KJ8XCM 55KK8XCM 55NK8XCM
1/8-27 NPT N.O.
2.96 75.2
2X 8-32 UNC-2B
1/2-14 NPT CONDUIT
1.38 35.1
.71 18
.23 MFT
.20 5
.40 10.1

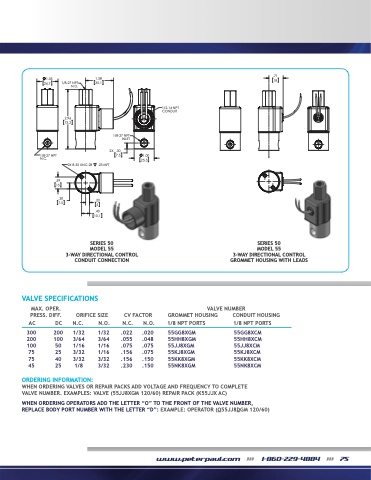

SERIES 50
SERIES 50
SERIES 50
SERIES 50
MODEL 55
MODEL 55
MODEL 55
MODEL 55
3-WAY DIRECTIONAL CONTROL
3-WAY DIRECTIONAL CONTROL
3W DIRECTIONAL CONTROL
3W DIRECTIONAL CONTROL
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
1/8-27 NPT INLET
2X .30
7.5 1.00
25.3
CV FACTOR N.C. N.O.
.022 .020 .055 .048 .075 .075 .156 .075 .156 .150 .230 .150
VALVE NUMBER
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (55JJ8XGM 120/60) REPAIR PACK (K55JJX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O55JJ8DGM 120/60)
GROMMET HOUSING WITH LEADS
www.peterpaul.com >>> 1-860-229-4884 >>> 75
