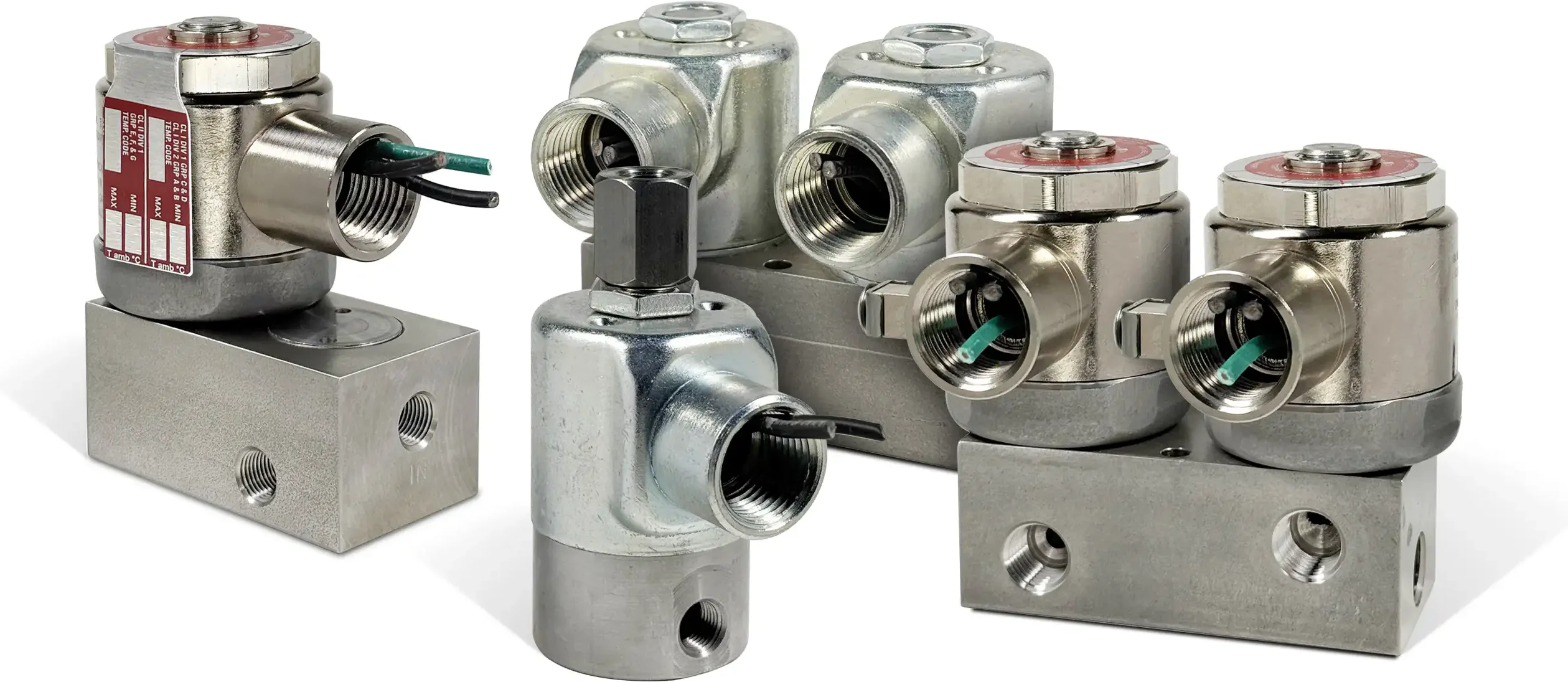

High Pressure Valves

PeterPaul high pressure valves operate with a pressure between 1000 and 3000 PSI. Medical, laboratory, instrumentation and industrial companies, etc. that require high pressure bottled gas with media such as O2, CO2 and compressed Nitrogen use our valve in various applications.

Media pressures available to 6000 PSI
Kel-F pin sealing element
Available in explosion proof
Wide range of options available

2-Way Normally Open High Pressure Valves

PeterPaul single orifice valves in which the orifice is closed in the energized position and no flow can exist between the inlet and outlet ports.

Series/Model	Certification	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/H21		1/8" or 1/4" NPT	0 - 2000	0.01	3.48 x 1.69
20/EH21	North AmericanIECEx/ATEX	1/8" NPT	0 - 3000	.022 - .084	3.42 x 2.69

2-Way Normally Closed High Pressure Valves

PeterPaul single orifice valves in which the orifice is closed in the de-energized position and no flow can exist between the inlet and outlet ports.

Series/Model	Certification	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/H22		1/8" or 1/4" NPT	0 - 5000	.010 - .100	2.75 x 1.63
20/EH22	North AmericanIECEx/ATEX	1/8" or 1/4" NPT	0 - 5000	.010 - .100	3.25 x 2.63

3-Way Normally Closed High Pressure Valves (exhaust to atmosphere)

PeterPaul dual operator valves that allow the same media control as a three way normally closed single operator valve but at much higher pressure ratings.

Series/Model	Certification	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/H23		1/4" NPT	0 - 3000	.022 - .100	3.44 x 3.81
20/EH23	North AmericanIECEx/ATEX	1/4" NPT	0 - 3000	.022 - .100	3.44 x 3.81

3-Way Normally Closed High Pressure Valves (piped exhaust)

PeterPaul dual operator valves that allow the same media control as a three way normally closed single operator valve but at much higher pressure ratings.

Series/Model	Certification	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/H23		1/4" NPT	0 - 3000	.022 - .100	3.44 x 3.81
20/EH23	North AmericanIECEx/ATEX	1/4" NPT	0 - 3000	.022 - .100	3.44 x 3.81

3-Way Normally Open High Pressure Valves

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between exhaust and cylinder ports but flow does exist between inlet and cylinder ports.

Series/Model	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/H24	1/8" or 1/4" NPT	0 - 1000	.010	3.48 x 1.63
