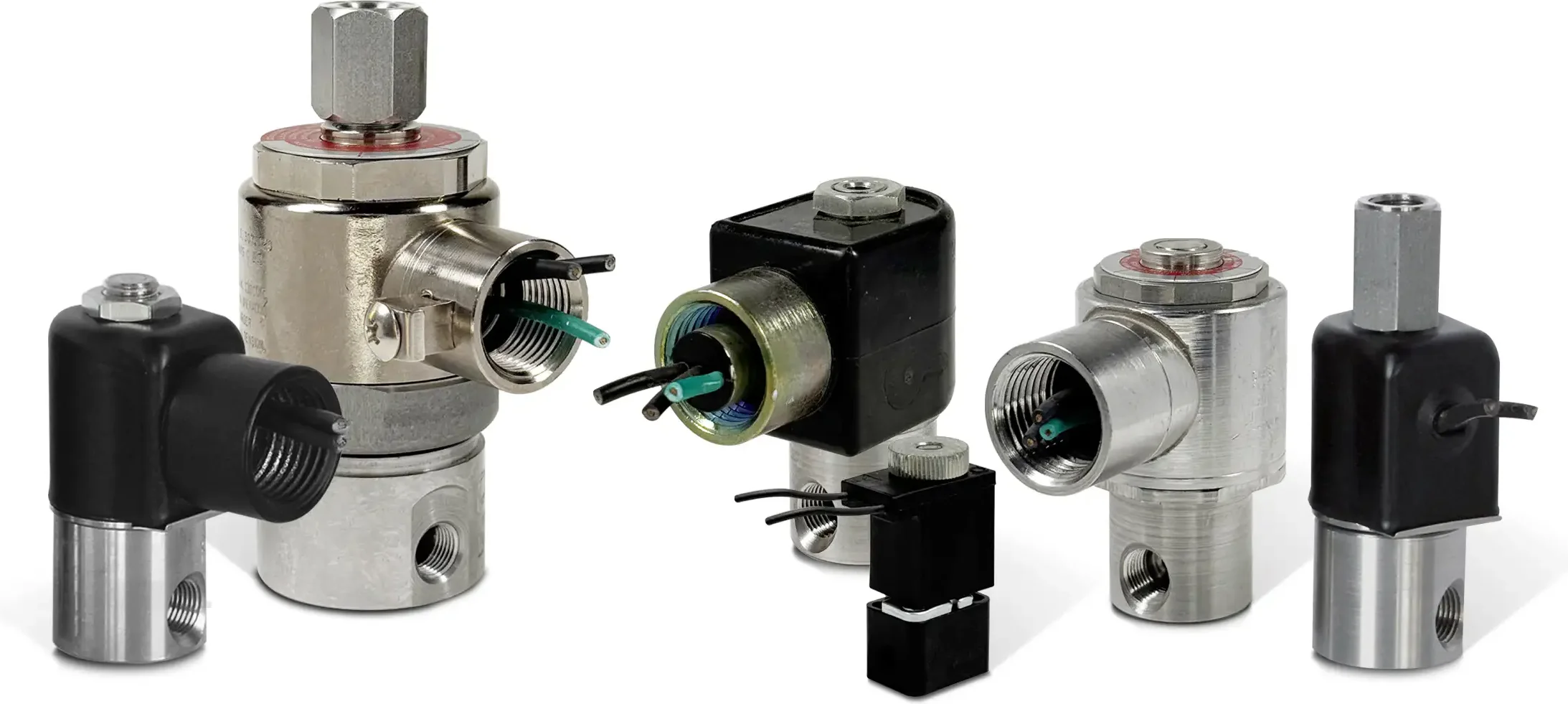

2-Way Normally Open Low Watt Valves PeterPaul single orifice valves in which the orifice is closed in the energized position and no flow can exist between the inlet and outlet ports. | |||||
Series/Model | Std. Port Size | Pressure (PSI) | Flow (CV) | Size (h x w)" | Watts |
20/EL21 | 1/8" or 1/4" NPT | 0 - 400 | .024 - .204 | 3.98 x 2.59 | 1.8 |
50ELW/ELW51 | 1/8" NPT | 0 - 300 | .022 - .150 | 3.78 x 1.20 | 1.8 |
50LW/LW51 | 1/8" NPT | 0 - 300 | .020 - .150 | 2.95 x 1.00 | 2.5 |
50SLW/SLW51 | 1/8" NPT | 0 - 300 | .022 - .150 | 3.78 x 1.20 | 1.8 |
EL50/EL51 | 1/8" NPT | 0 - 200 | .020 - .075 | 3.27 x 1.44 | 1.8 |
58/581 | Manifold Mt. or 10-32 | 0 - 300 | .010 - .034 | 2.26 x 1.06 | 3.5 |
L58/L581 | Manifold Mt. or 10-32 | 0 - 150 | .010 - .020 | 2.26 x 1.06 | 0.9 |
2-Way Normally Closed Low Watt Valves PeterPaul single orifice valves in which the orifice is closed in the de-energized position and no flow can exist between the inlet and outlet ports. | |||||
Series/Model | Std. Port Size | Pressure (PSI) | Flow (CV) | Size (h x w)" | Watts |
20/EL22 | 1/8" or 1/4" NPT | 0 - 500 | .024 - .284 | 3.98 x 2.59 | 1.8 |
50ELW/ELW52 | 1/8" NPT | 0 - 600 | .022 - .292 | 2.48 x 1.20 | 1.8 |
50ELLW/ELLW52 | 1/8" NPT | 0 - 120 | 0.022 | 2.48 x 1.20 | 0.5 |
50LW/LW52 | 1/8" NPT | 0 - 600 | .022 - .292 | 2.35 x 1.00 | 2.5 |
50LLW/LLW52 | 1/8" NPT | 0 - 120 | 0.22 | 2.35 x 1.00 | 0.65 |
50SLW/SLW52 | 1/8" NPT | 0 - 600 | .022 - .292 | 2.48 x 1.20 | 1.8 |
EL50/EL52 | 1/8" NPT | 0 - 120 | .020 - .075 | 2.48 x 1.44 | 1.8 |
ELL50/ELL52 | 1/8" NPT | 0 - 120 | 0.022 | 2.48 x 1.44 | 0.85 |
58/582 | Manifold Mt. or 10-32 | 0 - 300 | .010 - .034 | 2.0 x 1.06 | 3.5 |
L58/L582 | Manifold Mt. or 10-32 | 0 - 150 | 0.01 | 2.0 x 1.06 | 0.9 |
3-Way Normally Closed Low Watt Valves (exhaust to atmosphere) PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports. | |||||
Series/Model | Std. Port Size | Pressure (PSI) | Flow (CV) | Size (h x w)" | Watts |
20/EL23 | 1/8" or 1/4" NPT | 0 - 375 | .024 - .284 | 3.98 x 2.59 | 1.8 |
58/583 | Manifold Mt. or 10-32 | 0 - 300 | .010 - .034 | 2.0 x 1.06 | 3.5 |
L58/L583 | Manifold Mt. or 10-32 | 0 - 150 | .010 - .020 | 2.0 x 1.06 | 0.9 |
50LW/LW53 | 1/8" NPT | 0 - 215 | .022 - .156 | 2.35 x 1.00 | 2.5 |
50LLW/LLW53 | 1/8" NPT | 0 - 120 | 0.022 | 2.35 x 1.00 | 0.65 |
50SLW/SLW53 | 1/8" NPT | 0 - 215 | .022 - .156 | 2.48 x 1.20 | 1.8 |
ELW50/ELW53 | 1/8" NPT | 0 - 215 | .022 - .156 | 2.48 x 1.20 | 1.8 |
50ELLW/ELLW53 | 1/8" NPT | 0 - 120 | 0.022 | 2.48 - 1.20 | 0.5 |
EL50/EL53 | 1/8" NPT | 0 - 120 | .020 - .075 | 2.48 - 1.44 | 1.8 |
ELL50/ELL53 | 1/8" NPT | 0 - 120 | 0.022 | 2.48 - 1.44 | 0.85 |
3-Way Normally Closed Low Watt Valves (piped exhaust) PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports. | |||||
Series/Model | Std. Port Size | Pressure (PSI) | Flow (CV) | Size (h x w)" | Watts |
20/EL23 | 1/8" or 1/4" NPT | 0 - 400 | .024 - .700 | 4.0 x 2.63 | 1.8 |
58/583 | Manifold Mt. or 10-32 | 0 - 300 | .010 - .034 | 2.26 x 1.06 | 3.5 |
L58/L583 | 1/8" NPT | 0 - 150 | .010 - .020 | 2.26 x 1.06 | 0.9 |
50LW/LW53 | 1/8" NPT | 0 - 215 | .022 - .156 | 2.95 x 1.00 | 2.5 |
50LLW/LLW53 | 1/8" NPT | 0 - 120 | 0.22 | 2.95 x 1.00 | 0.65 |
50SLW/SLW53 | 1/8" NPT | 0 - 215 | .022 - .156 | 3.78 x 1.20 | 1.8 |
50ELW/ELW53 | 1/8" NPT | 0 - 215 | .022 - .156 | 3.78 x 1.20 | 1.8 |
50ELLW/ELLW53 | 1/8" NPT | 0 - 120 | 0.022 | 3.78 x 1.20 | 0.5 |
EL50/EL53 | 1/8" NPT | 0 - 120 | .020 - .075 | 3.27 x 1.44 | 1.8 |
ELL50/ELL53 | 1/8" NPT | 0 - 120 | 0.022 | 3.27 x 1.44 | 0.85 |
3-Way Normally Open Low Watt Valves PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between exhaust and cylinder ports but flow does exist between inlet and cylinder ports. | |||||
Series/Model | Std. Port Size | Pressure (PSI) | Flow (CV) | Size (h x w)" | Watts |
20/EL24 | 1/8" or 1/4" NPT | 0 - 400 | .024 - .156 | 3.98 x 2.59 | 1.8 |
58/584 | Manifold Mt. or 10-32 | 0 - 300 | .010 - .034 | 2.26 x 1.06 | 3.5 |
3-Way Directional Control Low Watt Valves PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and normally closed ports but flow does exist between the inlet and normally open ports. | |||||
Series/Model | Std. Port Size | Pressure (PSI) | Flow (CV) | Size (h x w)" | Watt |
20/EL25 | 1/8" or 1/4" NPT | 0 - 350 | .024 - .156 | 3.98 x 2.59 | 1.8 |
58/585 | Manifold Mt. or 10-32 | 0 - 300 | .010 - .034 | 2.26 x 1.06 | 3.5 |
3-Way Multi-Purpose Low Watt Valves PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the common and normally closed ports but flow does exist between common and normally open ports. | |||||
Series/Model | Std. Port Size | Pressure (PSI) | Flow (CV) | Size (h x w)" | Watts |
20/EL26 | 1/8" or 1/4" NPT | 0 - 256 | .024 - .156 | 3.98 x 2.59 | 1.8 |
58/586 | Manifold Mt. or 10-32 | 0 - 300 | .010 - .034 | 2.26 x 1.06 | 3.5 |
