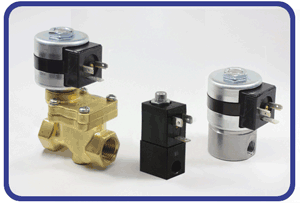

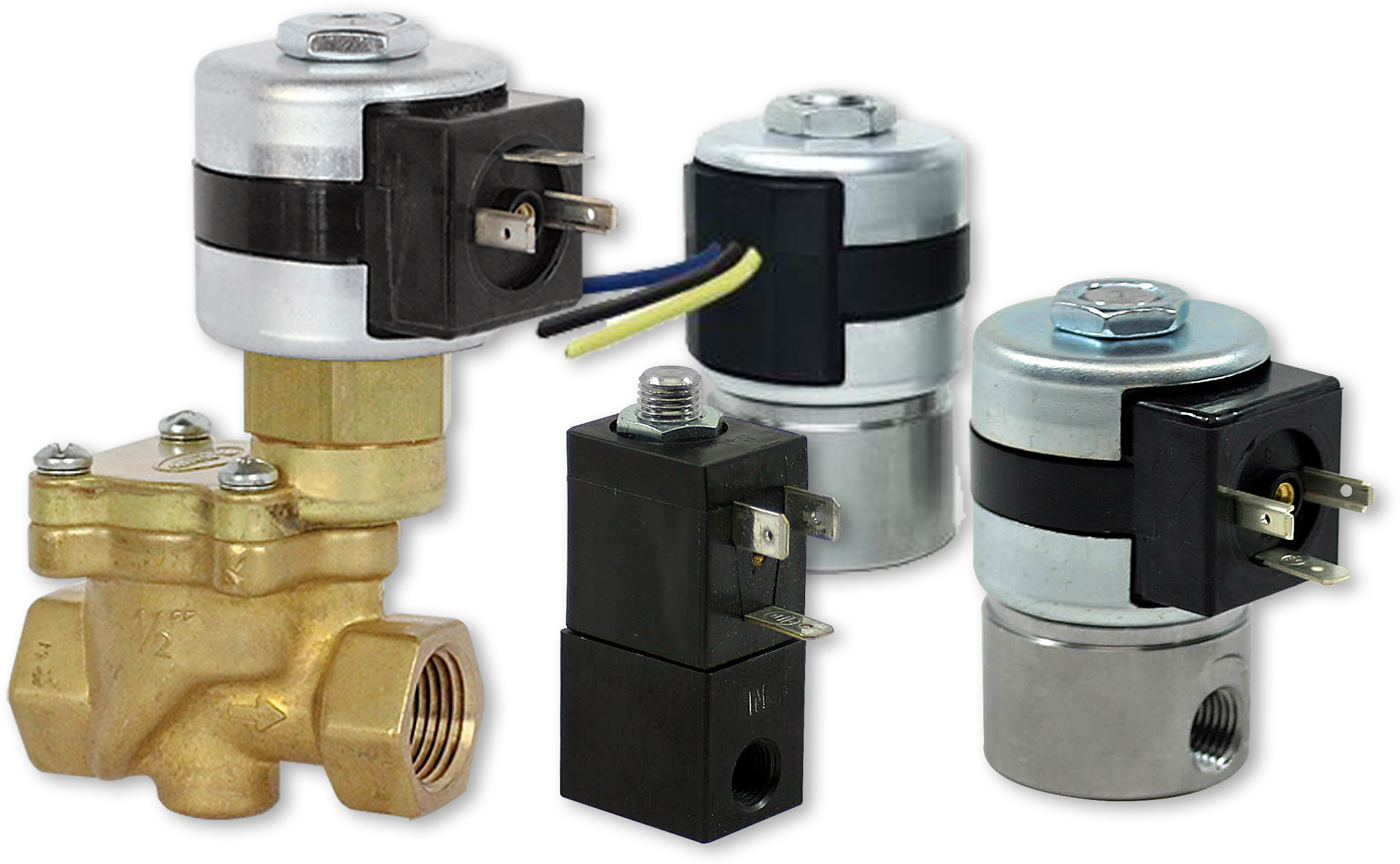

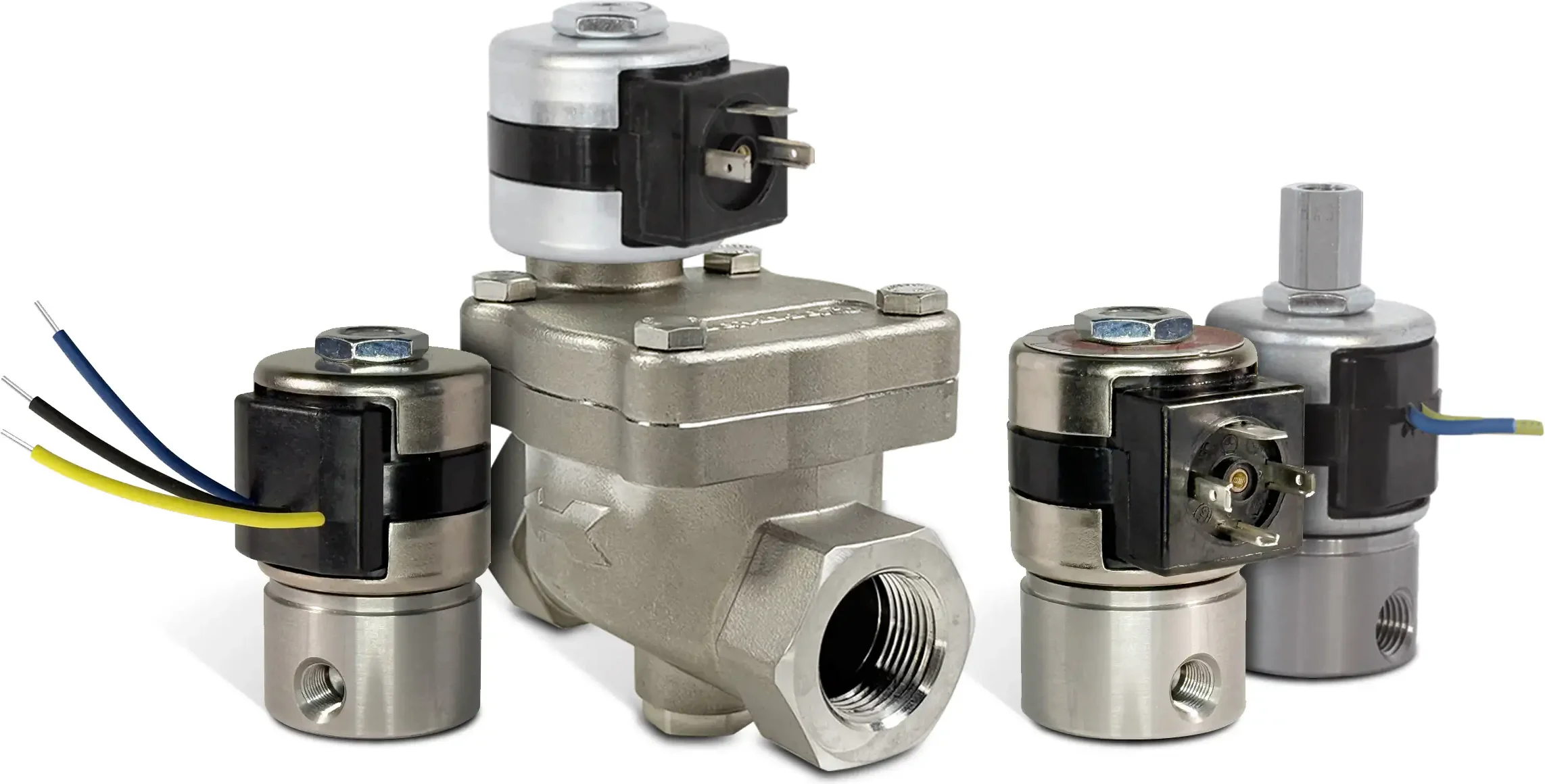

Magnetic Latching Valves

Magnetic Latching Valves
Through the use of a permanent magnet, the latching valves are bi-stable in either shifted state. This allows the valve to stay in either state indefinitely without drawing power. To shift the valve from one state to another, a short 50 millisecond DC voltage is applied to the coil. To shift the valve back, a reverse polarity pulse is applied to the coil. This feature makes this valve suitable for use in remote areas where continuous power may be limited. It is also valuable in equipment where coil heating, due to a continuous application of power, is undesirable such as in medical and chemical analyzers.



2-Way Normally Open Magnetic Latching Valves

PeterPaul single orifice valves in which the orifice is closed in the energized position and no flow can exist between the inlet and outlet ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/21 1/8" or 1/4" NPT 100 - 400 .024 - .156 2.84 - 1.62

2-Way Normally Closed Magnetic Latching Valves

PeterPaul single orifice valves in which the orifice is closed in the de-energized position and no flow can exist between the inlet and outlet ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV15/152 1/8" NPT 0 - 500 .022 - .130 2.5 x 1.13
MLV20/22 1/8" or 1/4" NPT 0 - 500 .024 - .700 2.84 x 1.62
MLV20/22 (3-wire) 1/8" to 1/4" NPT 0 - 500 .024 - .700 2.84 x 1.775
MLV20/H22  1/8" to 1/4" NPT  0 - 3300  .010 - .100 2.84 x 1.62
MLV20/H22(3-wire)  1/8" to 1/4" NPT  0 - 750  .010 2.84 x 1.62
MLV80/828 (IP) 1/" - 1" NPT 3 - 200 4.0 - 98 up to 11.74 x 8.82

3-Way Normally Closed Magnetic Latching Valves (exhaust to atmosphere)

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV15/153 1/8" NPT 0 - 150 .022 - .130 2.5 x 1.13
MLV20/23 1/8" or 1/4" NPT 0 - 400 .024 - .700 2.24 x 1.56
MLV20/23 (3-wire) 1/8" or 1/4" NPT 0 - 385 .024 - .500 3.669 x 1.775

3-Way Normally Closed Magnetic Latching Valve (piped exhaust)

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/23 (3-wire) 1/8" or 1/4" NPT 0 - 385 .024 - .500 3.669 x 1.775

3-Way Normally Opened Magnetic Latching Valves

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/24 1/8" or 1/4" NPT 0 - 400 .024 - .156 3.59 x 1.62

3-Way Directional Control Magnetic Latching Valves

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and normally closed ports but flow does exist between the inlet and normally open ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/25 1/8" or 1/4" NPT 0 - 500 .024 - .214 3.59 x 1.62
MLV20/25 (3-wire) 1/8" or 1/4" NPT 0 - 500 .024 - .214 3.661 x 1.775

3-Way Multi-Purpose Magnetic Latching Valves

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the common and normally closed ports but flow does exist between common and normally open ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/26 1/8" or 1/4" NPT 0 - 400 .024 - .156 3.59 x 1.62
MLV20/26 (3-wire) 1/8" or 1/4" NPT 0 - 175 .024 - .156 3.661 x 1.775
