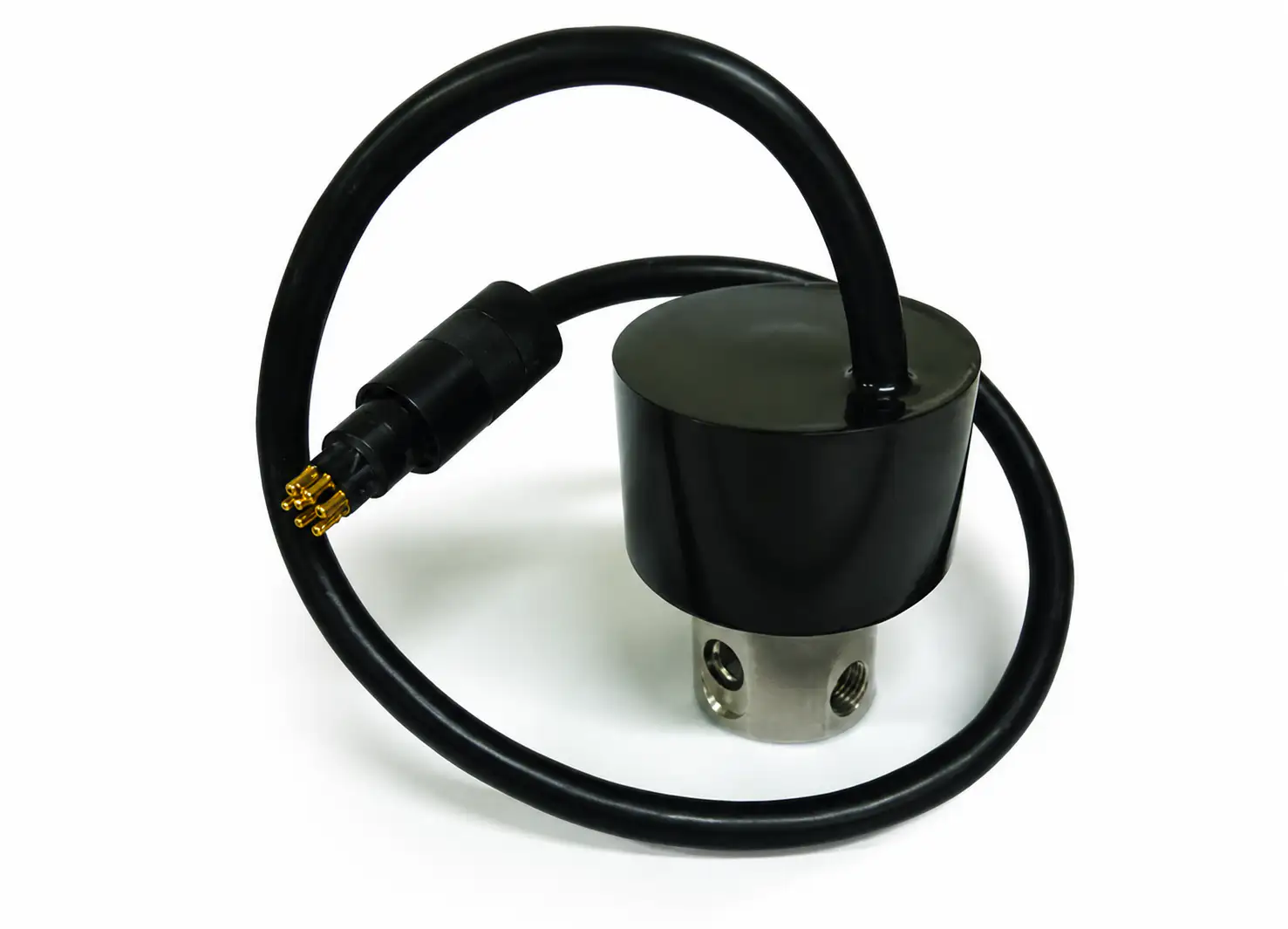

Series 20 Model H22 Submersible Valve

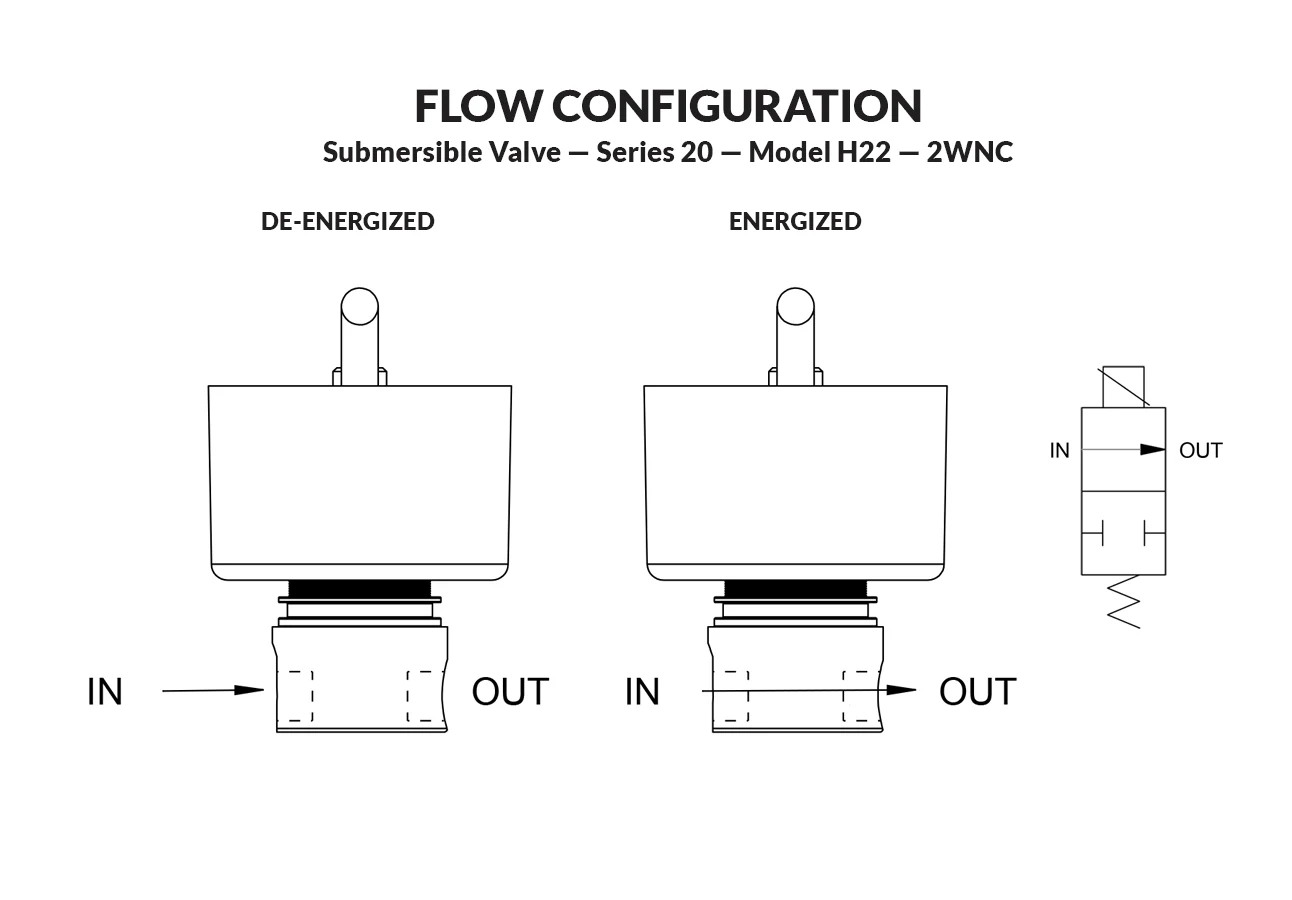

2-WAY NORMALLY CLOSED

The submersible valves are watertight and corrosion resistant for direct deep sea Ocean submersion.

Depths to 1000+ feet
Nickel plated Brass Body
Plastic Epoxy Coil & housing.
Media pressures up to 4500 PSI
Engineered to aid with environmental causes.

Tabs

Specifications

ORIFICE SIZE	CV FACTOR	PRESSURE RATINGS	1/4 NPT PORTS	PRESSURE RATINGS	1/4 NPT PORTS
		DC	STANDARD COIL	LATCHING (2 Wire/3 Wire)	LATCHING COIL

.025	.010	6000*	H22M6✩D#W-△	4500/3000	H22M6✩+#W-△
1/32	.022	3000*	H22G6✩D#W-△	2400/1600	H22G6✩+#W-△
3/64	.041	1500*	H22H6✩D#W-△	1500/1200	H22H6✩+#W-△
1/16	.065	500	H22J6✩D#W-△	500/400	H22J6✩+#W-△
3/32	.100	150	H22K6✩D#W-△	200/125	H22K6✩+#W-△

✩: Replace ✩ with desired code – D = Standard Body, G = SAE Gauge Port Option

#: Replace # with desired code – 3 = PIN Cable, 6 = 6 PIN Cable, 8 = 8 PIN Cable

+: Coil Designation: L = 2 Wire Latching Coil, 3 = 3 Wire Latching Coil

△ Seal Material: Replace ∆ with desired code – Blank = Nitrile (Buna), S = Low Temp Buna, N = FKM*, E = Neoprene, A = EPDM

* FKM seals not recommended for pressure ratings above 500 PSI.

Operating Conditions:

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

10,000 PSI

Leakage:

Bubble tight for standard valves.

Submersible Depth:

1000+ feet

Electrical Characteristics:

Coil Voltage:

9/DC, 12/DC, 18/DC & 24/DC

Nominal Power:

Standard Coil - 14 Watts DC 2 Wire Latching Coil - 10 Watts DC 3 Wire Latching Coil - 15 Watts DC

Coil Construction:

Plastic Epoxy Coil & Housing, Momentary Latching Coil Available

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Nickel Plated Brass

Internal Components:

Stainless Steel

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Sealing Pin:

Kel-F (Std.)

Orifice Diameter:

See table above.

Porting:

1/4" NPT. Optional SAE Gauge Port available

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

1.13 lb

Options:

Consult factory

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

SERIES 20 2WNC SUBMERSIBLE VALVES

MODEL 22 1/4-18 NPT
2WNC CONDUIT CONNECTION

* Consult representative or factory for options and specifications
