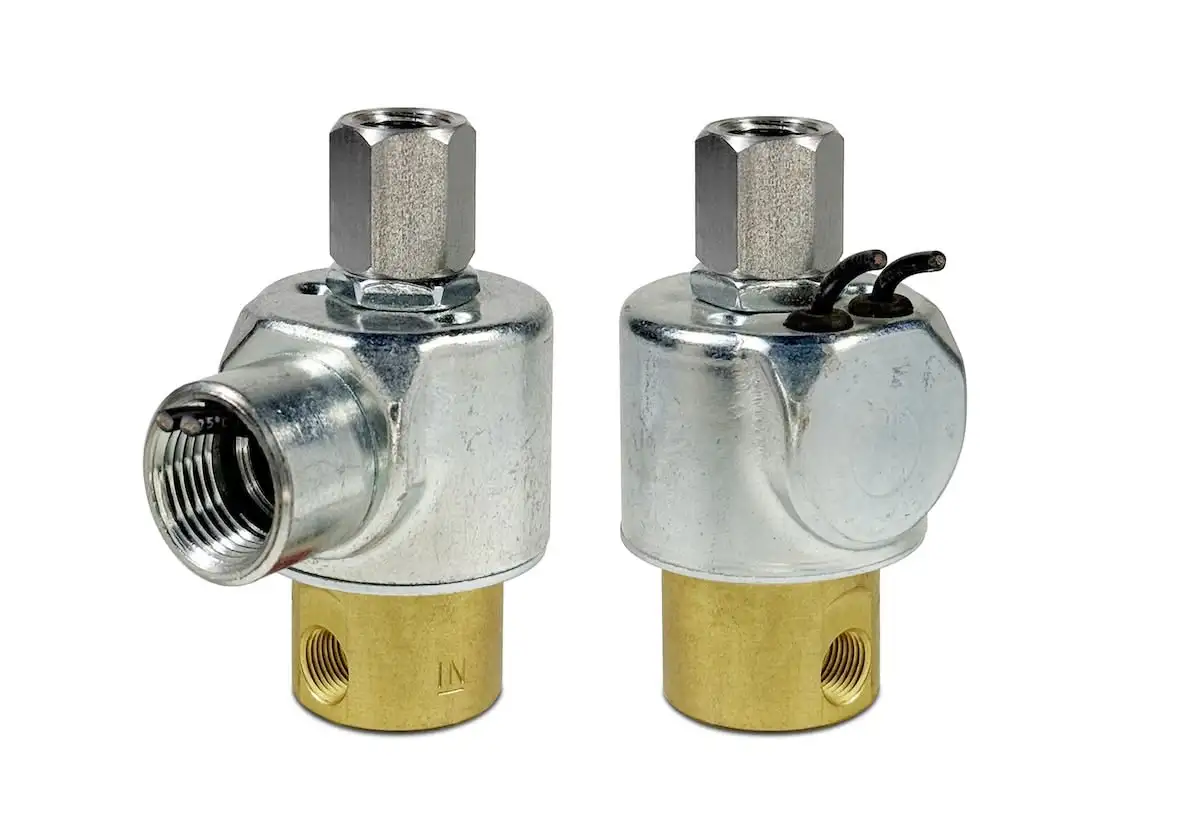

Series 30 Model 31

2-WAY NORMALLY OPEN

Complete range of valves particularly suitable when cost and size are major factors. The bodies are constructed of brass (stainless steel is optional). Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

Brass body with stainless steel internal construction.
A smaller, cost effective alternative to any industry standard.

Tabs

Specifications

MAX. OPER.
PRESS. DIFF.

ORIFICE SIZE

CV FACTOR

VALVE NUMBER
GROMMET HOUSING

CONDUIT HOUSING

1/8 NPT PORTS

300

1/32

.024

31G5XGM

31G5XCM

175

3/64

.052

31H5XGM

31H5XCM

125

1/16

.095

31J5XGM

31J5XCM

3/32

.160

31K5XGM

31K5XCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (31K5XGM 120/60) repair pack (K31KDX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O31K5DGM 120/60)

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 30 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media Optional Valves – can tolerate much higher or much lower ambient and media temperatures*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 8.0 Watts DC — 8.0 Watts

Coil Construction:

Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Brass (Std.) or Stainless Steel (Opt.)

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.) Many other elastomers available*

Orifice Diameter:

See table above.

Porting:

Standard 1/8" NPT (other ports available).*

Housing:

Grommet and 1/2" NPT conduit - many options available*

Listings:

Most valves are UL and CSA listed*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc

Valve Weight:

Grommet Valve: 0.75 lb Conduit Valve: 0.81 lb

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

Series 30 General Purpose Valves Conduit

MODEL 31
2WNO CONDUIT CONNECTION

Series 30 General Purpose Valves DIN

MODEL 31 1/8-27 NPT
2WNO
DIN STYLE COIL

Series 30 General Purpose Valves Grommet

MODEL 31
2WNO GROMMET WITH LEADS

Series 30 General Purpose Valves Grommet/Bracket Connection

Series 30 General Purpose Valves Conduit/Bracket Connection

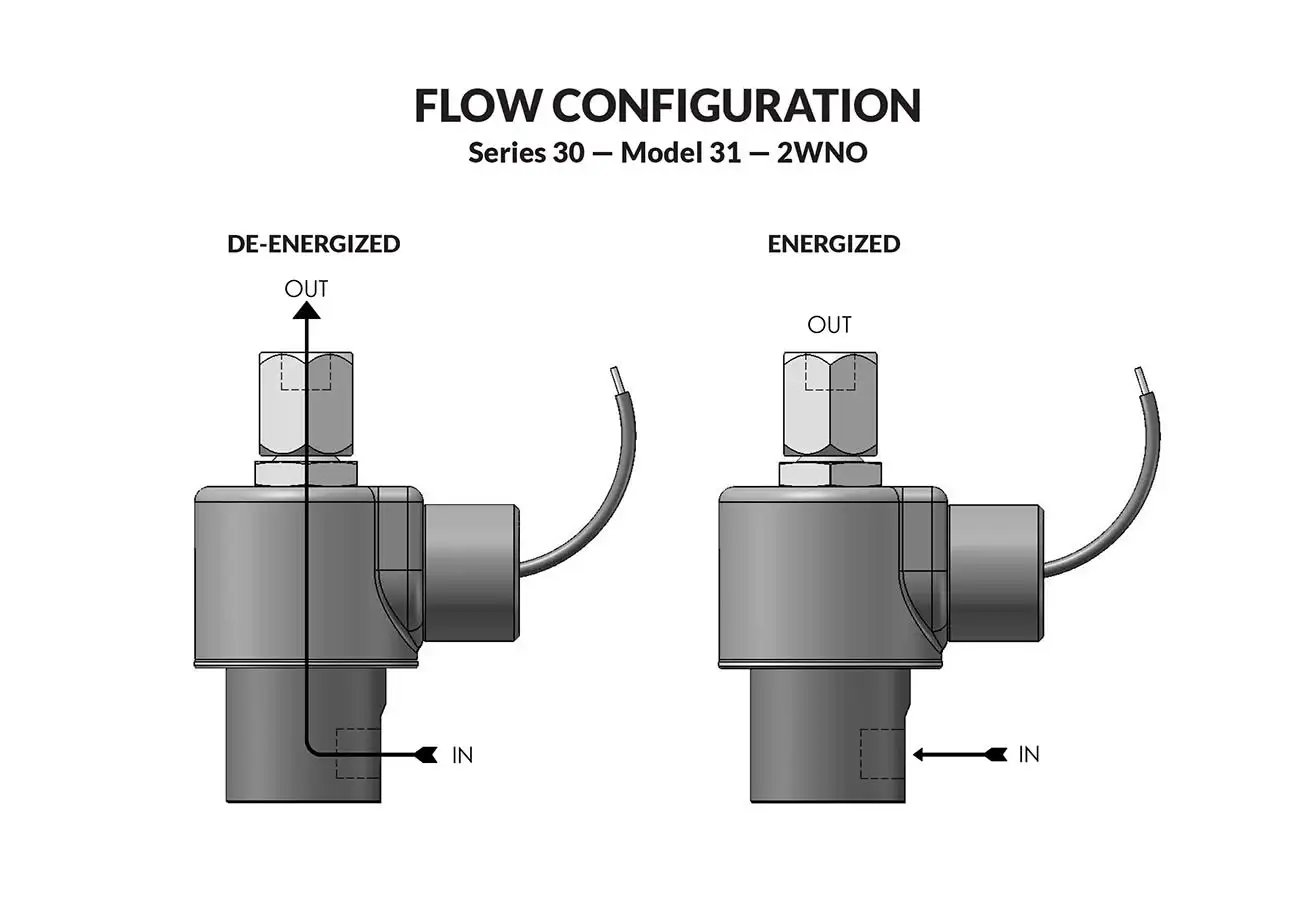

Flow Chart Tab

Flow chart Series 20-30

Nomenclature Tab

Nomenclature Chart (non 58 series)

Nomenclature, all valve series except 58

* Consult representative or factory for options and specifications
