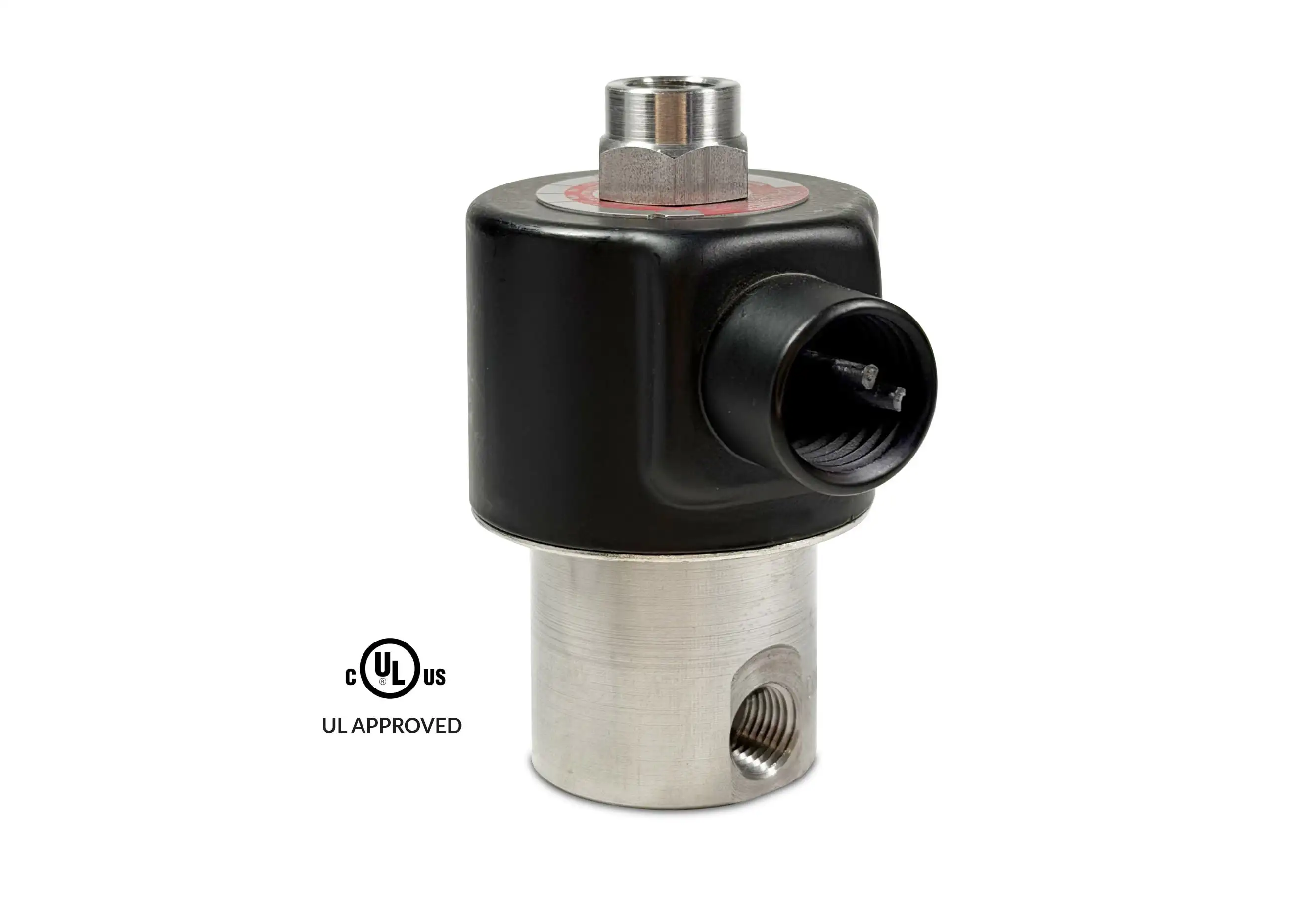

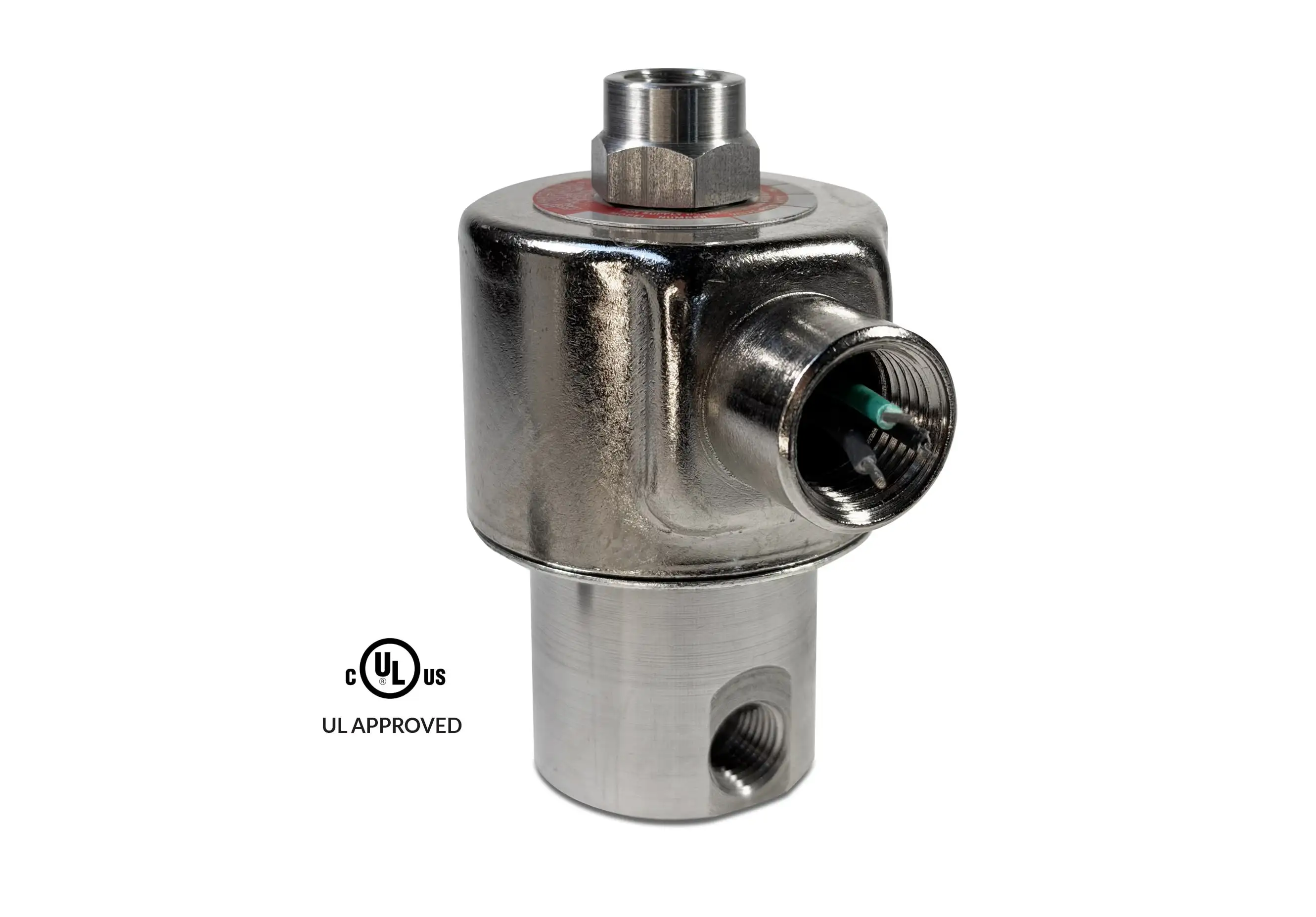

Series 70 Model N75

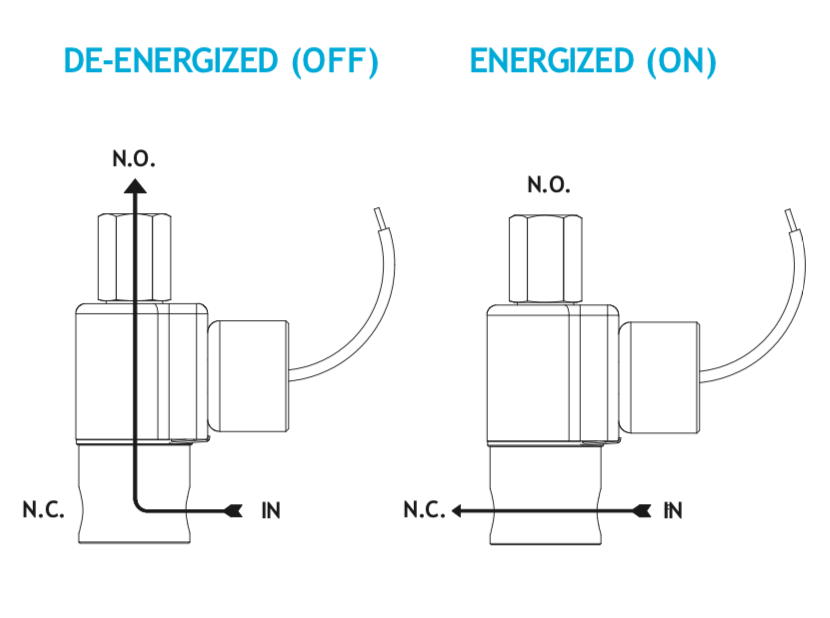

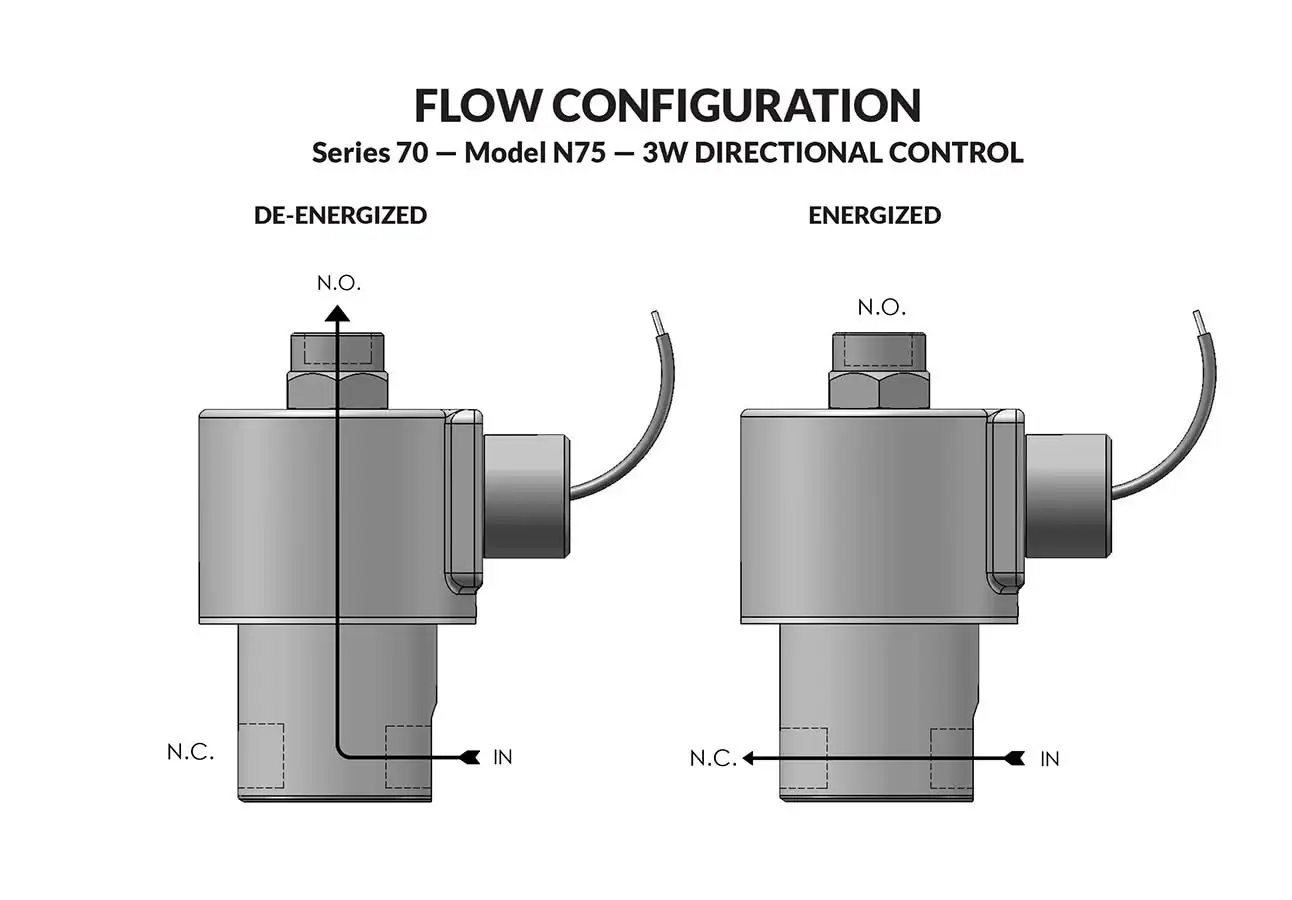

3-WAY DIRECTIONAL CONTROL

The N70 line Peter Paul Hazardous location valves are UL listed and certified for non-incendive hazardous location Class 1, Div 2, Groups A, B, C and D; Class 2, Div 2, Groups E, F and G; T3C temperature rating.

Largest direct acting (non-piloted) valve we manufacture.
Large orifice.
High flow.
Will operate effectively at very low pressures or vacuum.

Tabs

Specifications

VALVE SPECIFICATIONS

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE		CV FACTOR		VALVE NUMBER GROMMET HOUSING
AC	DC	N.O.	N.C.	N.O.	N.C.	1/4 NPT PORTS

350	350	1/16	1/16	.09	.09	N75JJ9ZCP-∆
250	250	3/32	3/32	.22	.22	N75KK9ZCP-∆
175	175	1/8	1/8	.35	.35	N75NN9ZCP-∆
125	125	5/32	5/32	.45	.45	N75OO9ZCP-∆
100	100	3/16	3/16	.50	.50	N75PP9ZCP-∆

Ordering Information:

Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (N75OO9ZCP 120/60) repair pack (KN75OOX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (ON75OODDCP 120/60)

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 70 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

4000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 18.0 Watts DC — 16.0 Watts

Coil Construction:

Potted Class F or Class H (Opt.)

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel (Std.) or Brass (Opt.)

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

Standard 1/4" NPT (other ports available).*

Housing:

1/2′′ NPT conduit*

Listings:

Listed and Certified for Non-Incendive Hazardous Locations Class 1, Div 2, Groups A, B, C and D; Class 2, Div 2, Groups E, F and G; T3C Temperature rating.*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

Conduit Valve: 2.06 lb

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering and Alternate Elastomers * Consult representative or factory for options and specifications.

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/
