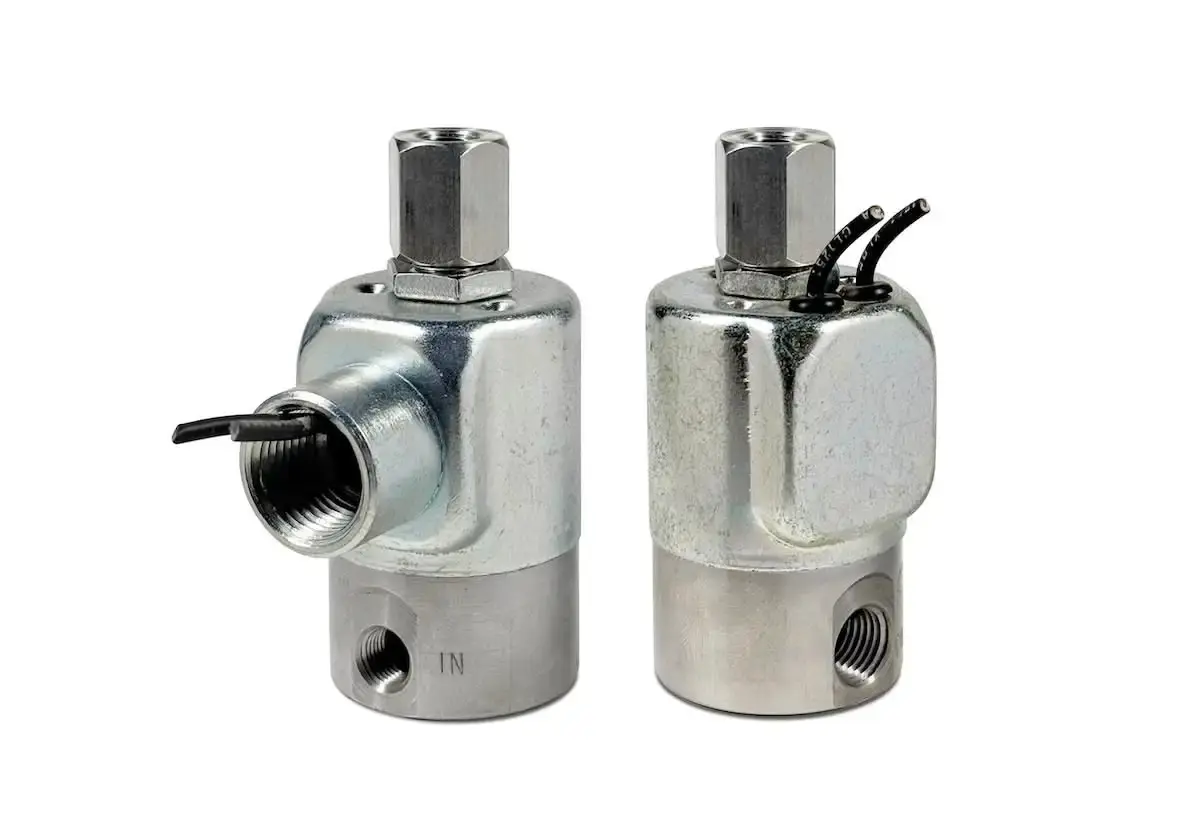

Series 20 Model 26

3-Way Multi-Purpose Valve

A complete line of valves with a great selection of options and exceptional proven performance. The standard in the field. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

• The flagship valve initially created for fluid power industry.
• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• It has the greatest amount of options available of all the valves.
• Wide range of orifice sizes from 1/32" to 1/8".

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

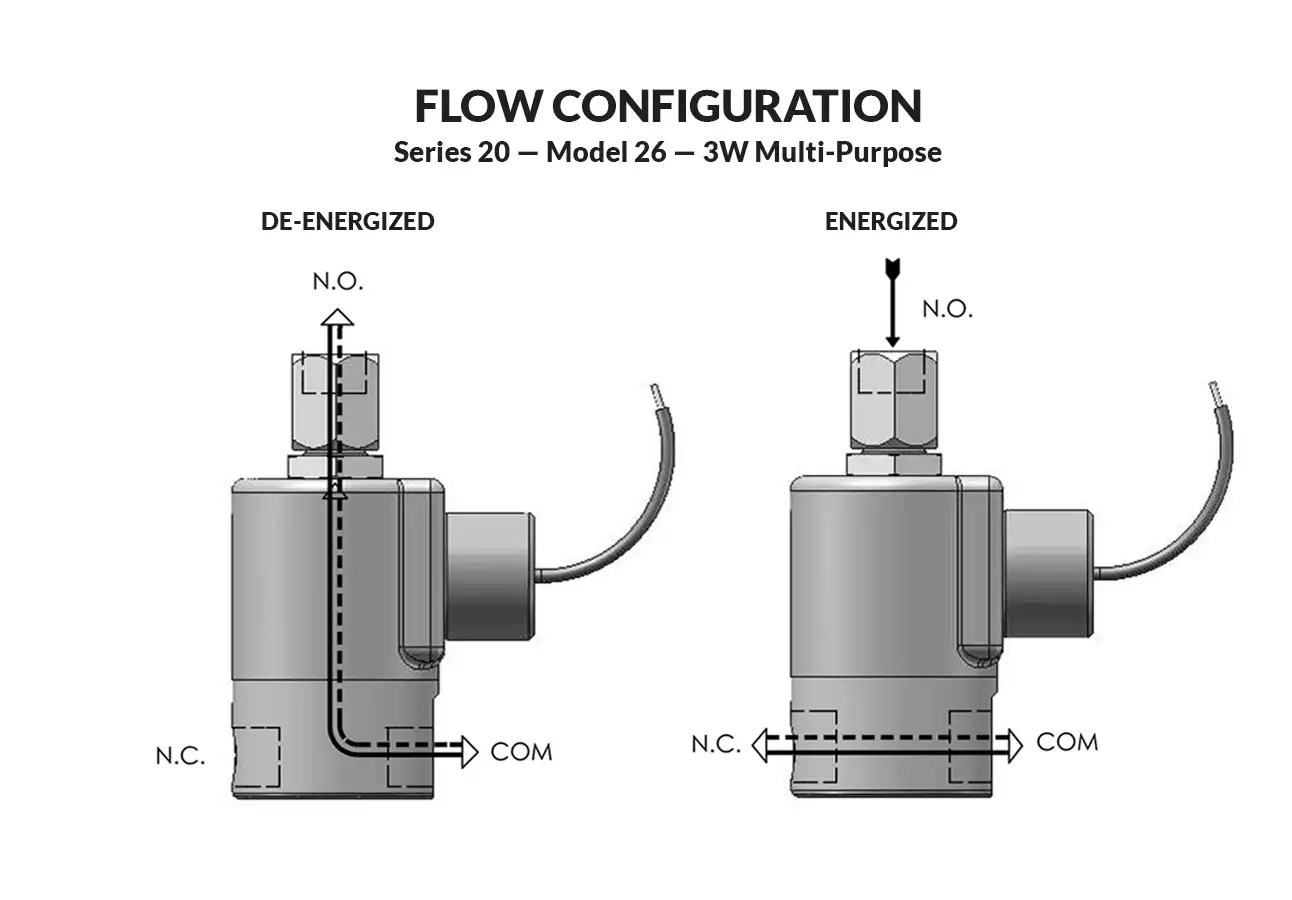

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.

PRESS. DIFF.

ORIFICE SIZE CV FACTOR VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
AC DC N.C. N.O. N.C. N.O. 1/8 NPT PORTS 1/4 NPT PORTS 1/8 NPT PORTS 1/4 NPT PORTS
400 400 1/32 1/32 .024 .024 26GG7XGM 26GG9ZGM 26GG7XCM 26GG9ZCM
150 150 3/64 3/64 .052 .052 26HH7XGM 26HH9ZGM 26HH7XCM 26HH9ZCM
100 100 1/16 1/16 .095 .095 26JJ7XGM 26JJ9ZGM 26JJ7XCM 26JJ9ZCM
75 75 3/32 3/32 .156 .156 26KK7XGM 26KK9ZGM 26KK7XCM 26KK9ZCM
35 35 1/8 1/8 .284 .201 26NN7XGM^ 26NN9ZGM^ 26NN7XCM^ 26NN9ZCM^

^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (26JJ9ZGM-120/60) REPAIR PACK (K26JJX-AC)

+ Ratings in brackets are optional extended ratings; consult factory.

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 8.7 Watts, DC — 9.5 Watts
Coil Construction: Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8" and 1/4" NPT (other ports available).*
Housing: Grommet and 1/2" NPT conduit - many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 1.13 lb Conduit Valve: 1.19 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil, European Style DIN, Explosion Proof and Magnetic Latching Coil.*

* Consult representative or factory for options and specifications.

Series 20 General Purpose Valves Conduit


MODEL 26 1/4-18 NPT
3W MULTI-PURPOSE
CONDUIT CONNECTION

MODEL 26 1/8-27 NPT
3W MULTI-PURPOSE
CONDUIT CONNECTION

MODEL 26 BODY OPTION "E"
3-WAY MULTI-PURPOSE
CONDUIT COIL CONNECTION

MODEL 26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
CONDUIT COIL CONNECTION

MODEL 26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
CONDUIT COIL CONNECTION

MODEL 26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
CONDUIT COIL CONNECTION

MODEL 26 METERING
3-WAY MULTI-PURPOSE
CONDUIT COIL CONNECTION

Series 20 General Purpose Valves Conduit/Bracket Connection


MODEL 26 1/4-18 NPT
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 26 1/8-27 NPT
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

MODEL 26 BODY OPTION "E"
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET COIL CONNECTION

MODEL 26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET COIL CONNECTION

MODEL 26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET COIL CONNECTION

MODEL 26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET COIL CONNECTION

MODEL 26 METERING
3-WAY MULTI-PURPOSE
CONDUIT/BRACKET CONNECTION

Series 20 General Purpose Valves DIN


MODEL 26 1/4-18 NPT
3-WAY MULTI-PURPOSE
DIN STYLE COIL

MODEL 26 1/8-27 NPT
3-WAY MULTI-PURPOSE
DIN STYLE COIL

MODEL 26 BODY OPTION "E"
3-WAY MULTI-PURPOSE
DIN STYLE COIL

MODEL 26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
DIN STYLE COIL

MODEL 26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
DIN STYLE COIL

MODEL 26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
DIN STYLE COIL

MODEL 26 METERING
3-WAY MULTI-PURPOSE
DIN STYLE COIL

Series 20 General Purpose Valves Grommet


MODEL 26 1/4-18 NPT
3W MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 26 1/8-27 NPT
3W MULTI-PURPOSE
GROMMET WITH LEADS

MODEL 26 BODY OPTION "E"
3-WAY MULTI-PURPOSE
GROMMET HOUSING WITH YOKE

MODEL 26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
GROMMET HOUSING WITH LEADS

MODEL 26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
GROMMET HOUSING WITH LEADS

MODEL 26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
GROMMET HOUSING WITH LEADS

MODEL 26 METERING
3-WAY MULTI-PURPOSE
GROMMET HOUSING WITH LEADS

Series 20 General Purpose Valves Grommet/Bracket Connection


MODEL 26 1/4-18 NPT
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 26 1/8-27 NPT
3-WAY MULTI-PURPOSE
GROMMET/BRACKET WITH LEADS

MODEL 26 BODY OPTION "E"
3-WAY MULTI-PURPOSE
GROMMET/BRACKET HOUSING WITH LEADS

MODEL 26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
GROMMET/BRACKET HOUSING WITH LEADS

MODEL 26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
GROMMET/BRACKET HOUSING WITH LEADS

MODEL 26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
GROMMET/BRACKET HOUSING WITH LEADS

MODEL 26 METERING
3-WAY MULTI-PURPOSE
GROMMET/BRACKET HOUSING WITH LEADS

Series 20 General Purpose Valves Yoke Leads


MODEL 26 1/4-18 NPT
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 26 1/8-27 NPT
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 25 BODY OPTION "E"
3-WAY MULTI-PURPOSE
MOLDED COIL WITH LEADS

MODEL 26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
MOLDED COIL WITH YOKE

MODEL 26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
YOKE WITH LEADS

MODEL 26 METERING
3-WAY MULTI-PURPOSE
MODLED COIL WITH YOKE

Series 20 General Purpose Valves Yoke Spades


MODEL 26 1/4-18 NPT
3-WAY MULTI-PURPOSE
YOKE WITH SPADES

MODEL 26 1/8-27 NPT
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 26 BODY OPTION "E"
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS

MODEL 26 METERING
3-WAY MULTI-PURPOSE
YOKE WITH SPADE TERMINALS
