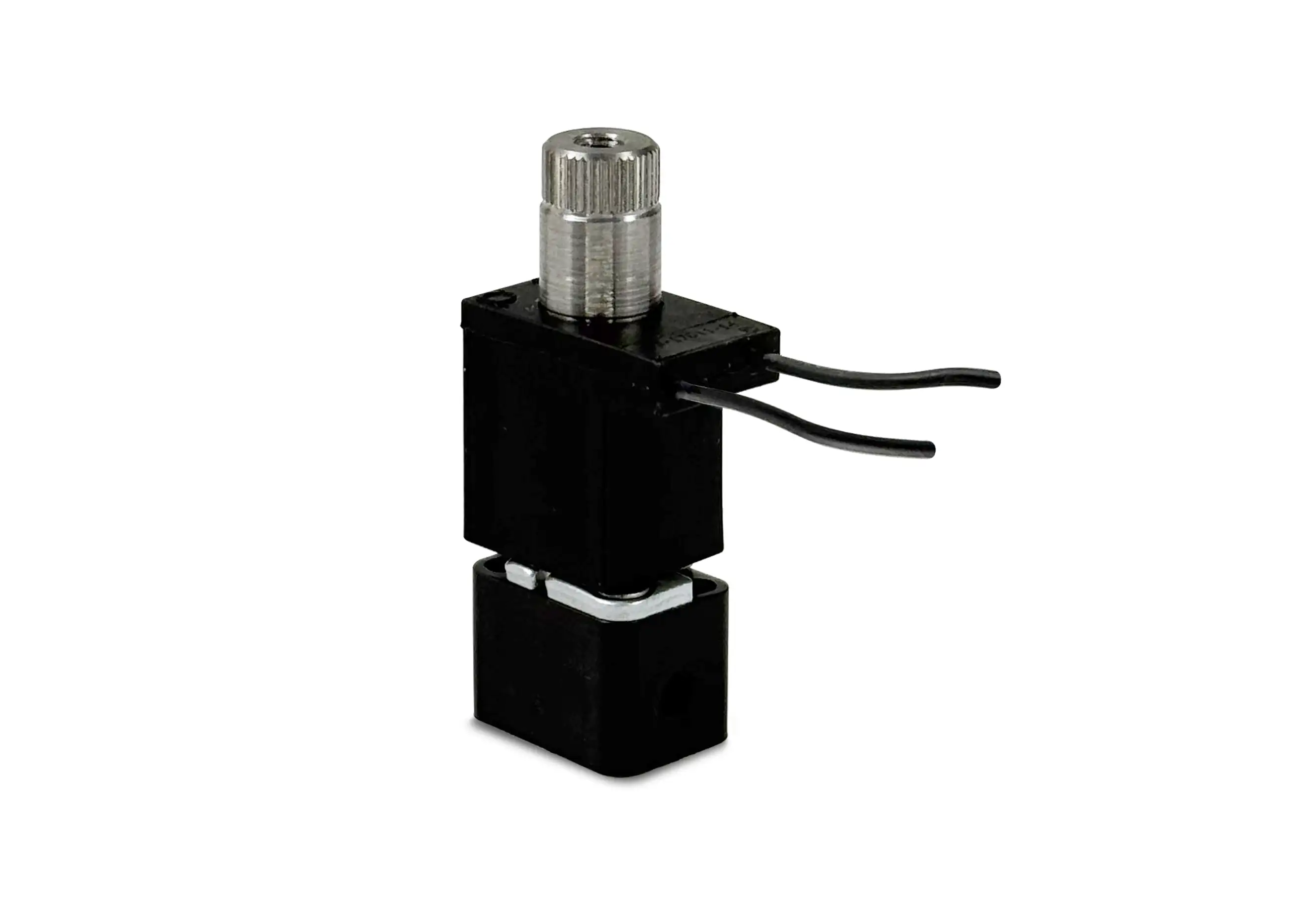

Series 58 Model 586

Low Watt
3-Way Multi-Purpose Valve

Easily interfaced with circuit boards and miniaturized components. The versatility is for connecting electronic signals to pneumatic outputs. The small size is ideal for stand alone (with #10-32 UNF-2B ports) or multiple valves mounted on one manifold. Air and other common gases — filtration recommended — 30 microns or less.

• May be used to "pilot" larger valves.
• Ideal for micro electronic production equipment.
• Great for medical and chemical analytical applications.
• Can operate directly from most programmable controllers.
• High quality engineering.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

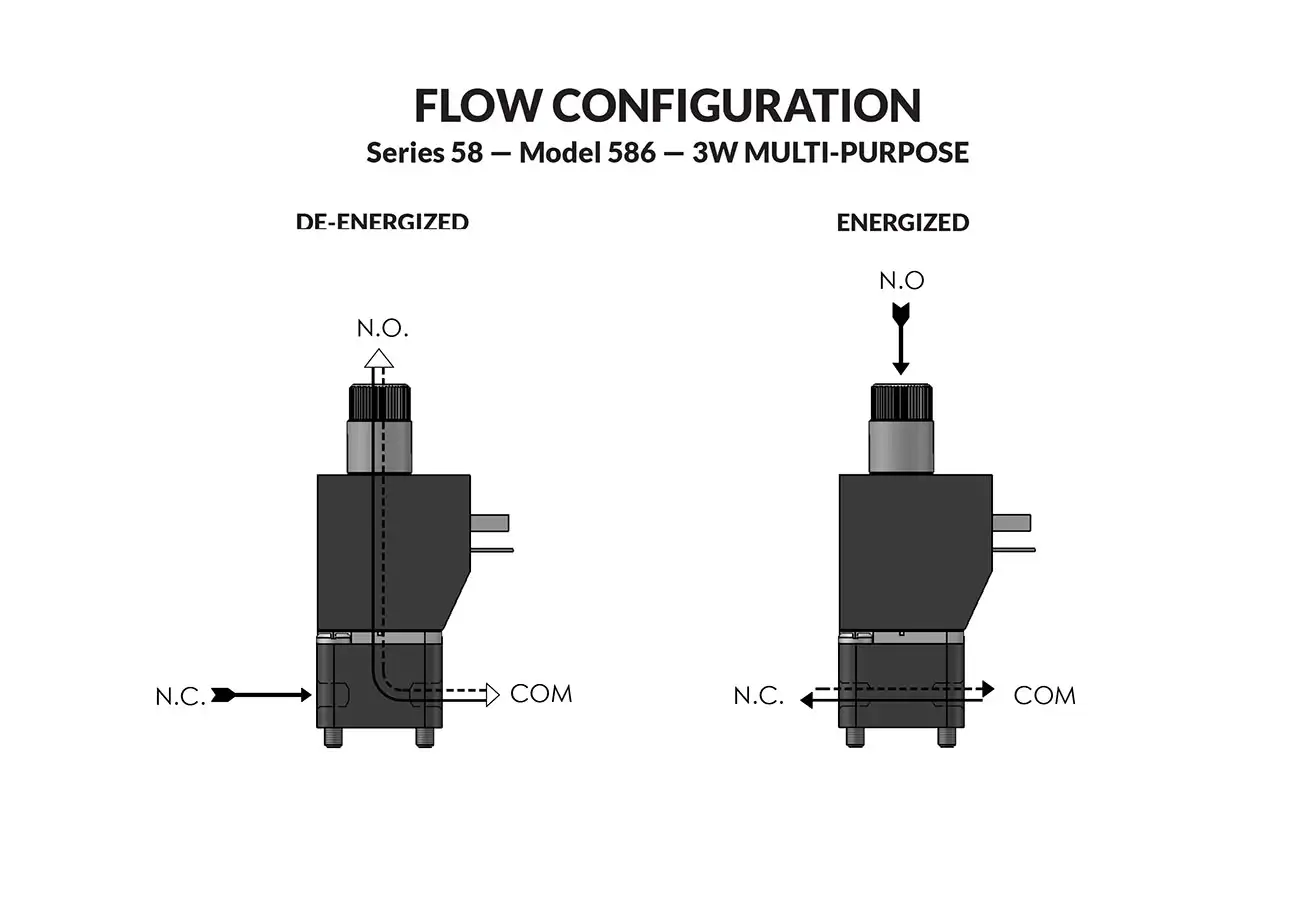

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
AC DC N.C. N.O. N.C. N.O. LEADWIRE MICRO DIN
145 145 0.6 mm 0.6 mm .010 .010 586AA19PGM 586AA19PE
100 100 0.8 mm 0.8 mm .020 .020 586FF19PGM 586FF19PE
50 50 1.0 mm 1.0 mm .030 .030 586MM19PGM 586MM19PE
20 20 1.2 mm 1.2 mm .034 .034 586WW19PGM 586WW19PE

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (586MM19PGM 120/60) REPAIR PACK (K586MM19 AC)

OPERATING CONDITIONS

Media: Air and other common gases — filtration recommended — 30 microns or less.
Valve Temperature Range: Standard Valves – 5°F (-15°C) to 122°F (50°C) ambient; media.
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 1500 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 14 to 220V AC 60 HZ. and 13 to 202V AC 50 HZ.— 3.0 to 150V DC
Nominal Power: AC — 3.5 Watts, DC — 3.5 Watts
Coil Construction: Molded Class A with leadwires and Micro DIN.
Typical Response Time on Air: AC — 3 to 9 Milliseconds, DC — 9 Milliseconds
Operating Speed: Up to 1000 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Polyester Plastic (Std.), Round Brass or Stainless Steel (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: #10-32 UNF-2B
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.13 lbs
Repair Packs: See table above.
Options: Round Stainless Steel or Brass Body, Male Stud Mount, Manual Override, M5 Ports and Manifold Mount*

* Consult representative or factory for options and specifications.

Series 58 Model 586 Molded Leads


3W MULTI-PURPOSE
MOLDED COIL WITH LEADS
PLASTIC BODY WITH 10-32 PORTS

3W MULTI-PURPOSE PIPED EXHAUST
MOLDED LEAD STYLE COIL
STAINLESS STEEL BODY WITH 10-32 PORTS

3W MULTI-PURPOSE PIPED EXHAUST
MOLDED LEADS STYLE COIL
MANIFOLD MOUNT PLASTIC BODY
WITH MANUAL OVERRIDE

3W MULTI-PURPOSE PIPED EXHAUST
MOLDED LEADS COIL
MANIFOLD MOUNT PLASTIC BODY

3W MULTI-PURPOSE PIPED EXHAUST
MOLDED LEADS COIL
STUD MANIFOLD MOUNT
WITH STAINLESS STEEL BODY

Series 58 Model 586 DIN


3W MULTI-PURPOSE
DIN STYLE COIL
PLASTIC BODY WITH 10-32 PORTS

3W MULTI-PURPOSE PIPED EXHAUST
DIN STYLE COIL
STAINLESS STEEL BODY WITH 10-32 PORTS

3W MULTI-PURPOSE PIPED EXHAUST
DIN STYLE COIL
MANIFOLD MOUNT PLASTIC BODY
WITH MANUAL OVERRIDE

3W MULTI-PURPOSE PIPED EXHAUST
DIN STYLE COIL
MANIFOLD MOUNT PLASTIC BODY

3W MULTI-PURPOSE PIPED EXHAUST
DIN STYLE COIL
STUD MANIFOLD MOUNT
STAINLESS STEEL BODY
58-Valve-Nomenclature
