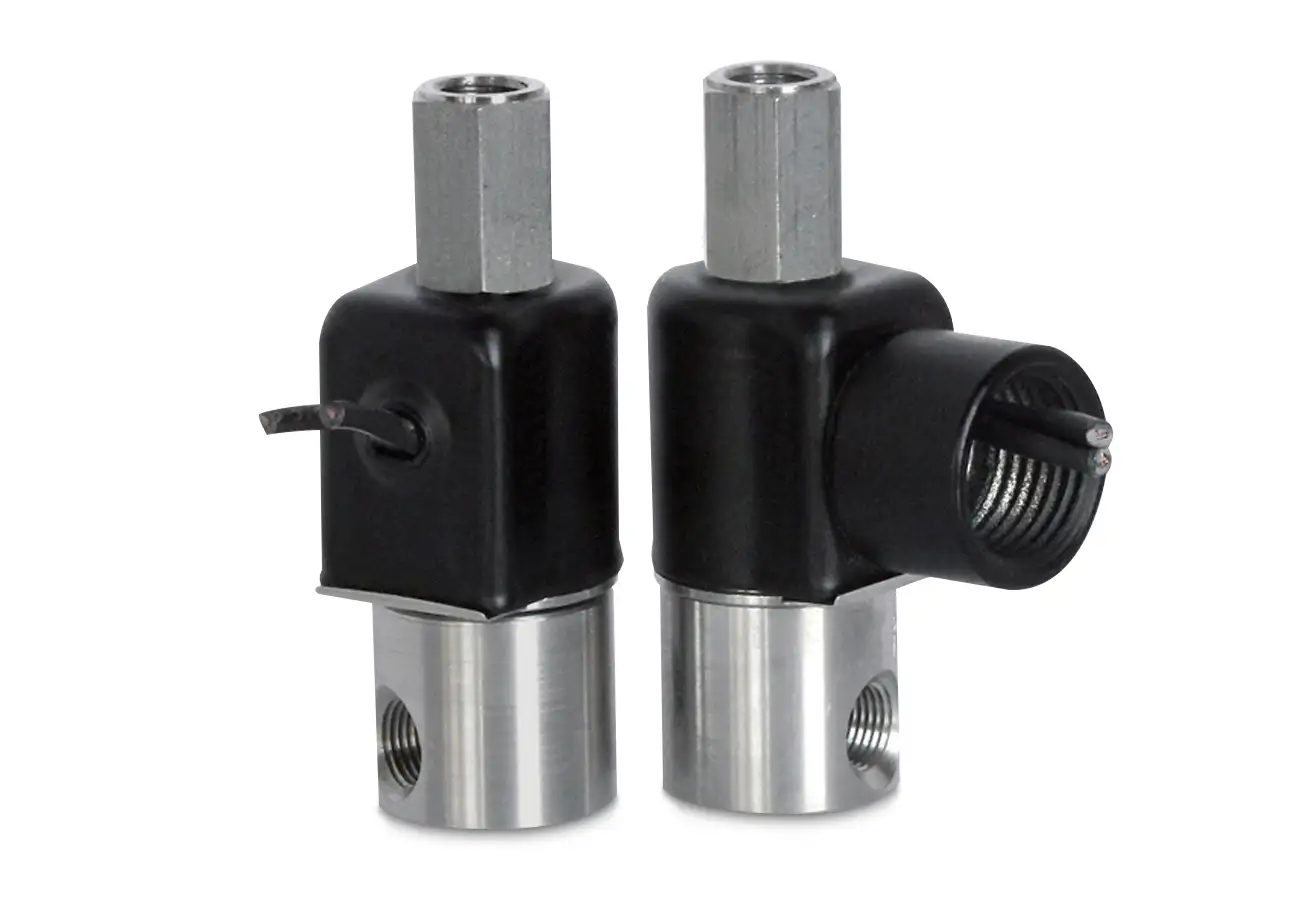

Series 50 Model 53

3-Way Normally Closed Valve (piped exhaust)

Our original mini — engineered for space economy without sacrificing performance. Typical applications include medical, analytical instrumentation. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

• Tough with options to use in hazardous location environments or low watt applications.
• High quality engineering.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

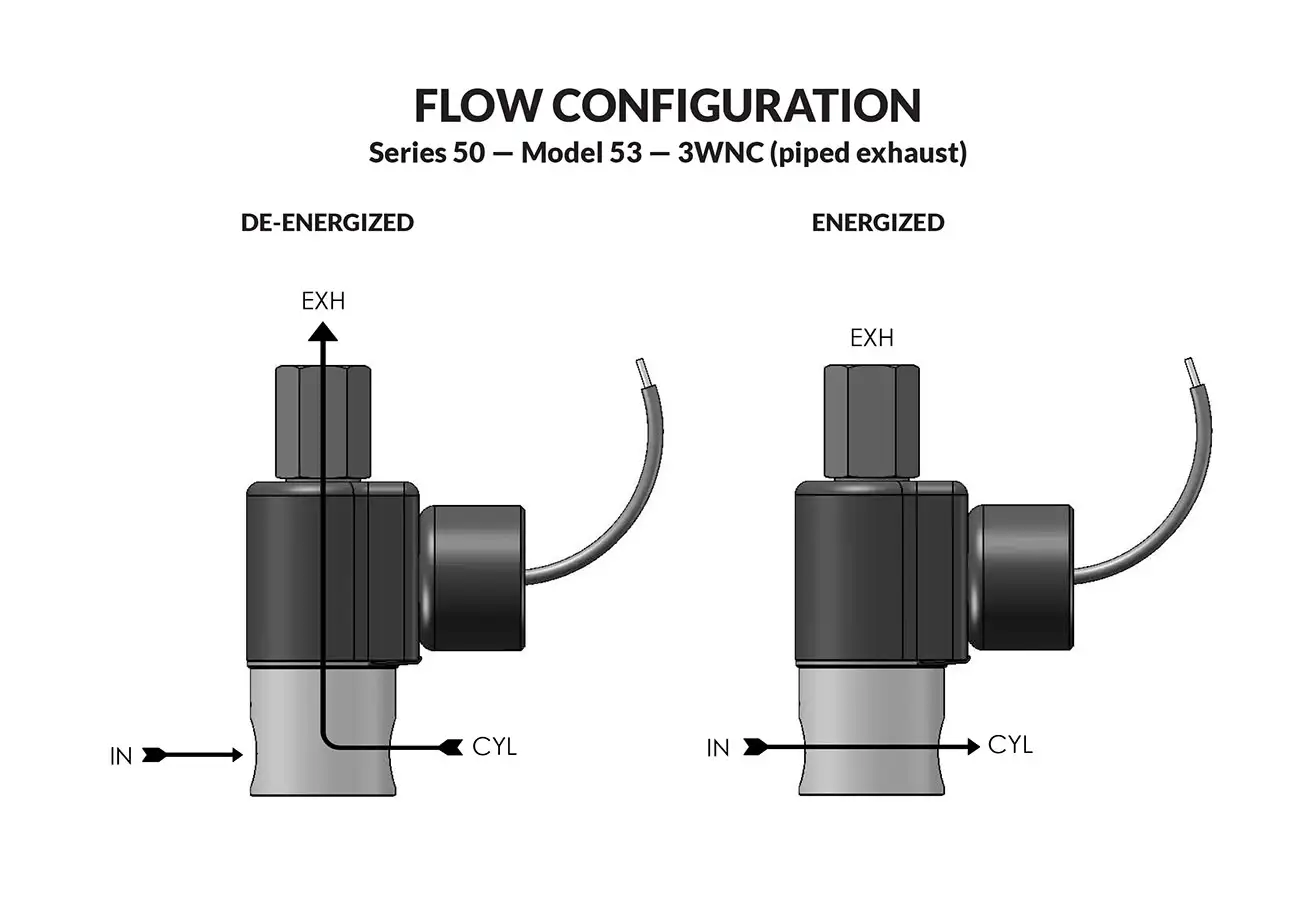

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
AC DC N.C. N.O. N.C. N.O. 1/8 NPT PORTS 1/8 NPT PORTS
200 200 1/32 1/32 .022 .020 53GG8XGM 53GG8XCM
150 150 3/64 3/64 .055 .048 53HH8XGM 53HH8XCM
150 150 3/64 1/16 .055 .075 53HJ8XGM 53HJ8XCM
100 100 1/16 1/16 .075 .075 53JJ8XGM 53JJ8XCM
60 60 3/32 1/16 .156 .075 53KJ8XGM 53KJ8XCM
50 50 3/32 3/32 .156 .150 53KK8XGM 53KK8XCM
30 30 1/8 1/16 .230 .075 53NJ8XGM 53NJ8XCM
30 30 1/8 3/32 .230 .150 53NK8XGM 53NK8XCM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (53JJ8XGM-120/60) REPAIR PACK (K53JJX-AC)

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6.0 to 575V AC 60 HZ. and 5.4 to 515V AC 50 HZ. — 3.0 to 300V DC
Nominal Power: AC — 6.0 Watts, DC — 7.0 Watts
Coil Construction: Molded and potted Class F. (Class H optional)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8" NPT (other ports available).*
Housing: Grommet and 1/2" NPT conduit - many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.38 lb Conduit Valve: 0.44 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Alternate Elastomers, Low Wattage, Spade Terminal Coil and Explosion Proof

* Consult representative or factory for options and specifications.

Series 50 General Purpose Valves Conduit


MODEL 53
3WNC PIPED EXHAUST
CONDUIT CONNECTION

MODEL 53 10-32 PORTS
3WNC PIPED EXHAUST
CONDUIT CONNECTION

MODEL 53 BODY OPTION "E"
3WNC PIPED EXHAUST
CONDUIT CONNECTION

MODEL 53 BODY OPTION "O"
3WNC PIPED EXHAUST
CONDUIT CONNECTION

MODEL 53 BODY OPTION "R"
3WNC PIPED EXHAUST
CONDUIT CONNECTION

MODEL 53 METERED BODY
3WNC PIPED EXHAUST
CONDUIT CONNECTION

MODEL 53 STUD MOUNT BODY
3WNC PIPED EXHAUST
CONDUIT CONNECTION
