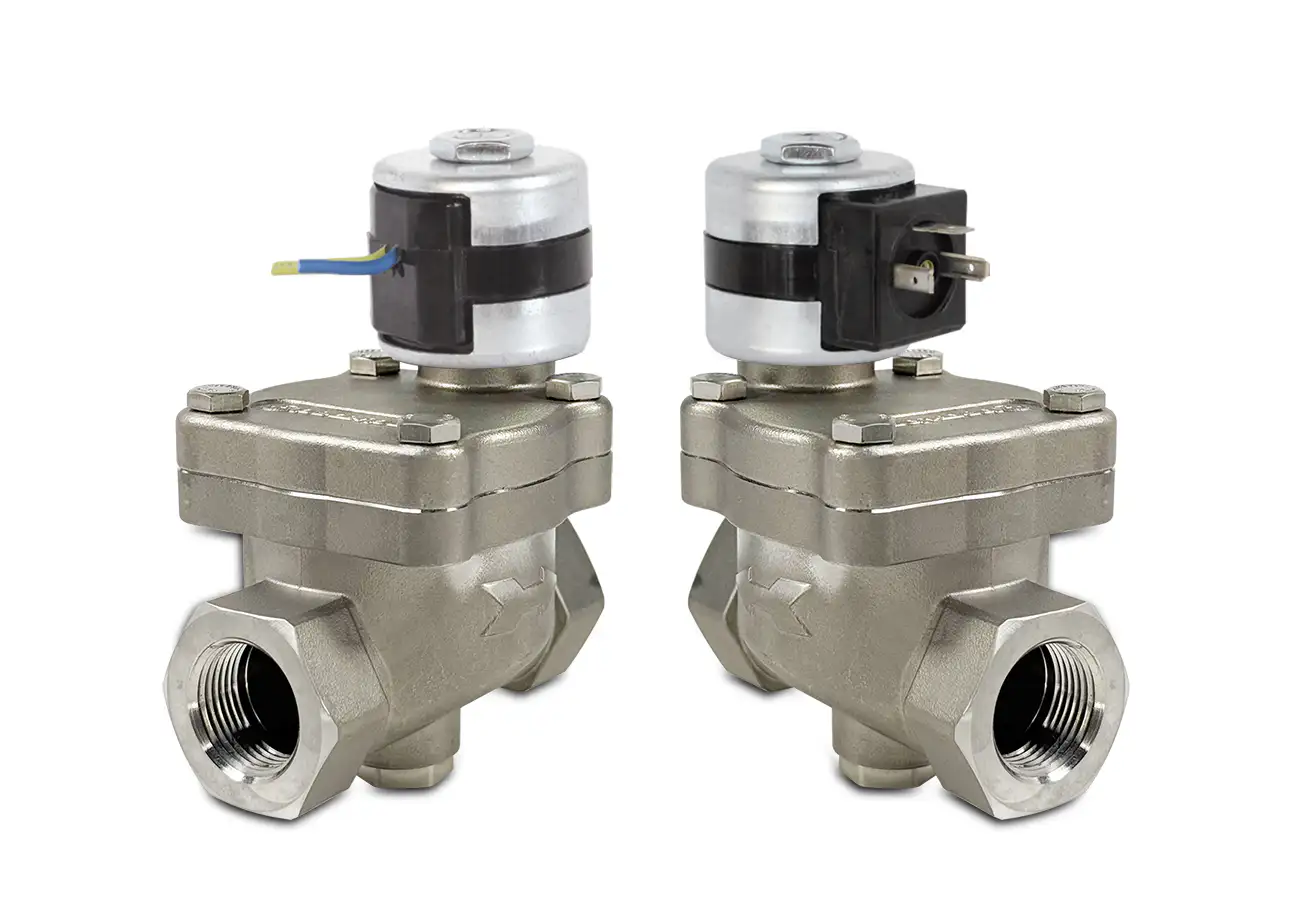

Series 80 828 Magnetic Latching Valve

Series 80 Model 828 Magnetic Latching

Large Orifice, Internally Piloted
2-Way Normally Closed Valve

Peter Paul offers a line of large orifice solenoid valves to address process industry requirements for high flow rate or quick dump and fill capacity. These DC powered valves are also suited for low pressure gas and liquid applications. Port sizes for pilot lift, two way normally closed versions range from 1/2” to 3” NPT, with pressure ratings from 3 to 200 PSI.

• Large orifice sizes for high flow applications.
• Body is made of brass forgings or 316 stainless steel.
• Operates on differential pressure — Internal Pilot.
• NPT threaded connections.
• Same coils and housings as our popular 20 Series.

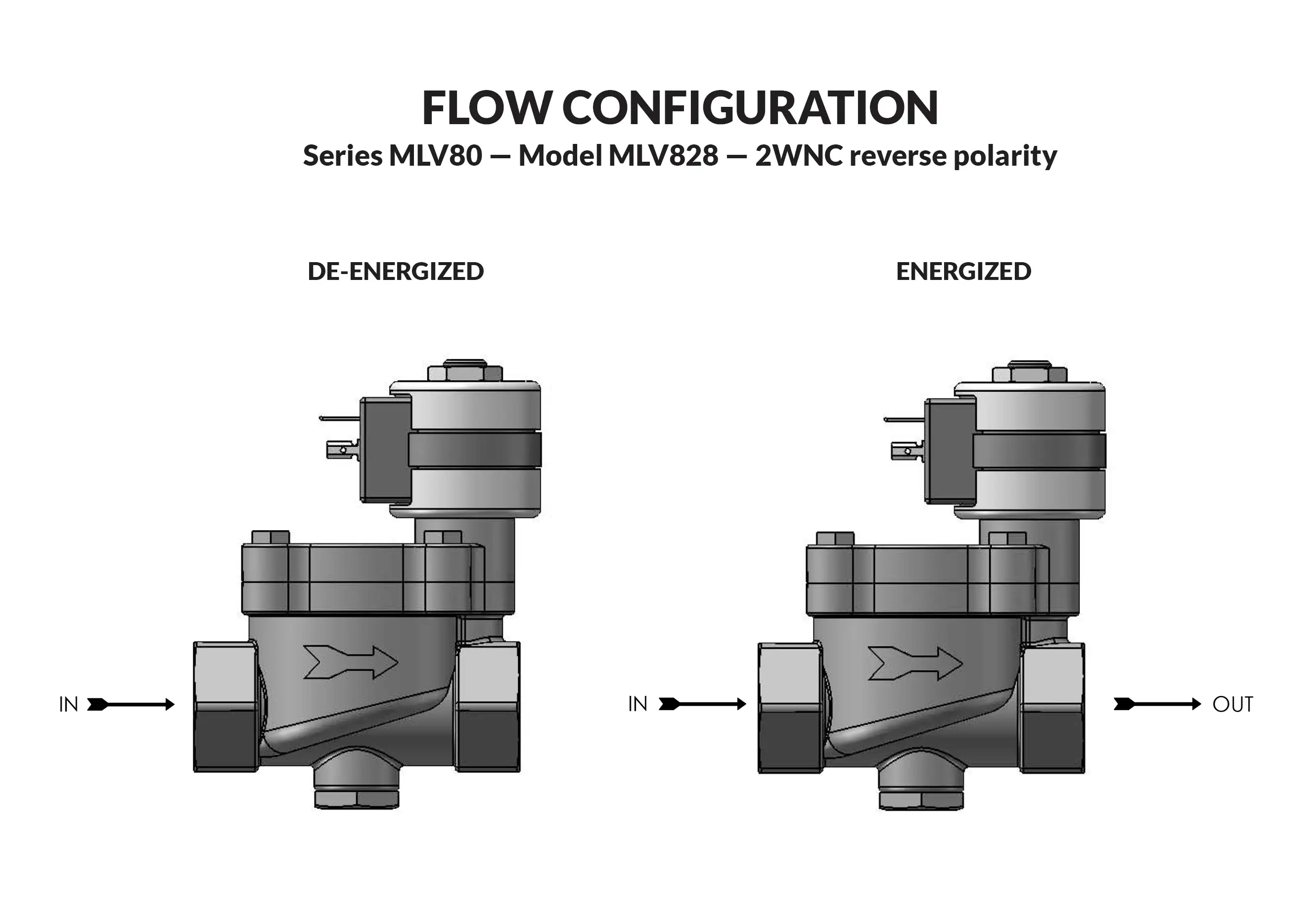

828flow

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING
  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
MIN. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR PIPE SIZE VALVE NUMBER
DC
LEADED COIL DIN COIL
200 3 1/2 4.0 1/2 NPT 828B12DGLM 828B12DELM
200 3 3/4 5.8 3/4 NPT 828Y19DGLM 828Y19DELM
200 3 1 13.0 1 NPT 828D13DGLM 828D13DELM
200 3 1 1/2 29.0 1 1/2 NPT 828E14DGLM 828E14DELM
200 3 2 46.0 2 NPT 828F16DGLM 828F16DELM
200 3 3 76.0 2 1/2 NPT 828W17DGLM 828W17DELM
200 3 3 98.0 3 NPT 828W18DGLM 828W18DELM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY (DC ONLY) TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (828B12DELM 12/DC) REPAIR PACK (K828BDL-DC)

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with Buna seals. Hot water, steam, gasoline and many oils require special seal materials. Consult representative or factory.(Series 80 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Minimum Operating Pressure Differentials: 3 PSI
Leakage: Bubble tight

ELECTRICAL CHARACTERISTICS

Coil Voltage: 3.6 to 28V DC
Nominal Power: DC — 10 Watts
Coil Construction: Molded
Operating Speed: Up to 100 CPM

MECHANICAL CHARACTERISTICS

Body: Brass (Std.) — Stainless Steel (Opt.)
Internal Components: Stainless Steel (Std.)
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Housing: Lead wires and DIN style connector, female DIN style mating connector No. 20-198 available.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Repair Packs: See table above.
Options: Alternate Elastomers

* Consult representative or factory for options and specifications.

SERIES 80 MODEL MLV828 2WNC MAGNET LATCHING DIN COIL


2WNC MAGNET LATCHING DIN COIL
1-1/2" NPT PORTS

2WNC MAGNET LATCHING DIN COIL
1/2" NPT PORTS

2WNC MAGNET LATCHING DIN COIL
1" NPT PORTS

2WNC MAGNET LATCHING DIN COIL
2-1/2" NPT PORTS

2WNC MAGNET LATCHING DIN COIL
2"NPT PORTS

2WNC MAGNET LATCHING DIN COIL
3/4" NPT PORTS

2WNC MAGNET LATCHING DIN COIL
3" NPT PORTS

SERIES 80 MODEL 828 2WNC MAGNET LATCHING COIL WITH LEADS


2WNC MAGNET LATCHING COIL WITH LEADS
1-1/2" NPT PORTS

2WNC MAGNET LATCHING COIL WITH LEADS
1/2" NPT PORTS

2WNC MAGNET LATCHING COIL WITH LEADS
1" NPT PORTS

2WNC MAGNET LATCHING COIL WITH LEADS
2-1/2" NPT PORTS

2WNC MAGNET LATCHING DIN COIL
2"NPT PORTS

2WNC MAGNET LATCHING COIL WITH LEADS
3/4" NPT PORTS

2WNC MAGNET LATCHING COIL WITH LEADS
3" NPT PORTS
