Series 20 Model 22 Submersible Valve

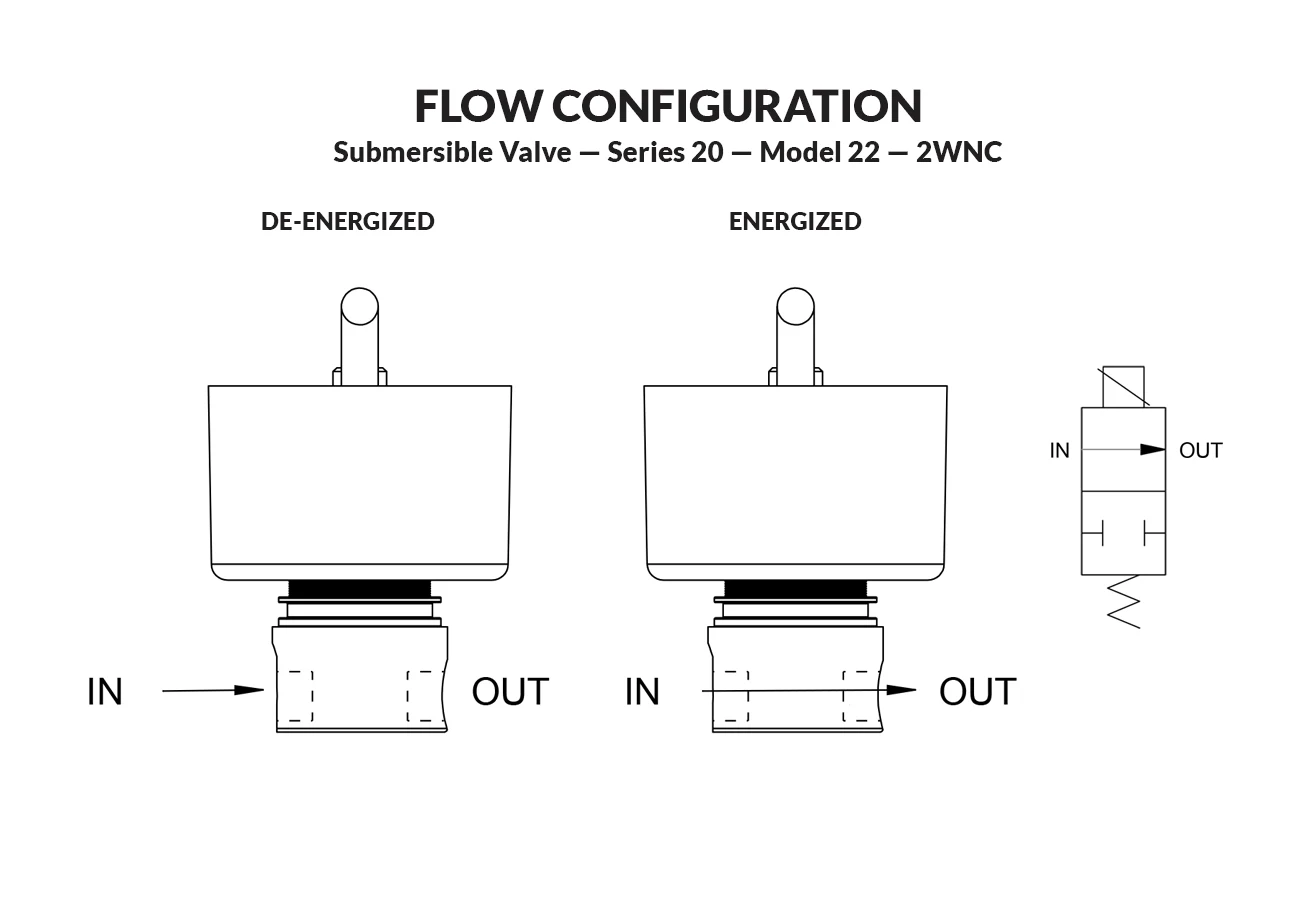

2-WAY NORMALLY CLOSED

The submersible valves are watertight and corrosion resistant for direct deep sea Ocean submersion.

Depths to 1000+ feet
Nickel plated Brass Body
Plastic Epoxy Coil & housing.
Media pressures up to 1350 PSI
Engineered to aid with environmental causes.

Tabs

Specifications

MAX. OPER. PRESS. DIFF.	ORIFICE SIZE	CV FACTOR	1/4 NPT PORT
DC			STANDARD COIL

1350	1/32	.024	22G6✩D#W-△
550	3/64	.052	22H6✩D#W-△
325	1/16	.095	22J6✩D#W-△
160	3/32	.156	22K6✩D#W-△
90	1/8	.284	22N6✩D#W-△
70	5/32	.404	22O6✩D#W-△
30	3/16	.500	22P6✩D#W-△

✩: Body Style: Replace ✩ with desired code - D = Standard Body, G = Standard body with SAE Gauge Port Option, S = SAE ports with SAE Gauge Port, R = ¼” IN side port & ¼” OUT bottom port (No Gauge Port)

#: Replace # with desired code – 3 = 3 PIN Cable, 6 = 6 PIN Cable, 8 = 8 PIN Cable, 9 = 9 PIN Cable

△ Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

* FKM seals not recommended for pressure ratings above 500 PSI.

Operating Conditions:

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

10,000 PSI

Leakage:

Bubble tight for standard valves.

Submersible Depth:

1000+ feet

Electrical Characteristics:

Coil Voltage:

9/DC, 12/DC, 18/DC & 24/DC

Nominal Power:

13.5 Watts

Coil Construction:

Plastic Epoxy Coil & Housing, Momentary Latching Coil Available

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Nickel Plated Brass

Internal Components:

Stainless Steel

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

1/4" NPT. Optional SAE Gauge Port available

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

1.13 lb

Options:

Consult factory

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

SERIES 20 2WNC SUBMERSIBLE VALVES

MODEL 22 1/4-18 NPT
2WNC CONDUIT CONNECTION

* Consult representative or factory for options and specifications
