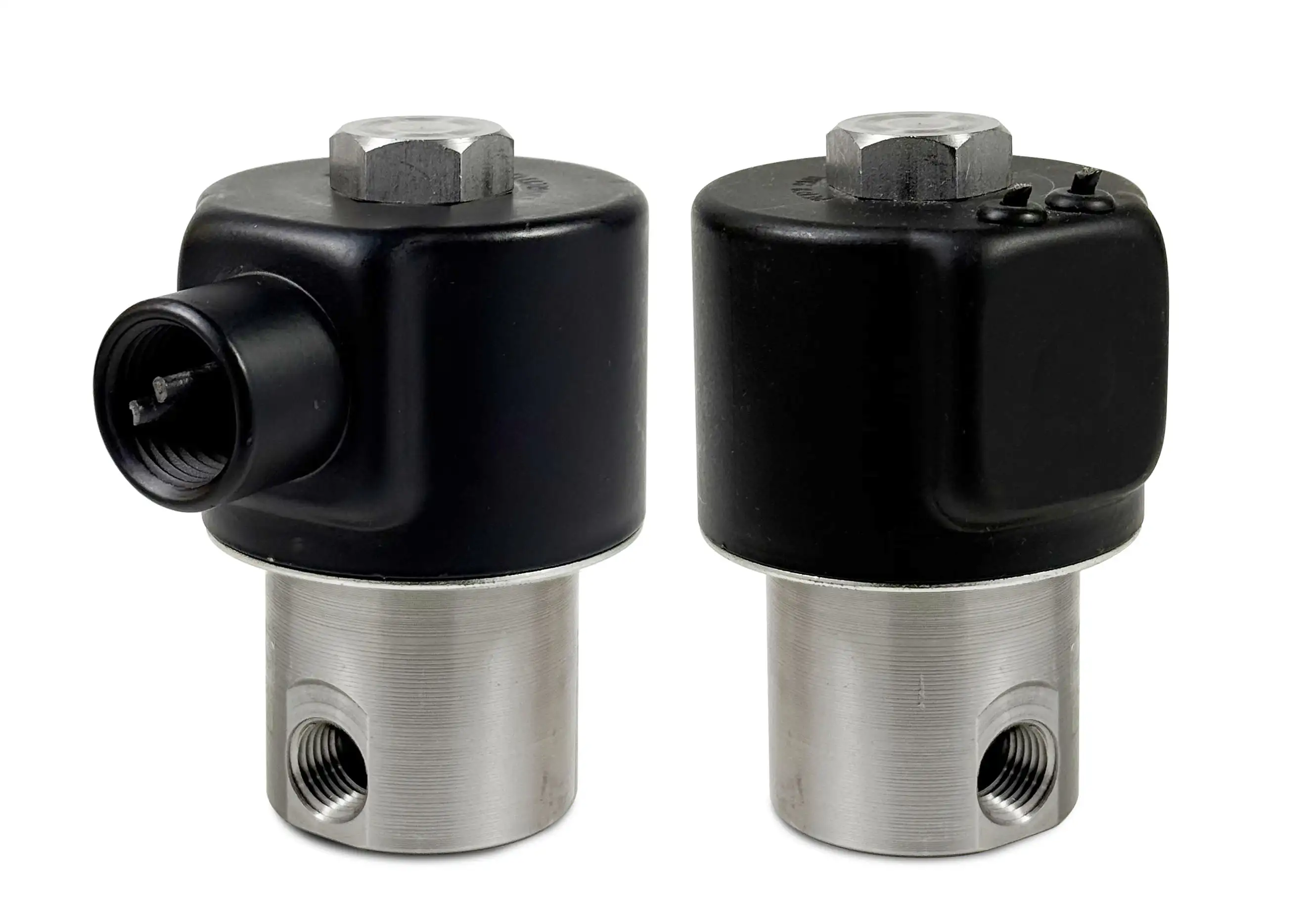

2-WAY NORMALLY CLOSED

Super valves that have ratings that formerly required valves of much greater size. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.
• Largest direct acting (non-piloted) valve we manufacture.
• Large orifice.
• High flow.
• Will operate effectively at very low pressures or vacuum.

Model-72.pdf

Tabs

Specifications

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE	CV FACTOR	VALVE NUMBER GROMMET HOUSING	CONDUIT HOUSING
AC	DC	N.C.	N.C.	1/4 NPT PORTS	1/4 NPT PORTS

500	500	3/32	.22	72K9DGM	72K9DCM
300	300	1/8	.35	72N9DGM	72N9DCM
225	225	5/32	.45	72O9DGM	72O9DCM
140	140	3/16	.55	72P9DGM	72P9DCM
100	100	1/4	.78	72R9DGM	72R9DCM

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 70 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

4000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12 to 1150V AC 60 HZ. and 11 to 1035V AC 50 HZ. — 2.5 to 220V DC

Nominal Power:

AC — 18.0 Watts DC — 16.0 Watts

Coil Construction:

Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel (Std.) or Brass (Opt.)

Internal Components:

Stainless Steel

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

Standard 1/4" NPT (other ports available).*

Housing:

Grommet and 1/2" NPT conduit - many options available.*

Listings:

Most valves are UL and CSA listed.*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

Grommet Valve: 2.00 lb Conduit Valve: 2.06 lb

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering and Alternate Elastomers

Drawings

Drawings:

Series 70 General Purpose Valves Conduit

MODEL 72 1/4-18 NPT
2WNC CONDUIT CONNECTION

MODEL 72 BODY OPTION "E"
2WNC
CONDUIT CONNECTION

MODEL 72 BODY OPTION "O"
2WNC
CONDUIT CONNECTION

MODEL 72 BODY OPTION "R"
2WNC
CONDUIT CONNECTION

MODEL 72 1/4-18 NPT
2WNC
CONDUIT CONNECTION

MODEL 72 METERED BODY
2WNC
CONDUIT CONNECTION

Series 70 General Purpose Valves Conduit/Bracket Connection

MODEL 72 1/4-18 NPT
2WNC CONDUIT/BRACKET CONNECTION

MODEL 72 BODY OPTION "E"
2WNC CONDUIT/BRACKET CONNECTION

MODEL 72 BODY OPTION "O"
2WNC
CONDUIT/BRACKET CONNECTION

MODEL 72 BODY OPTION "R"
2WNC
CONDUIT/BRACKET CONNECTION

MODEL 72 MANUAL OVERRIDE
2WNC
CONDUIT/BRACKET CONNECTION

Series 70 General Purpose Valves Grommet

MODEL 72 1/4-18 NPT
2WNC
GROMMET WITH LEADS

MODEL 72 BODY OPTION "E"
2WNC
GROMMET WITH LEADS

MODEL 72 BODY OPTION "O"
2WNC
GROMMET WITH LEADS

MODEL 72 BODY OPTION "R"
2WNC
GROMMET WITH LEADS

MODEL 72 1/4-18 NPT
2WNC
GROMMET WITH LEADS

MODEL 72 METERED BODY
2WNC
GROMMET WITH LEADS

Series 70 General Purpose Valves Splice Box

MODEL 72 1/4-18 NPT
2WNC
SPLICE BOX CONNECTION

MODEL 72 BODY OPTION "E"
2WNC
SPLICE BOX CONNECTION

MODEL 72 BODY OPTION "O"
2WNC
SPLICE BOX CONNECTION

MODEL 72 BODY OPTION "R"
2WNC
SPLICE BOX CONNECTION

MODEL 72 MANUAL OVERRIDE
2WNC
SPLICE BOX CONNECTION

MODEL 72 METERED BODY
2WNC
SPLICE BOX CONNECTION

Flow Chart Tab

Flow Chart:

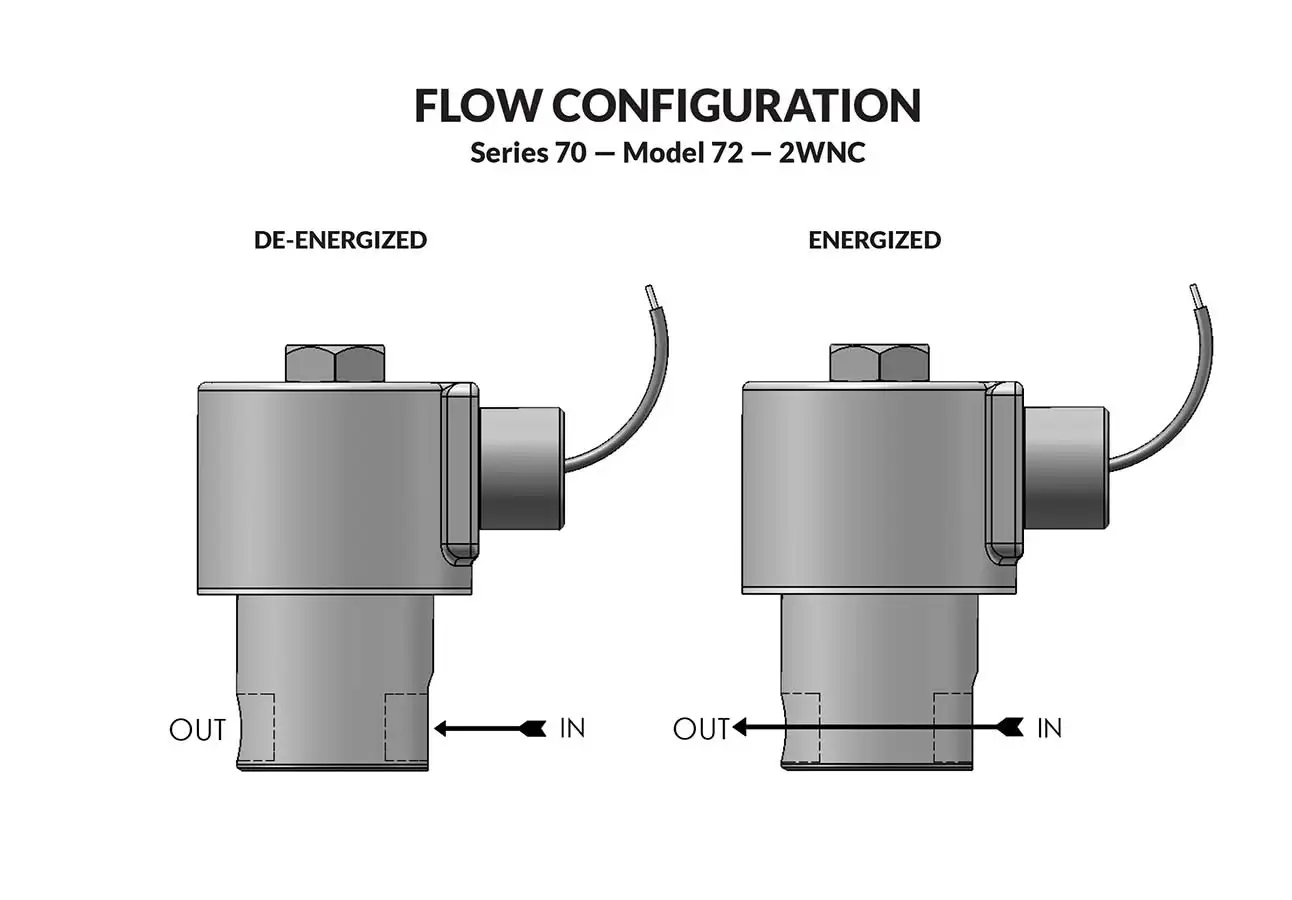

Flow chart Series 70

Series 70 Flow Chart

Nomenclature Tab

Nomenclature:

Nomenclature Chart (non 58 series)

Nomenclature, all valve series except 58

* Consult representative or factory for options and specifications
