Series 70 Model N72

2-WAY NORMALLY CLOSED

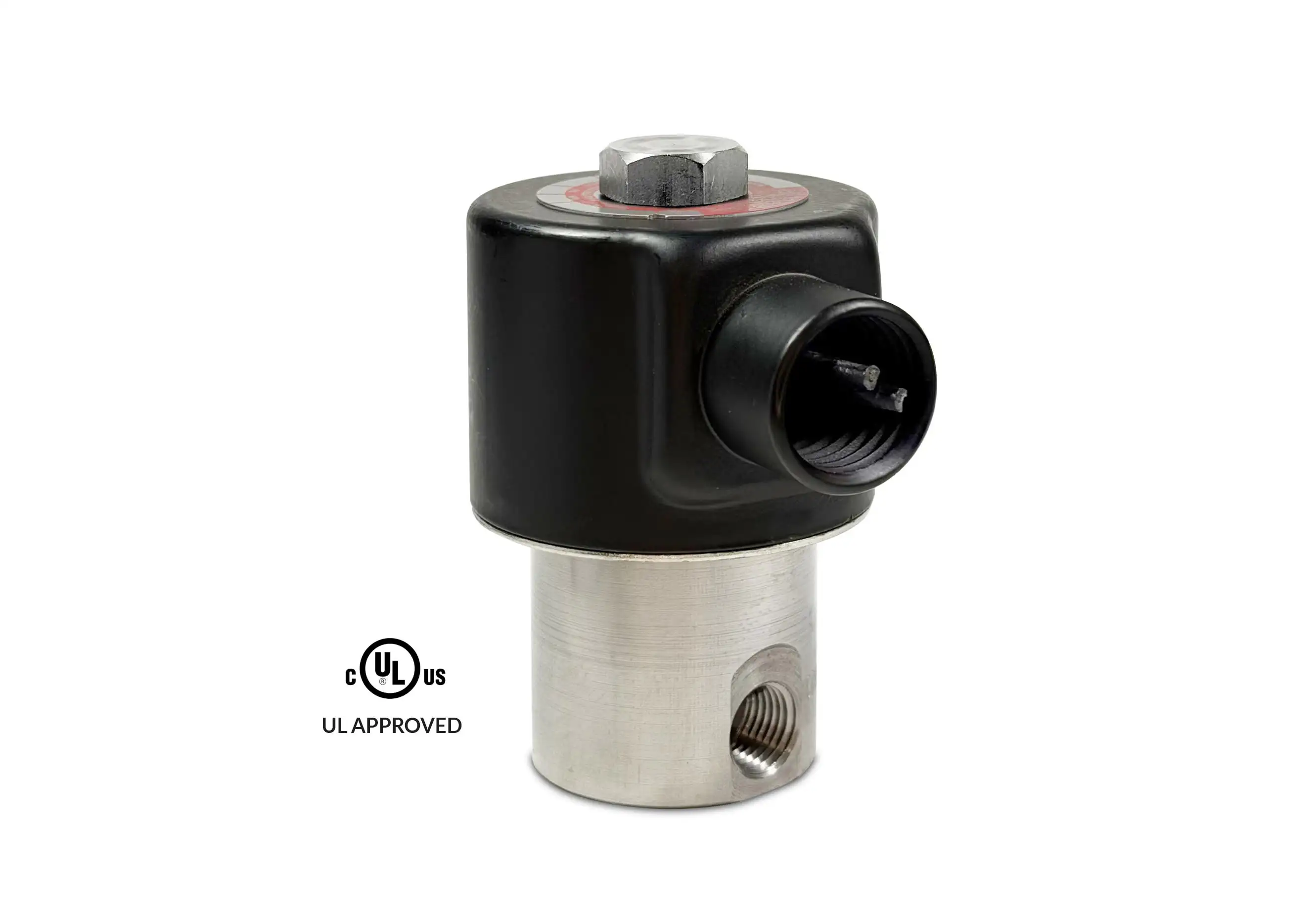

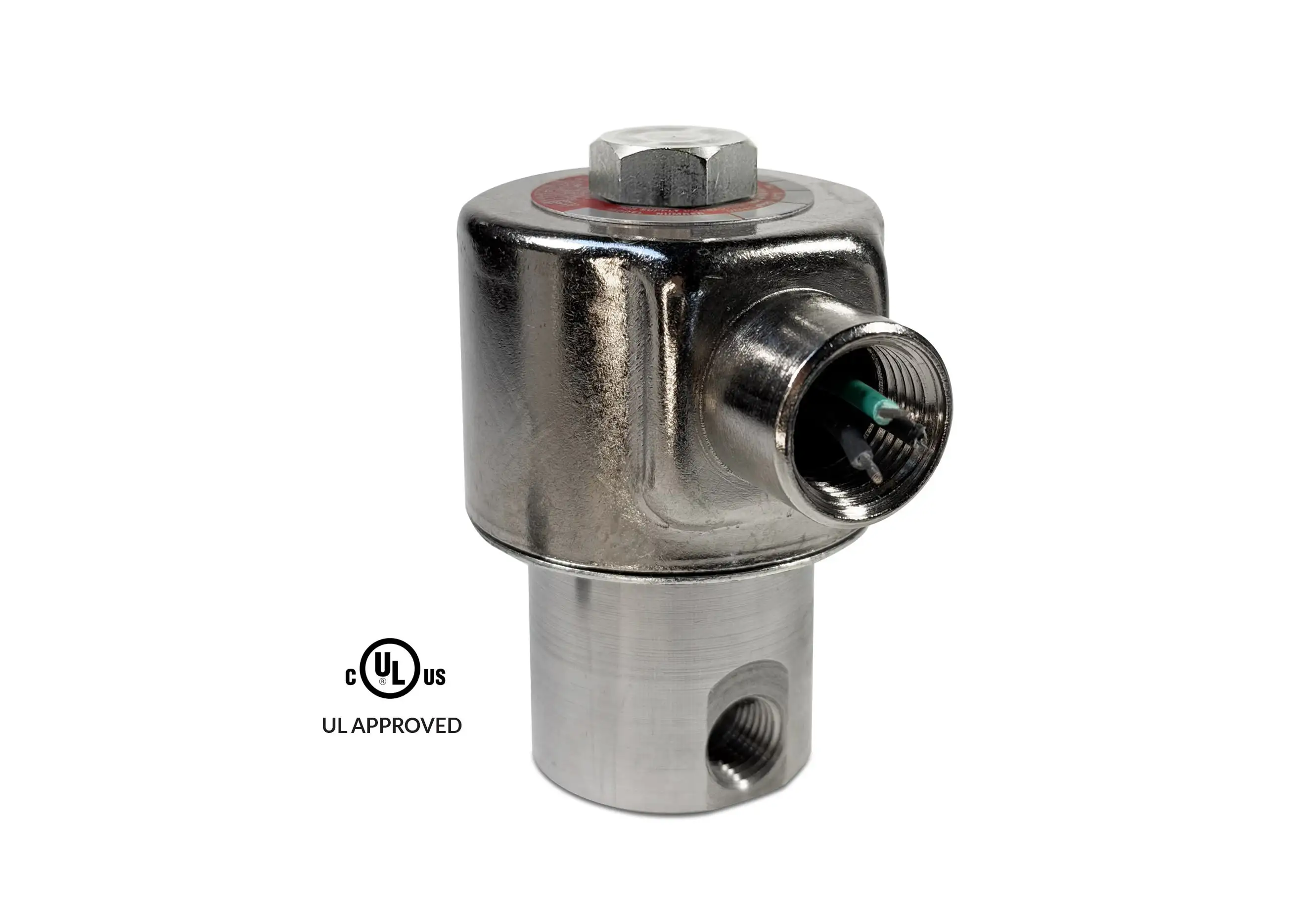

2-Way Normally Closed Valve The N70 line PeterPaul Hazardous location valves are UL listed and Certified for Non-Incendive Hazardous Locations — Class I, Div 2, Groups A,B,C and D - Class II, Div 2, Groups E,F and G - T3C Temperature rating

Largest direct acting (non-piloted) valve we manufacture.
Large orifice.
High flow.
Will operate effectively at very low pressures or vacuum.

Tabs

Specifications

VALVE SPECIFICATIONS

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE	CV FACTOR	CONDUIT HOUSING
AC	DC			1/4 NPT PORTS

500	500	3/32	.22	N72K9DCP-∆
300	300	1/8	.35	N72N9DCP-∆
225	225	5/32	.45	N72O9DCP-∆
140	140	3/16	.55	N72P9DCP-∆
100	100	1/4	.78	N72R9DCP-∆

Ordering Information:

Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (N72R9DCP 120/60) repair pack (KN72RDD AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (ON72RDDCP 120/60)

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 70 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

4000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 18.0 Watts DC — 16.0 Watts

Coil Construction:

Potted Class F. (Class H optional)

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel (Std.) or Brass (Opt.)

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

Standard 1/4" NPT (other ports available).*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

Conduit Valve: 2.06 lb

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering and Alternate Elastomers * Consult representative or factory for options and specifications.

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

Series 70 HAZARDOUS LOCATION VALVES

MODEL N72 1/4-18 NPT 3WNC CONDUIT CONNECTION

MODEL N72 1/4-18 NPT 3WNC CONDUIT WITH BRACKET

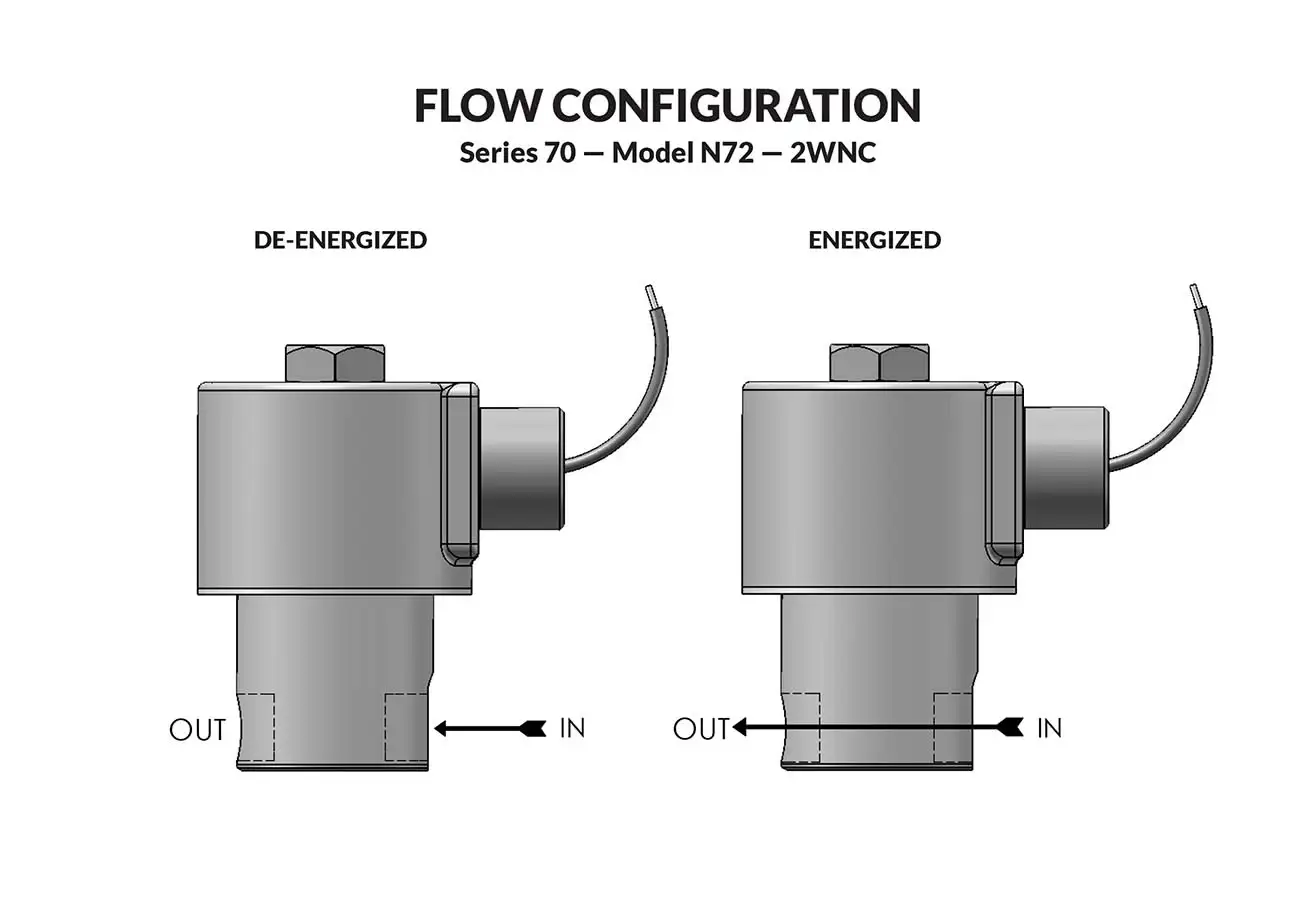

Flow Chart Tab

Flow chart Series 70

Nomenclature Tab

Nomenclature Chart (non 58 series)

Nomenclature, all valve series except 58

* Consult representative or factory for options and specifications
