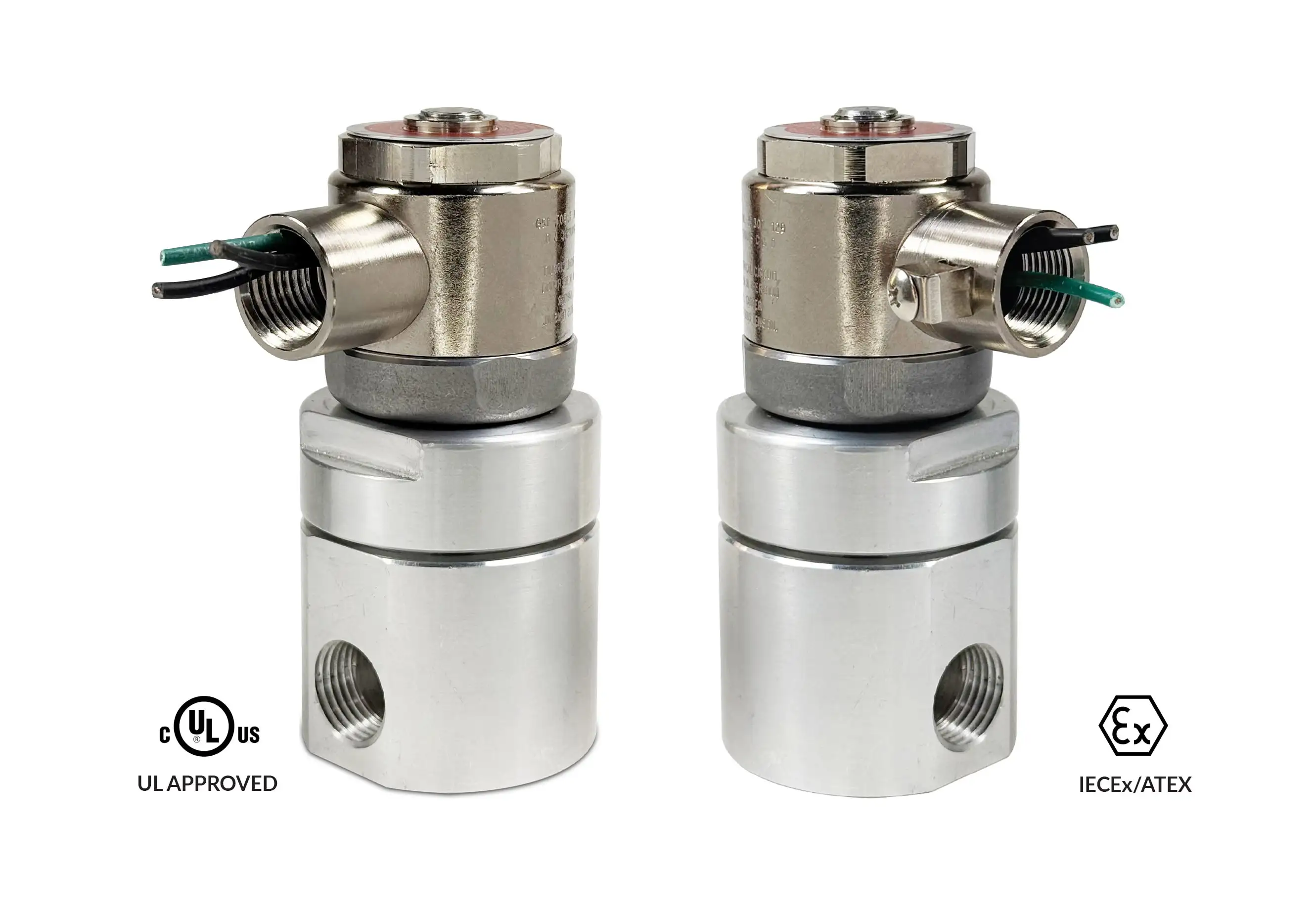

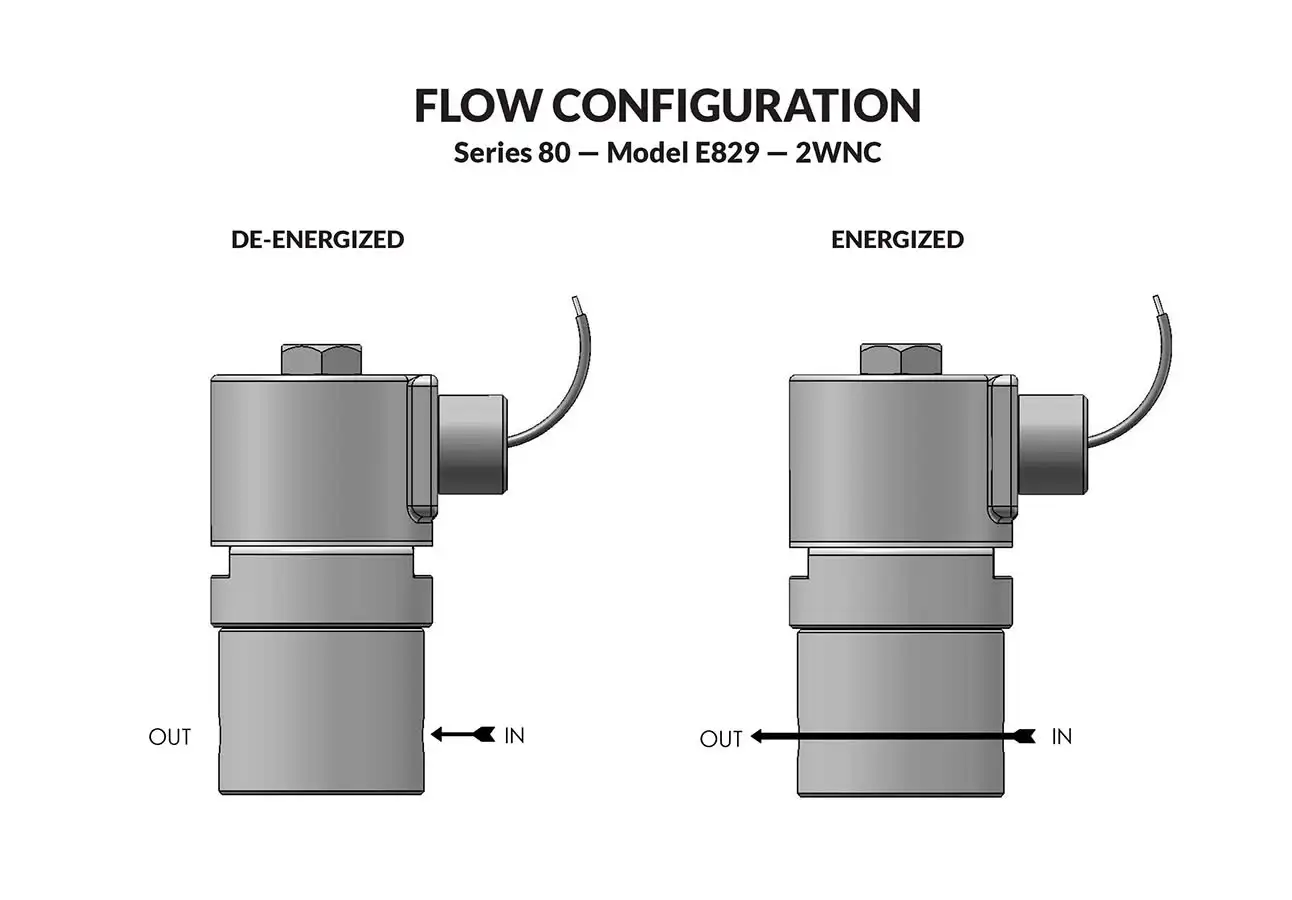

Series 80 Model E829 C/I Rated

2-WAY NORMALLY CLOSED

Large Orifice, Linked Piloted
PeterPaul offers a line of Hazardous Location rated, large orifice Automatic Safety Shut Off Valves designed specifically for gas appliances. These valves meet the standards for Commercial/Industrial (C/I) Safety Shut Off Valves per ANSI Z21.21 (CSA 6.5). They are well suited for use in heating equipment, furnaces, ovens, kilns, boilers and gas generators.

Tabs

Specifications

MAX. OPER. PRESS. DIFF.		MIN. OPER. PRESS. DIFF.	GAS CAPACITY BTU/Hr	CV FACTOR	PIPE SIZE	VALVE NUMBER
AC	DC


60	60	0	2,751,000	3.0	1/2 NPT	E829B11DCCP-SC

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (829B11DGM 120/60) repair pack (K829BD AC)

No operator available

Operating Conditions:

Media:

Fuel gas.

Valve Temperature Range:

– 40°F (-40°C) to 150°F (65°C) ambient and media.

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

1000 PSI

Leakage:

Bubble tight.

Electrical Characteristics:

Coil Voltage:

120/60 and 12, 24/DC

Nominal Power:

9.5 watts DC, 7.3 watts AC

Coil Construction:

Potted Class F

Operating Speed:

Up to 100 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Aluminum

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.).

Housing:

1/2" NPT conduit

Listings:

Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Repair Packs:

See table above.

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

Series 80 Internal Pilot Valve - Explosion Proof Housing

1/2" NPT PORTS 2WNC
EXPLOSION PROOF

Nomenclature Tab

Nomenclature Chart (non 58 series)

Nomenclature, all valve series except 58

* Consult representative or factory for options and specifications
