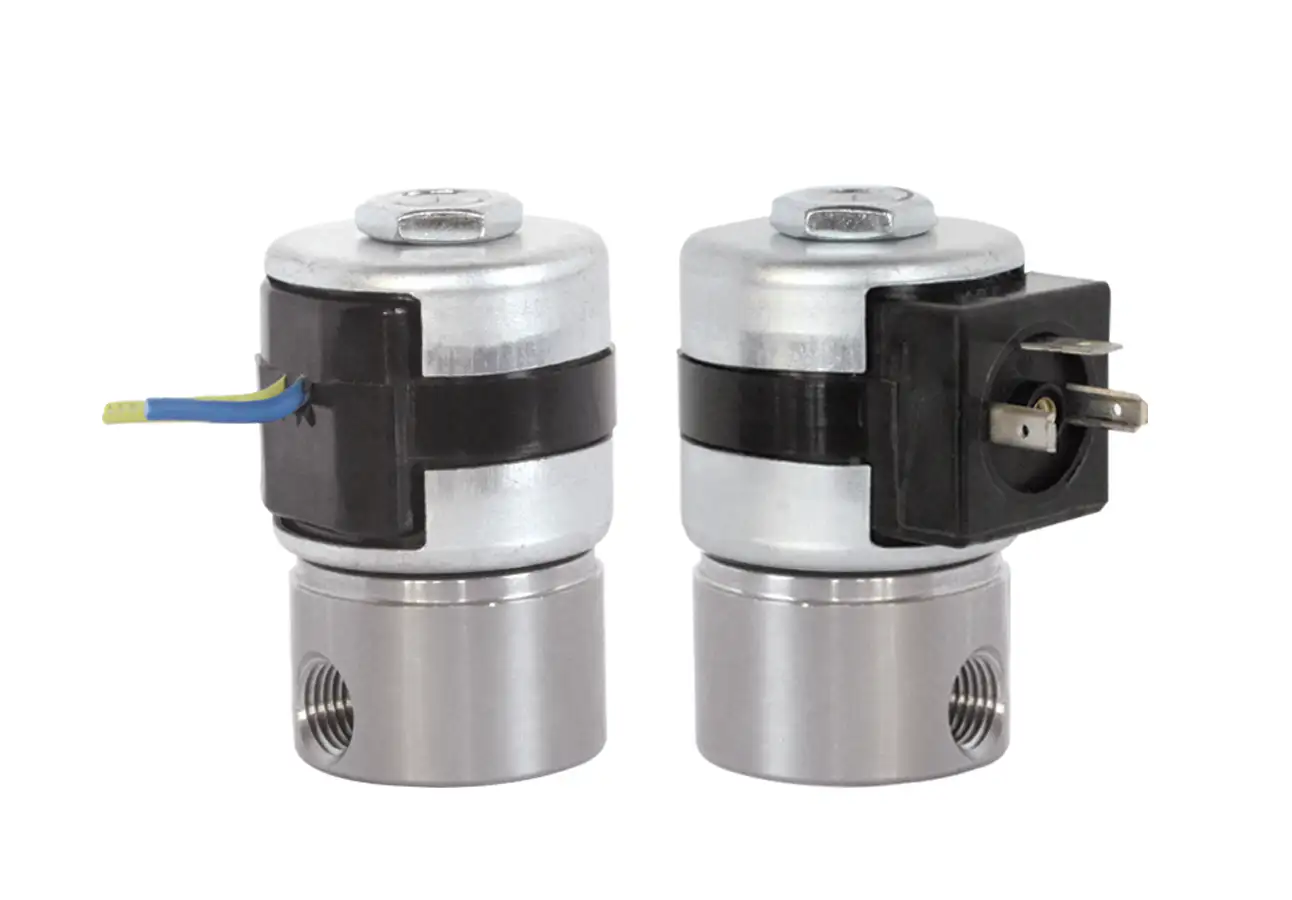

Series MLV 20 Model MLV 22

Series 20 Model 22 Magnetic Latching

2-Way Normally Closed Valve
This type of valve is often used in remote areas where continuous power may not be available or with battery-powered portable equipment where power capacity is limited. It is also valuable in equipment where coil heating, due to continuous application of power, is undesirable. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials.
• Valve is magnetic latching.
• Meets today's demand for economy of space.
• Uses power only during latching and un-latching.
• Great for medical and chemical analyzers.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

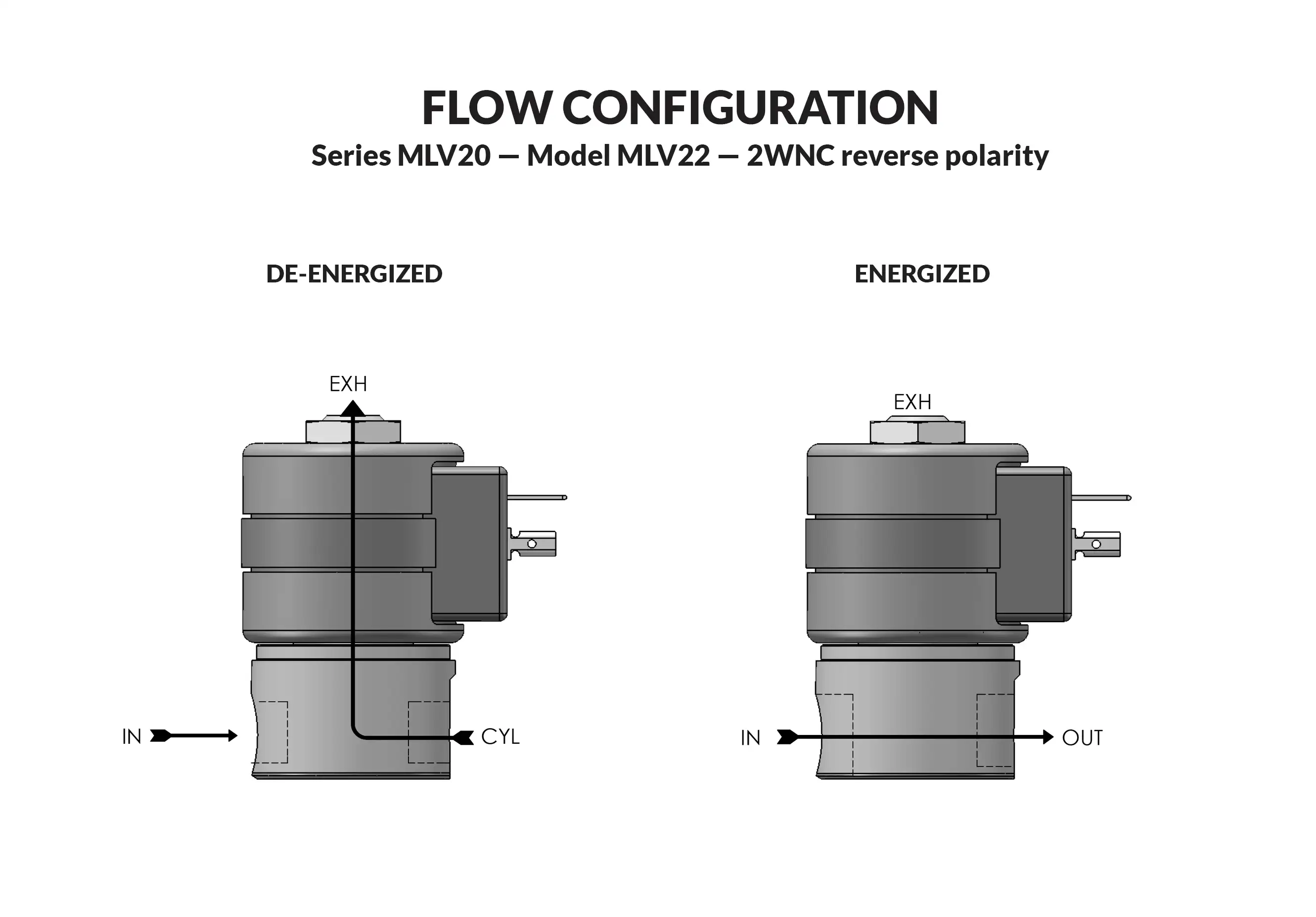

  • FLOW CHART
  • NOMENCLATURE
VALVE SPECIFICATIONS
MAX. OPER. VALVE NUMBER
PRESS. DIFF. ORFICE SIZE CV FACTOR DIN COIL LEADED COIL
DC N.O. N.O. 1/8 NPT PORTS 1/4 NPT PORTS 1/8 NPT PORTS 1/4 NPT PORTS
500 1/32 .024 22G7DELM 22G9DELM 22G7DGLM 22G9DGLM
235 3/64 .052 22H7DELM 22H9DELM 22H7DGLM 22H9DGLM
200 1/16 .095 22J7DELM 22J9DELM 22J7DGLM 22J9DGLM
125 3/32 .156 22K7DELM 22K9DELM 22K7DGLM 22K9DGLM
100 1/8 .214 22N7DELM 22N9DELM 22N7DGLM 22N9DGLM
50 5/32 .404 22O7DELM 22O9DELM 22O7DGLM 22O9DGLM
25 3/16 .500 22P7DELM 22P9DELM 22P7DGLM 22P9DGLM
5 1/4 .700 22R7DELM 22R9DELM 22R7DGLM 22R9DGLM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (22J7DELM-12/DC) REPAIR PACK (K22NDL-DC)

OPERATING CONDITIONS
Media: Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6 to 60V DC
Nominal Power: DC — 10.0 Watts

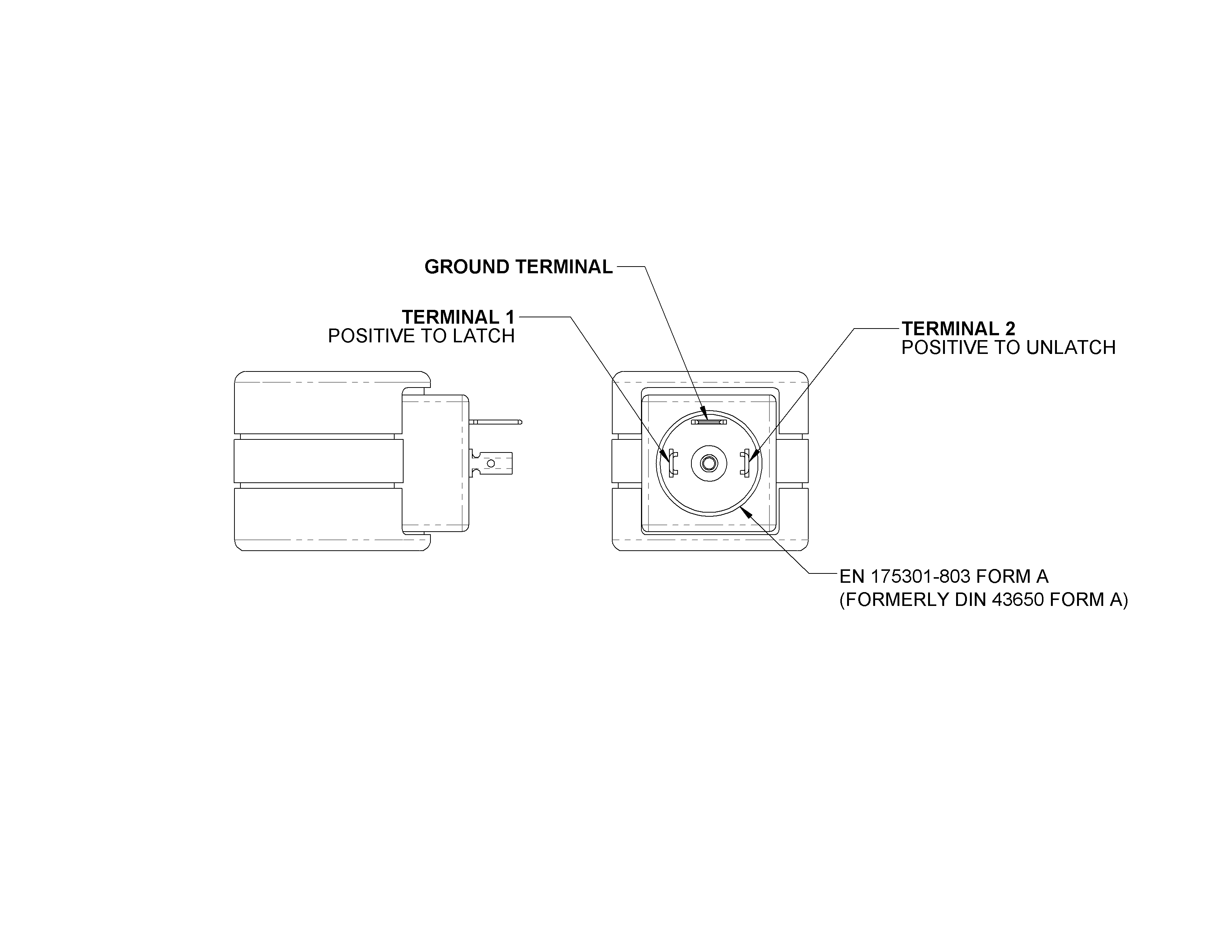

Coil Construction: Molded Class B with DIN 43650 Form A Connector (Std.), Leadwires (Opt.) For your convenience we have the female DIN style mating connector No. 20-198** available for an additional fee.*
Typical Response Time on Air: Approximate 30 millisecond pulse to energize and de-energize.
Operating Speed: Up to 600 CPM
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8” and 1/4” NPT (other ports available).*

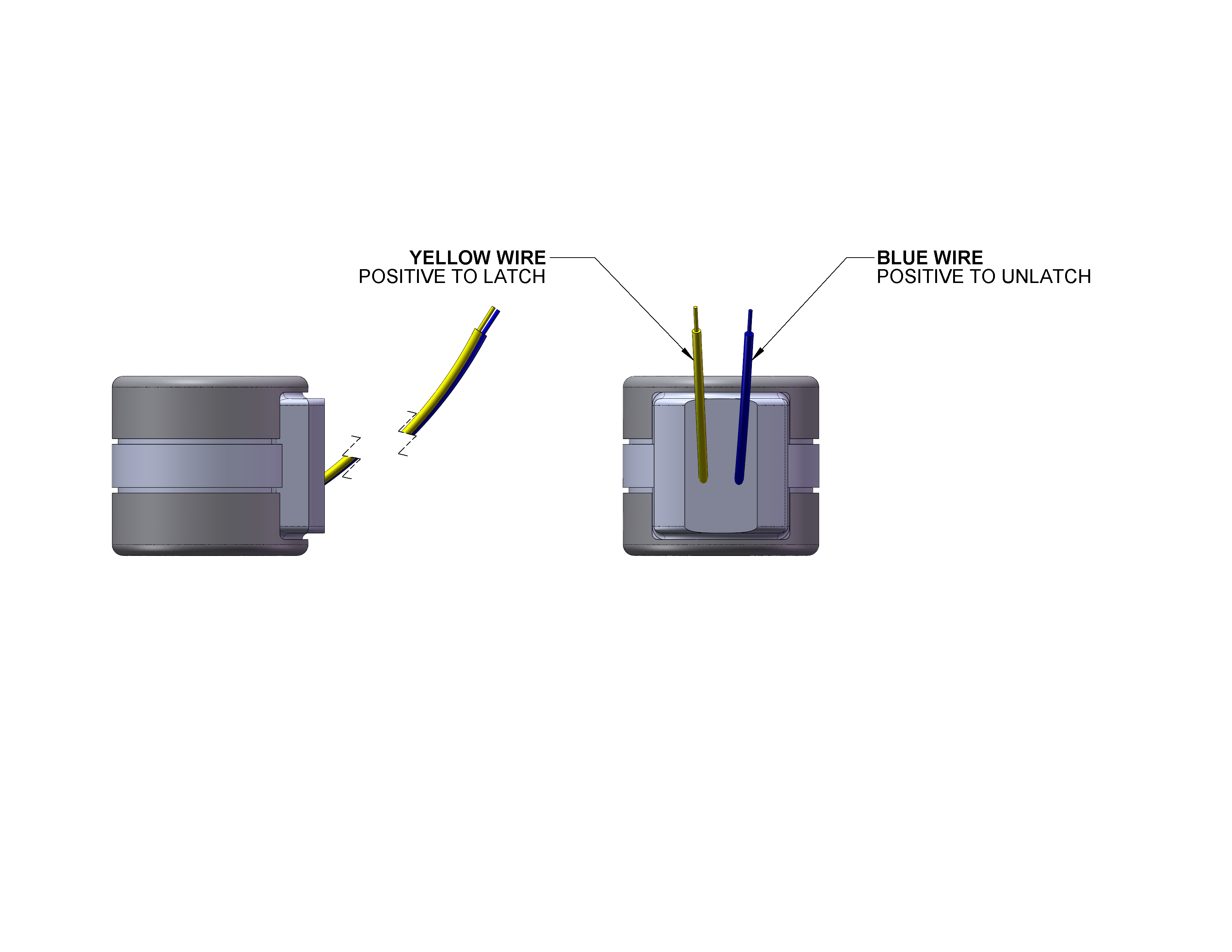

Housing: Leadwires and DIN Style Connector.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 1.2 lb average
Repair Packs: See table above.
Options: Alternate Port Locations, Metering and Alternate Elastomers* * Consult representative or factory for options and specifications.

Series 20 Model 22 Magnetic Latching

MODEL 22 1/4-18 NPT 2WNC MAGNETIC LATCHING COIL
MODEL 22 1/8-27 NPT 2WNC MAGNETIC LATCHING COIL
MODEL 22 BODY OPTION "E" 2WNC MAGNETIC LATCHING COIL
MODEL 22 BODY OPTION "O" 2WNC MAGNETIC LATCHING COIL
MODEL 22 BODY OPTION "R" 2WNC MAGNETIC LATCHING COIL
MODEL 22 MANUAL OVERRIDE 2WNC MAGNETIC LATCHING COIL
MODEL 22 METERING 2WNC MAGNETIC LATCHING COIL
MODEL 22 1/4-18 NPT 2WNC MAGNETIC LATCHING COIL WITH LEADS
MODEL 22 1/8-27 NPT 2WNC MAGNETIC LATCHING COIL WITH LEADS
MODEL 22 BODY OPTION "E" 2WNC MAGNETIC LATCHING COIL WITH LEADS
MODEL 22 BODY OPTION "O" 2WNC MAGNETIC LATCHING COIL WITH LEADS
MODEL 22 BODY OPTION "R" 2WNC MAGNETIC LATCHING COIL WITH LEADS
MODEL 22 MANUAL OVERRIDE 2WNC MAGNETIC LATCHING COIL WITH LEADS
MODEL 22 METERING 2WNC MAGNETIC LATCHING COIL WITH LEADS
