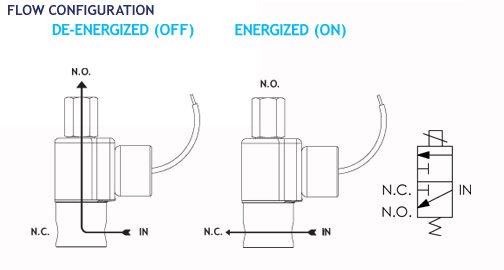

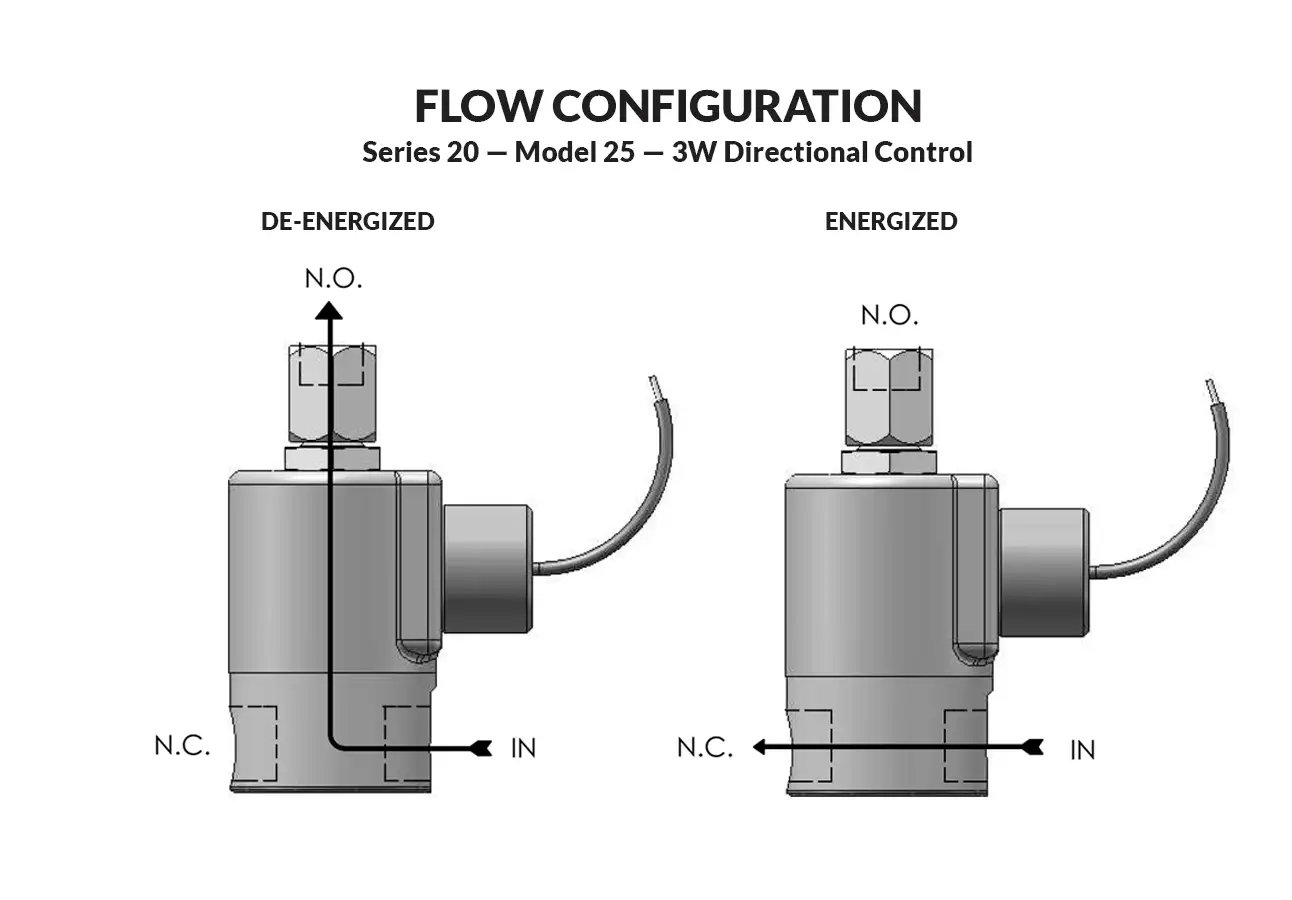

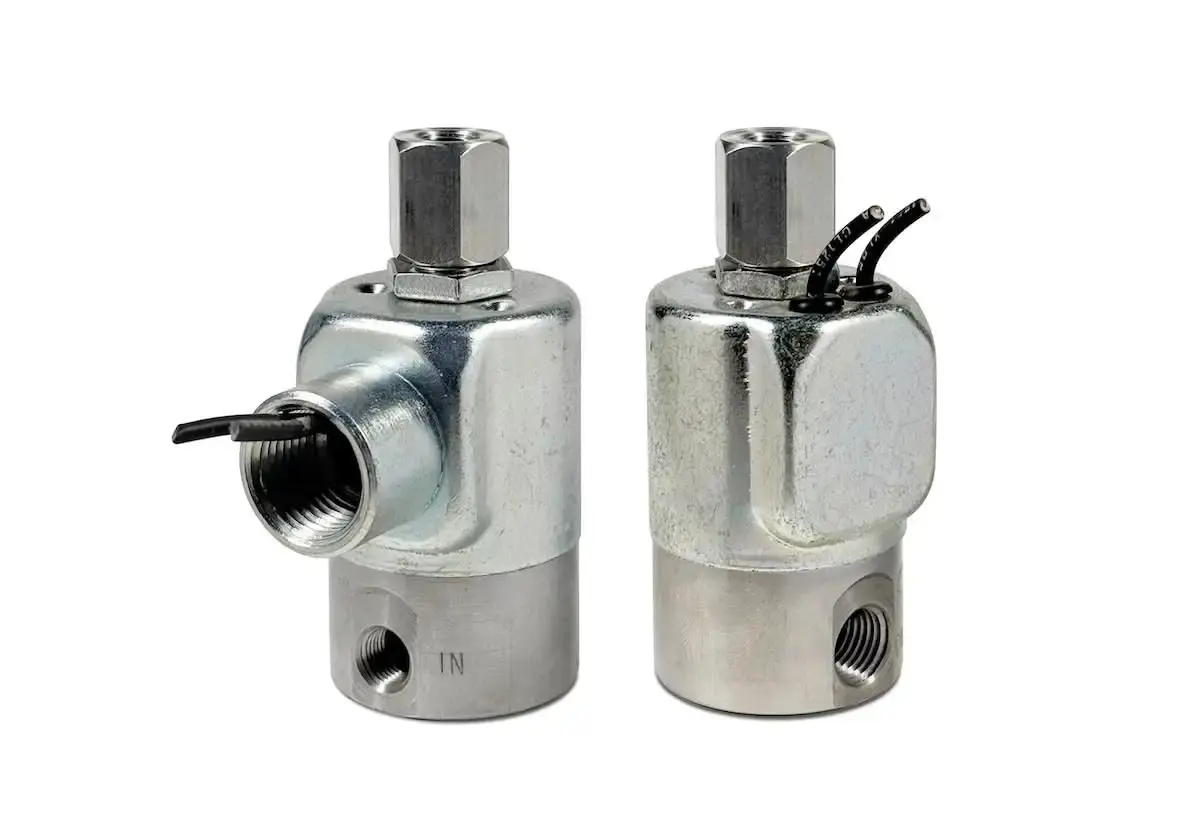

3-Way Directional Control Valve
A complete line of valves with a great selection of options and exceptional proven performance. The standard in the field. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. The flagship valve initially created for the fluid power industry. Heavy duty and made of stainless steel. A real workhorse with proven performance. It has the greatest amount of options available of all the valves. Wide range of orifice sizes from 1/32" to 1/8".
| + MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER GROMMET HOUSING | VALVE NUMBER CONDUIT HOUSING | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AC | DC | N.C. | N.O. | N.C. | N.O. | 1/8 NPT PORTS | 1/4 NPT PORTS | 1/8 NPT PORTS | 1/4 NPT PORTS | ||
| 500 | 500 | 1/32 | 1/32 | .024 | .024 | 25GG7XGM | 25GG9ZGM | 25GG7XCM | 25GG9ZCM | ||
| 235 | (400) | 235 | (300) | 3/64 | 3/64 | .052 | .052 | 25HH7XGM | 25HH9ZGM | 25HH7XCM | 25HH9ZCM |
| 200 | (225) | 200 | (200) | 1/16 | 3/64 | .095 | .052 | 25JH7XGM | 25JH9ZGM | 25JH7XCM | 25JH9ZCM |
| 150 | (225) | 150 | (200) | 1/16 | 1/16 | .095 | .095 | 25JJ7XGM | 25JJ9ZGM | 25JJ7XCM | 25JJ9ZCM |
| 100 | (150) | 100 | (125) | 3/32 | 3/32 | .156 | .156 | 25KK7XGM | 25KK9ZGM | 25KK7XCM | 25KK9ZCM |
| 100 | (125) | 100 | 1/8 | 3/32 | .284 | .156 | 25NK7XGM | 25NK9ZGM | 25NK7XCM | 25NK9ZCM | |
| 30 | (40) | 35 | (40) | 1/8 | 1/8 | .284 | .201 | 25NN7XGM^ | 25NN9ZGM^ | 25NN7XCM^ | 25NN9ZCM^ |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. For example: valve (25JJ7XGM 12/DC) repair pack (K25JJX DC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O25JJDXGM 12/DC)
Operating Conditions
- Media
- Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 8.7 Watts DC — 9.5 Watts
- Coil Construction
- Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Body
- Stainless Steel (Std.) or Brass (Opt.)
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- Standard 1/8" and 1/4" NPT (other ports available).*
- Housing
- Grommet and 1/2" NPT conduit - many options available.*
- Listings
- Most valves are UL and CSA listed.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- Grommet Valve: 1.13 lb Conduit Valve: 1.19 lb
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil, European Style DIN, Explosion Proof and Magnetic Latching Coil, Female DIN Style Connector Part Numbers DIN COIL (2 TERMINALS W/GROUND) #20-198 & DIN COIL (3 TERMINALS W/GROUND) #20-19102*
Series 20 General Purpose Valves Conduit
1/4-18 NPT 3-WAY DIRECTIONAL CONTROL CONDUIT CONNECTION
1/8-27 NPT 3-WAY DIRECTIONAL CONTROL CONDUIT CONNECTION
MANUAL OVERRIDE 3-WAY DIRECTIONAL CONTROL CONDUIT CONNECTION
METERING 3-WAY DIRECTIONAL CONTROL CONDUIT CONNECTION
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
Series 20 General Purpose Valves DIN
1/4-18 NPT 3-WAY DIRECTIONAL CONTROL DIN STYLE COIL
1/8-27 NPT 3-WAY DIRECTIONAL CONTROL DIN STYLE COIL
MANUAL OVERRIDE 3-WAY DIRECTIONAL CONTROL DIN STYLE COIL
METERING 3-WAY DIRECTIONAL CONTROL DIN STYLE COIL
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
Series 20 General Purpose Valves Grommet
1/4-18 NPT 3-WAY DIRECTIONAL CONTROL GROMMET WITH LEADS
1/8-27 NPT 3-WAY DIRECTIONAL CONTROL GROMMET WITH LEADS
MANUAL OVERRIDE 3-WAY DIRECTIONAL CONTROL GROMMET HOUSING WITH LEADS
METERING 3-WAY DIRECTIONAL CONTROL GROMMET HOUSING WITH LEADS
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
Series 20 General Purpose Valves Yoke Leads
1/4-18 NPT 3-WAY DIRECTIONAL CONTROL YOKE WITH LEADS
1/8-27 NPT 3-WAY DIRECTIONAL CONTROL YOKE WITH LEADS
BODY OPTION "E" 3-WAY DIRECTIONAL CONTROL MOLDED COIL WITH LEADS
MANUAL OVERRIDE 3-WAY DIRECTIONAL CONTROL YOKE WITH LEADS
METERING 3-WAY DIRECTIONAL CONTROL YOKE WITH LEADS
Series 20 General Purpose Valves Yoke Spades
1/4-18 NPT 3-WAY DIRECTIONAL CONTROL YOKE WITH SPADE TERMINALS
1/8-27 NPT 3-WAY DIRECTIONAL CONTROL YOKE WITH SPADE TERMINALS
MANUAL OVERRIDE 3-WAY DIRECTIONAL CONTROL YOKE WITH SPADE TERMINALS
METERING 3-WAY DIRECTIONAL CONTROL YOKE WITH SPADE TERMINALS
Series 20 General Purpose Valves Conduit/Bracket Connection
1/4-18 NPT 3-WAY DIRECTIONAL CONTROL CONDUIT/BRACKET CONNECTION
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
1/8-27 NPT 3-WAY DIRECTIONAL CONTROL CONDUIT/BRACKET CONNECTION
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
MANUAL OVERRIDE 3-WAY DIRECTIONAL CONTROL CONDUIT/BRACKET CONNECTION
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
METERING 3-WAY DIRECTIONAL CONTROL CONDUIT/BRACKET CONNECTION
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
Series 20 General Purpose Valves Grommet/Bracket Connection
1/4-18 NPT 3-WAY DIRECTIONAL CONTROL GROMMET/BRACKET WITH LEADS
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
1/8-27 NPT 3-WAY DIRECTIONAL CONTROL GROMMET/BRACKET WITH LEADS
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
MANUAL OVERRIDE 3-WAY DIRECTIONAL CONTROL GROMMET/BRACKET HOUSING WITH LEADS
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
METERING 3-WAY DIRECTIONAL CONTROL GROMMET/BRACKET HOUSING WITH LEADS
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
sales@peterpaul.com
Series 20 Operators Conduit
Series 20 Operators Conduit/Bracket Connection
Series 20 Operators DIN
Series 20 Operators Grommet
Series 20 Operators Grommet/Bracket Connection
Series 20 Operators Yoke Leads
Series 20 Operators Yoke Spades
Cv Flow Formulae
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Calculate Flow in GPM
PSI
GPM
Calculate Cv
GPM
PSI
Calculate P1−P2
GPM
PSI
Gas Flow P2 > 53% of P1 (subsonic)
Calculate Flow in CFM
PSIA
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
PSIA
°R
Calculate P1 (approx.)
CFM
PSIA
°R
PSIA
Calculate P2 (approx.)
CFM
PSIA
°R
PSIA
Gas Flow P2 < 53% of P1 (sonic)
Calculate Flow in CFM
PSIA
°R
CFM
Calculate Cv
CFM
PSIA
°R
Calculate P1
CFM
°R
PSIA
DISCLAIMER: Gas flow is only an approximation using Cv.
