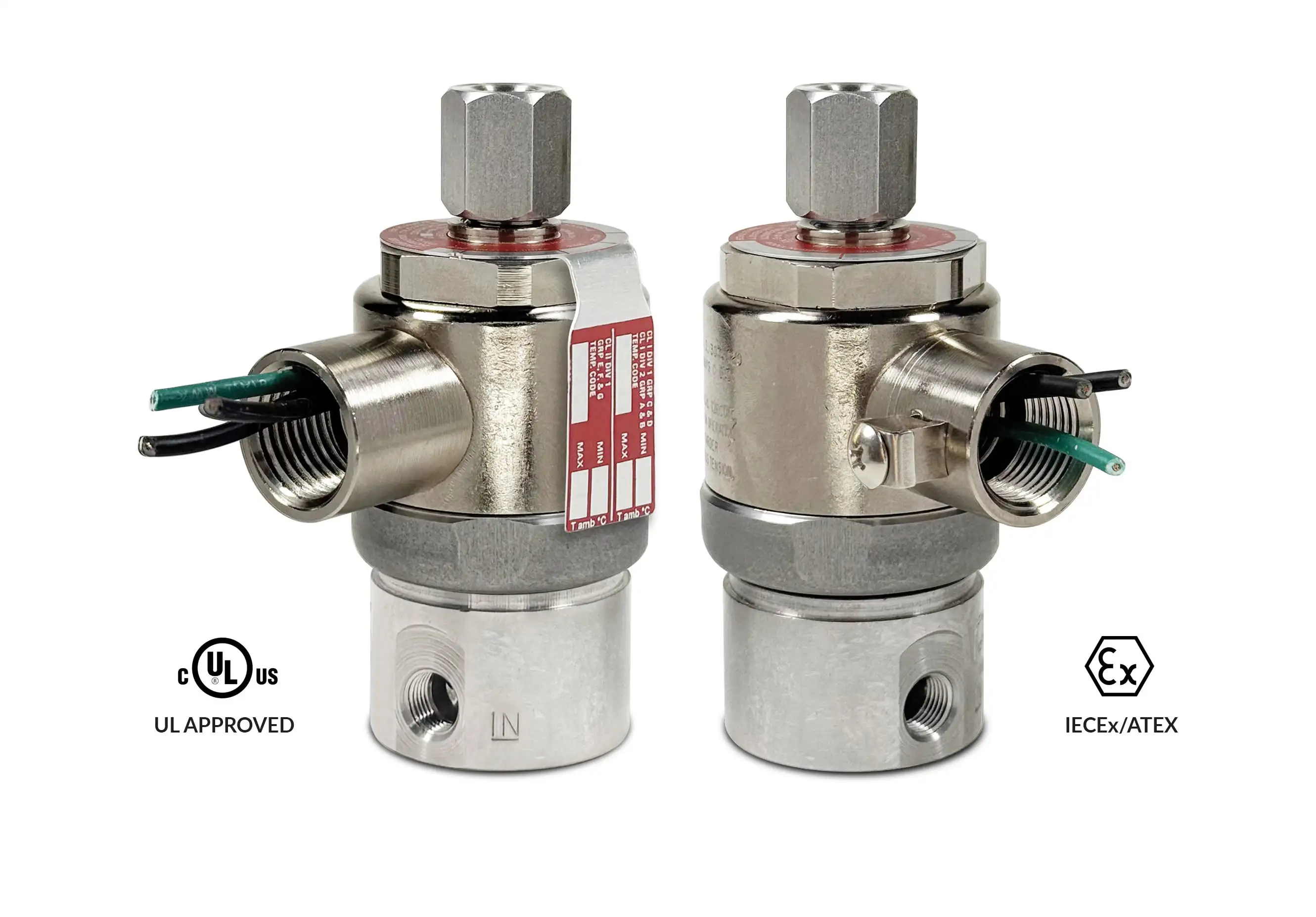

Series 20 Model E26

Hazardous Location
3-Way Multi-Purpose Valve

Peter Paul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.

• Explosion Proof
• The flagship valve initially created for fluid power industry.
• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• It has the greatest amount of options available of all the valves.
• Wide range of orifice sizes from 1/32" to 1/4".

56flow

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

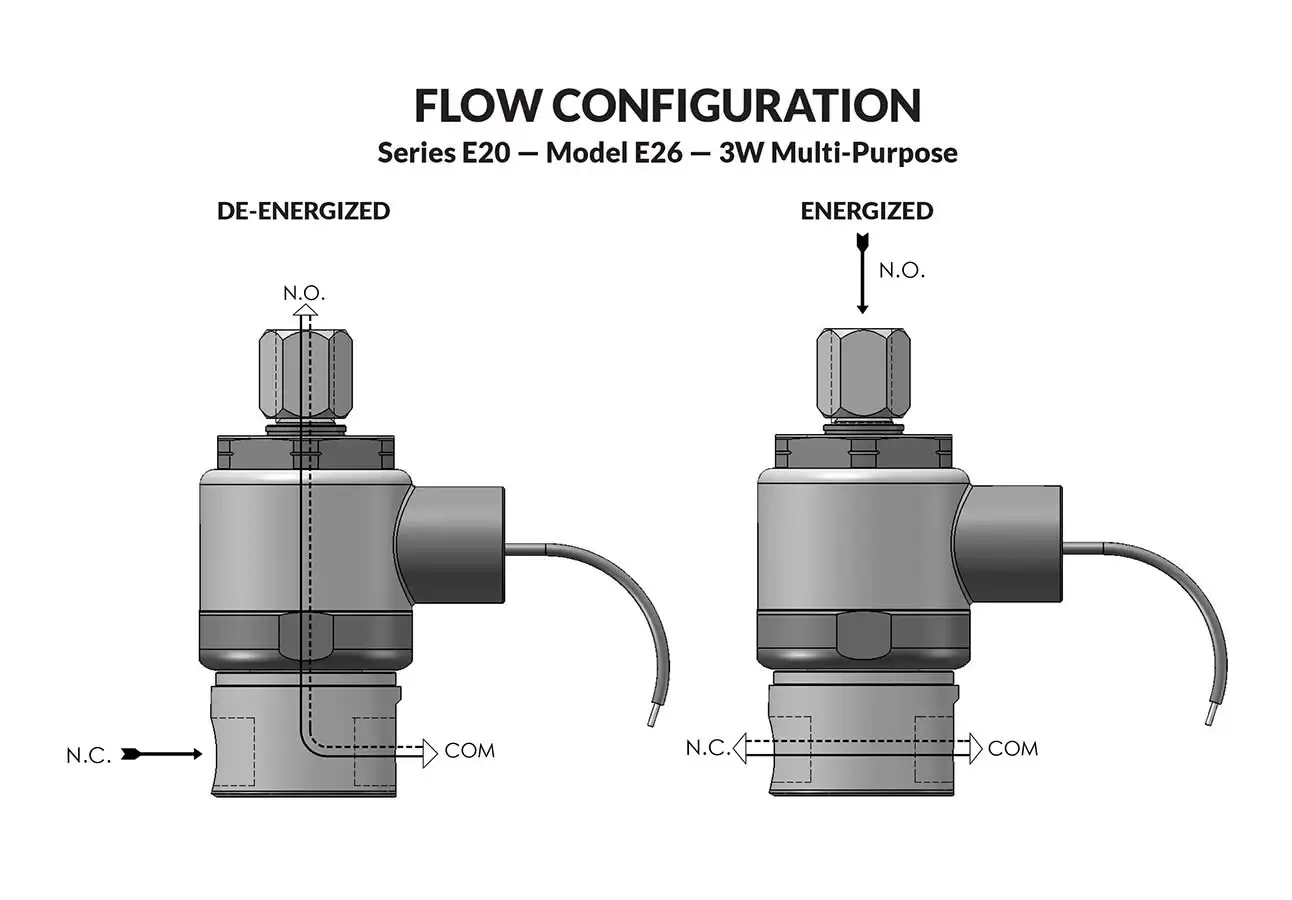

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
AC DC N.C. N.O. N.C. N.O. 1/8 NPT PORTS 1/4 NPT PORTS
400 400 1/32 1/32 .024 .024 E26GG7XCCM E26GG9ZCCM
150 150 3/64 3/64 .052 .052 E26HH7XCCM E26HH9ZCCM
100 100 1/16 1/16 .095 .095 E26JJ7XCCM E26JJ9ZCCM
75 75 3/32 3/32 .156 .156 E26KK7XCCM E26KK9ZCCM
35 35 1/8 1/8 .284 .277 E26NN7XCCM ^ E26NN9ZCCM ^

^ VALVES WITH 1/8 SLEEVE ORIFICE ARE NOT UL NOR CSA LISTED

WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E26NK9ZCCM-120/60) REPAIR KIT (2KE26NK-AC))

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 7.3 Watts DC — 9.5 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8" and 1/4" NPT (other ports available).
Housing: Flame-Proof construction with 1/2" NPT conduit
Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2 Groups A, B, C, D, E, F, and G.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 1.50 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers*

* Consult representative or factory for options and specifications.

Series 20 Hazardous Location Valves


MODEL E26 1/4-18 NPT
3-WAY MULTI-PURPOSE
EXPLOSION PROOF

MODEL E26 1/8-27 NPT
3-WAY MULTI-PURPOSE
EXPLOSION PROOF

MODEL E26 BODY OPTION "E"
3-WAY MULTI-PURPOSE
EXPLOSION PROOF

MODEL E26 BODY OPTION "O"
3-WAY MULTI-PURPOSE
EXPLOSION PROOF

MODEL E26 BODY OPTION "R"
3-WAY MULTI-PURPOSE
EXPLOSION PROOF

MODEL E26 MANUAL OVERRIDE
3-WAY MULTI-PURPOSE
EXPLOSION PROOF

MODEL E26 METERED BODY
3-WAY MULTI-PURPOSE
EXPLOSION PROOF
