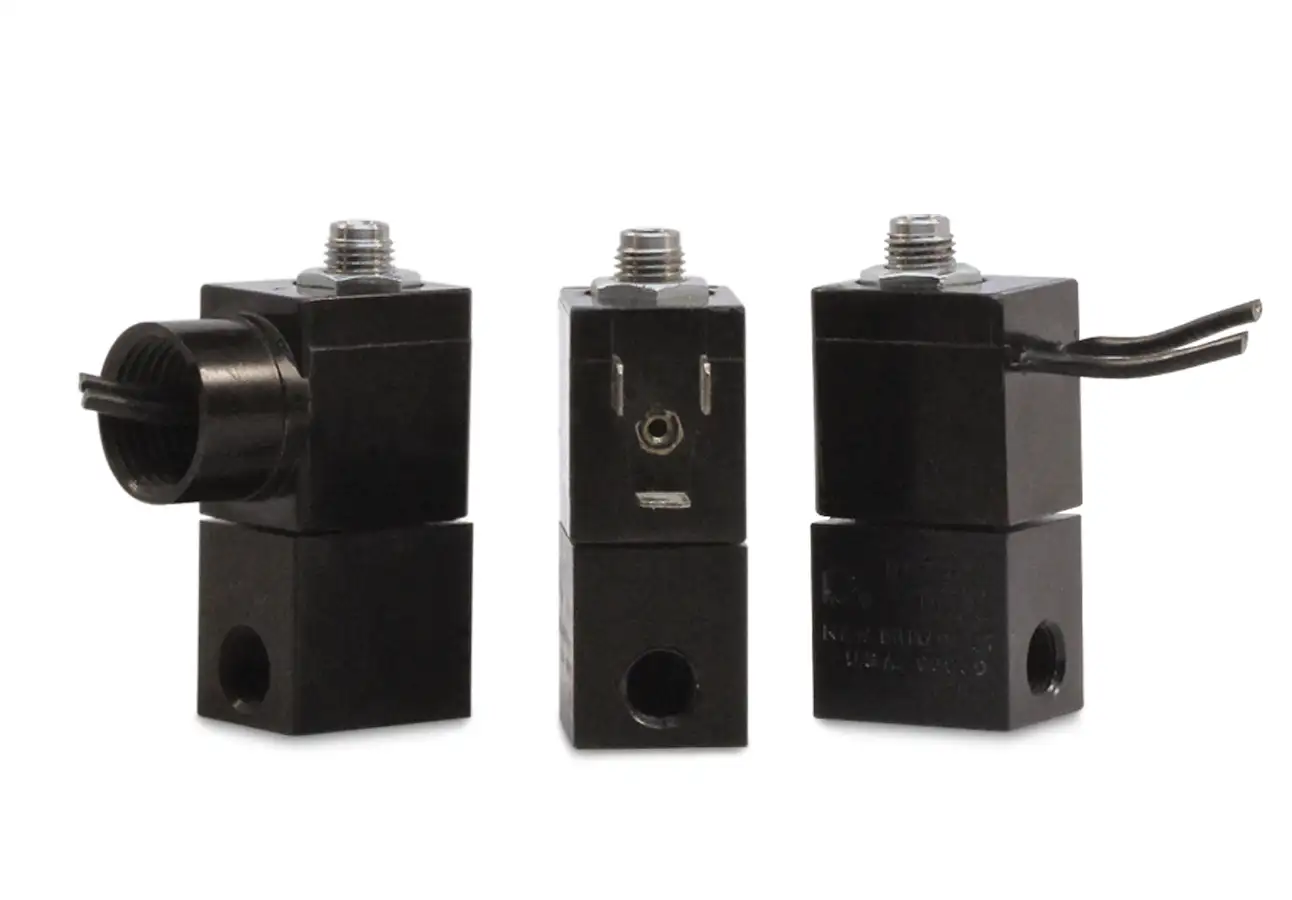

Series 15 Model 153

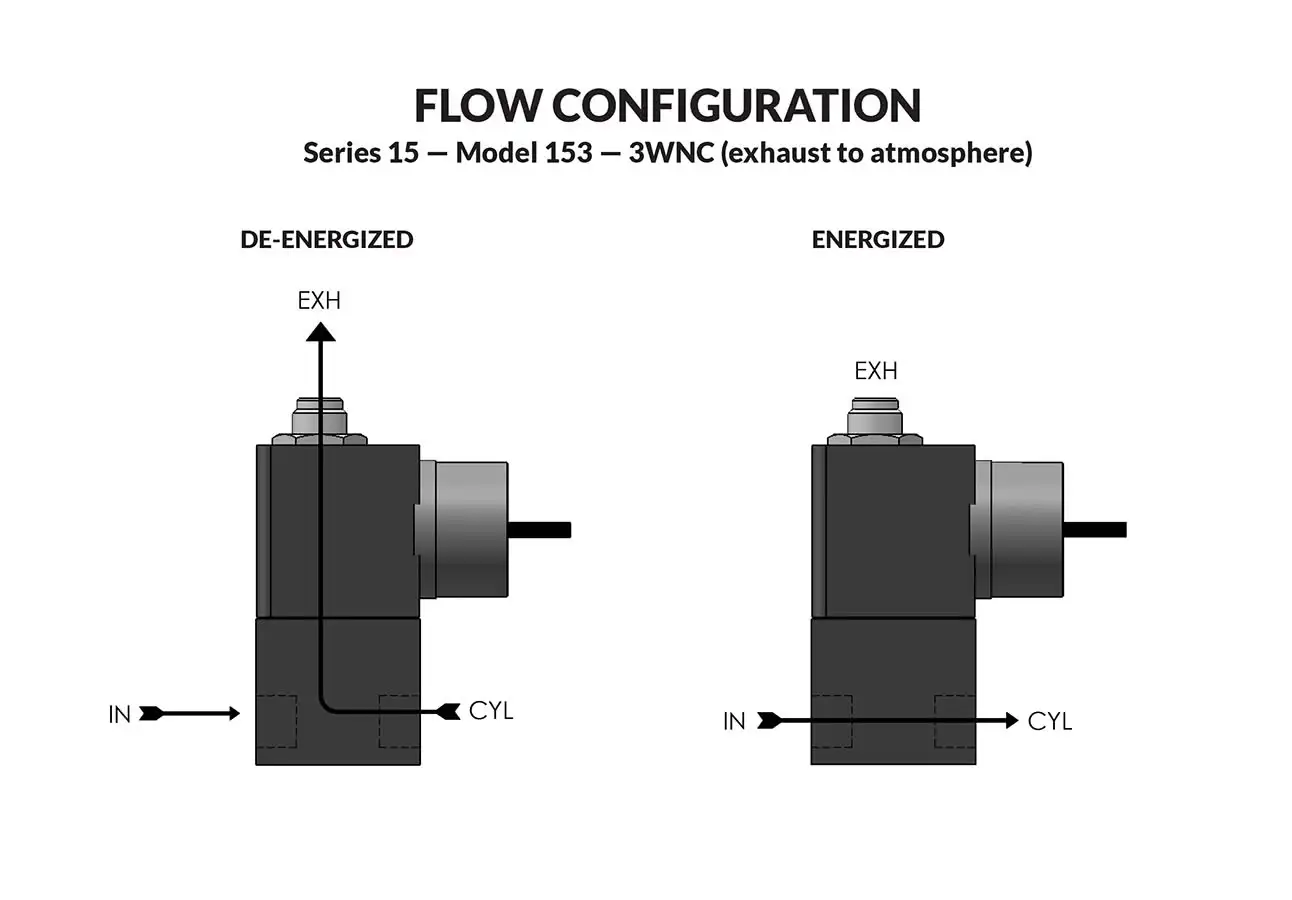

3-WAY NORMALLY CLOSED (e to a)

The little black box — magnetic components are encased in epoxy for durability and reliability. Interior parts are made of stainless steel and anodized aluminum. The valves can be used with air, inert gases and liquid media at pressures from vacuum to 200 psi — depending on orifice size and configuration. For those who require extra heat resistance and media compatibility, FKM and other elastomers are available.

Small, lightweight and economical.
Operating pressures from vacuum to 200 psi.
Quality design and construction.

Tabs

Specifications

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE		CV FACTOR		VALVE NUMBER

AC	DC	INLET	EXH	INLET	EXH	LEAD WIRE	DIN STYLE	CONDUIT HOUSING

200	200	1/32	1/32	.022	.020	153GG2DGM	153GG2DEM	153GG2DCM
150	150	3/64	3/64	.055	.048	153HH2DGM	153HH2DEM	153HH2DCM
150	150	3/64	1/16	.055	.075	153HJ2DGM	153HJ2DEM	153HJ2DCM
100	100	1/16	1/16	.075	.075	153JJ2DGM	153JJ2DEM	153JJ2DCM
60	60	3/32	1/16	.130	.075	153KJ2DGM	153KJ2DEM	153KJ2DCM
50	50	3/32	3/32	.130	.130	153KK2DGM	153KK2DEM	153KK2DCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (153JJ2DGM 120/60) repair pack (K153JD AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O153JJDDGM 120/60)

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 15 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 8.5 Watts, DC — 10.5 Watts

Coil Construction:

Molded Class F. (155°C)

Typical Response Time on Air:

4 – 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Anodized Aluminum (Std.)

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

1/8" NPT (Std.)

Housing:

Leadwires, 1/2” NPT Conduit and DIN Style Connector.

Listings:

Most valves are UL and CSA listed.*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

0.27 lb to 0.30 lb depending on model and housing style.

Repair Packs:

See table above.

Options:

Round Brass or Stainless Steel Body, Stackable Construction, Alternate Elastomers and Magnetic Latching Coil. Female DIN Style Connector Part Number 50-17029.*

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

Series 15 General Purpose Valves

3W EXHAUST TO ATMOSPHERE
CONDUIT CONNECTION

3W EXHAUST TO ATMOSPHERE
DIN STYLE

3W EXHAUST TO ATMOSPHERE
MOLDED WITH LEADS

Flow Calculator

Liquid Flow

Calculate Flow in GPM

P1-P2 (PSIA)

Specific Gravity

Flow (GPM)

Calculate Cv

Flow (GPM)

P1-P2 (PSIA)

Specific Gravity

Calculate P1-P2

Specific Gravity

Flow (GPM)

P1-P2 (PSIA)

Gas Flow P2 > 53% of P1 subsonic

Calculate Flow in CFM

P1 (PSIA)

P2 (PSIA)

Specific Gravity

Temp (460° + °F) (°Rankine)

Flow (CFM)

Calculate Cv

Flow (CFM)

P1 (PSIA)

P2 (PSIA)

Specific Gravity

Temp (460° + °F) (°Rankine)

Approx. Calculate P1

Flow (CFM)

P2 (PSIA)

Specific Gravity

Temp (460° + °F) (°Rankine)

P1 (PSIA)

Approx. Calculate P2

Flow (CFM)

P1 (PSIA)

Specific Gravity

Temp (460° + °F) (°Rankine)

P1 (PSIA)

Gas Flow P2 < 53% of P1 sonic

Calculate Flow in CFM

P1 (PSIA)

Specific Gravity

Temp (460° + °F) (°Rankine)

Flow (CFM)

Calculate Cv

Flow CFM

P1 (PSIA)

Specific Gravity

Temp (460° + °F) (°Rankine)

Calculate P1

Flow (CFM)

Specific Gravity

Temp (460° + °F) (°Rankine)

P1 (PSIA)

Nomenclature Tab

Nomenclature Chart (non 58 series)

Nomenclature, all valve series except 58

* Consult representative or factory for options and specifications
