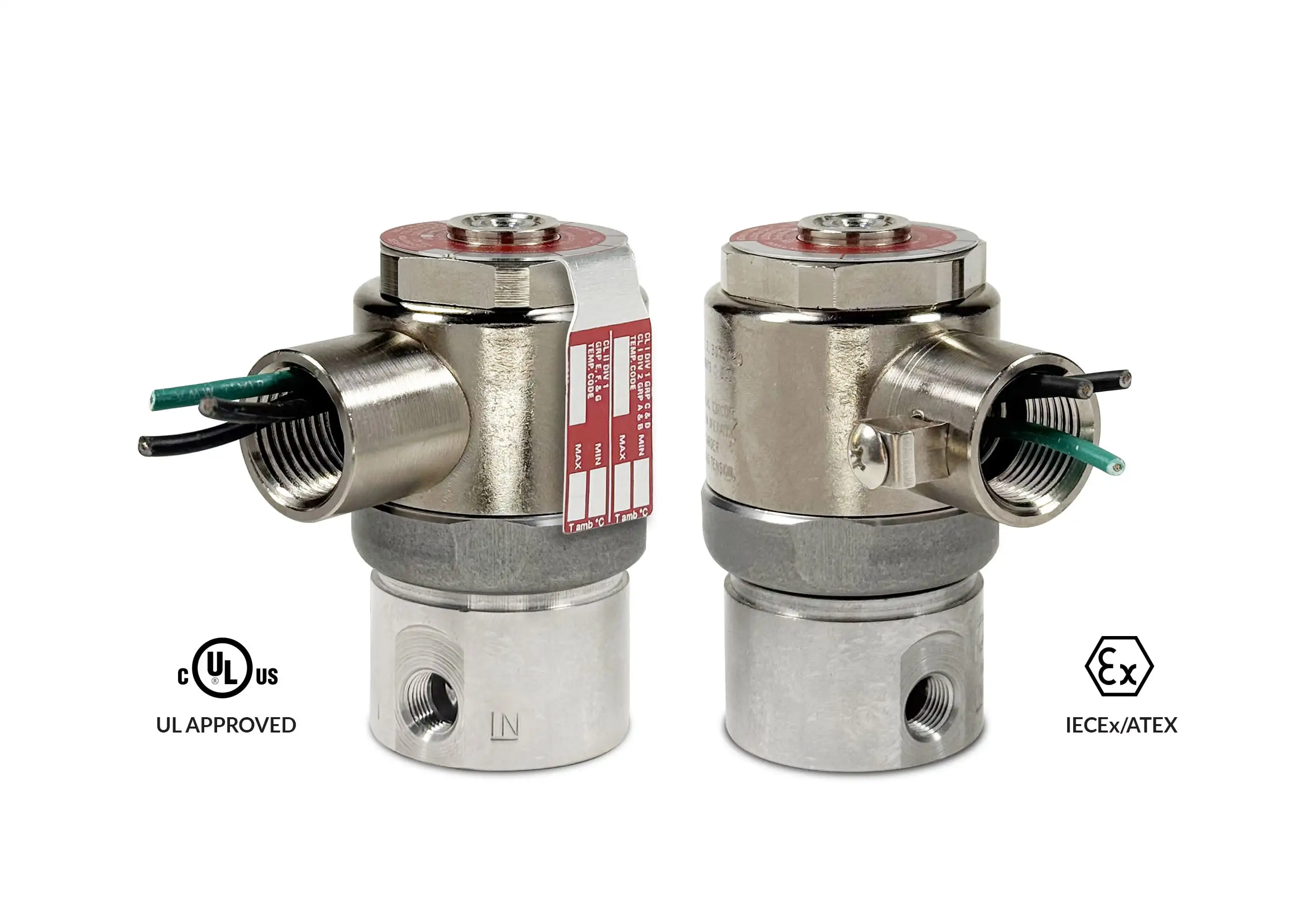

Series 20 Model E23

Hazardous Location
3-Way Normally Closed Valve (exhaust to atmosphere)

Peter Paul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.

• Explosion Proof
• The flagship valve initially created for fluid power industry.
• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• It has the greatest amount of options available of all the valves.
• Wide range of orifice sizes from 1/32" to 1/4".

53etoaflow

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

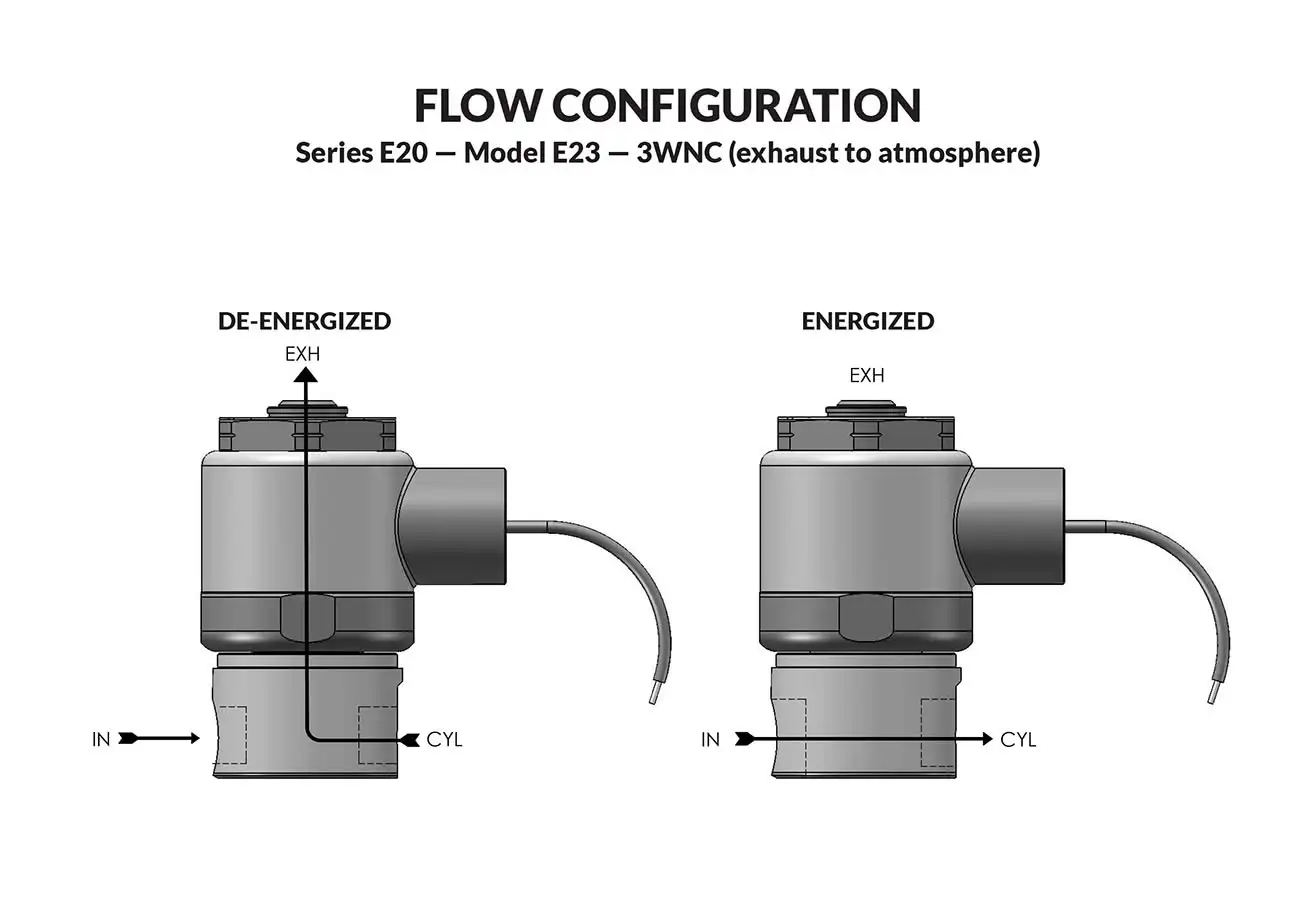

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

+ MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
AC DC N.C. N.O. N.C. N.O. 1/8 NPT PORTS 1/4 NPT PORTS
400 400 1/32 1/32 .024 .024 E23GG7DCCM E23GG9DCCM
150 (200) 150 (200) 3/64 1/16 .052 .095 E23HJ7DCCM E23HJ9DCCM
100 (135) 100 (135) 1/16 1/16 .095 .095 E23JJ7DCCM E23JJ9DCCM
100 (135) 100 (135) 1/16 3/32 .095 .156 E23JK7DCCM E23JK9DCCM
75 (100) 75 (100) 3/32 3/32 .156 .156 E23KK7DCCM E23KK9DCCM
50 (70) 50 (70) 1/8 3/32 .284 .156 E23NK7DCCM E23NK9DCCM
35 (40) 35 (40) 1/8 1/8 .284 .227 E23NN7DCCM ^ E23NN9DCCM^
20 20 3/16 3/32 .500 .156 E23PK7DCCM E23PK9DCCM
20 20 3/16 1/8 .500 .227 E23PN7DCCM ^ E23PN9DCCM^
15 1/4 3/32 .700 .156 E23RK7DCCM E23RK9DCCM
15 1/4 1/8 .700 .227 E23RN7DCCM ^ E23RN9DCCM^

^ VALVES WITH 1/8 N.O. ORIFICE ARE NOT UL OR CSA LISTED
+ Ratings in brackets are optional extended ratings; consult factory.

WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E23KK9DCCM-120/60) REPAIR KIT (2KE23KKD-AC)

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 7.3 Watts DC — 9.5 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8" and 1/4" NPT (other ports available).
Housing: Flame-Proof construction with 1/2" NPT conduit
Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2 Groups A, B, C, D, E, F, and G.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 1.38 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers*

* Consult representative or factory for options and specifications.

Series 20 Hazardous Location Valves


MODEL E23 1/4-18 NPT
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF

MODEL E23 1/8-27 NPT
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF

MODEL E23 BODY OPTION "R"
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF

MODEL E23 BODY OPTION "O"
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF

MODEL E23 BODY OPTION "R"
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF

MODEL E23 MANUAL OVERRIDE
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF

MODEL E23 METERING
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF
