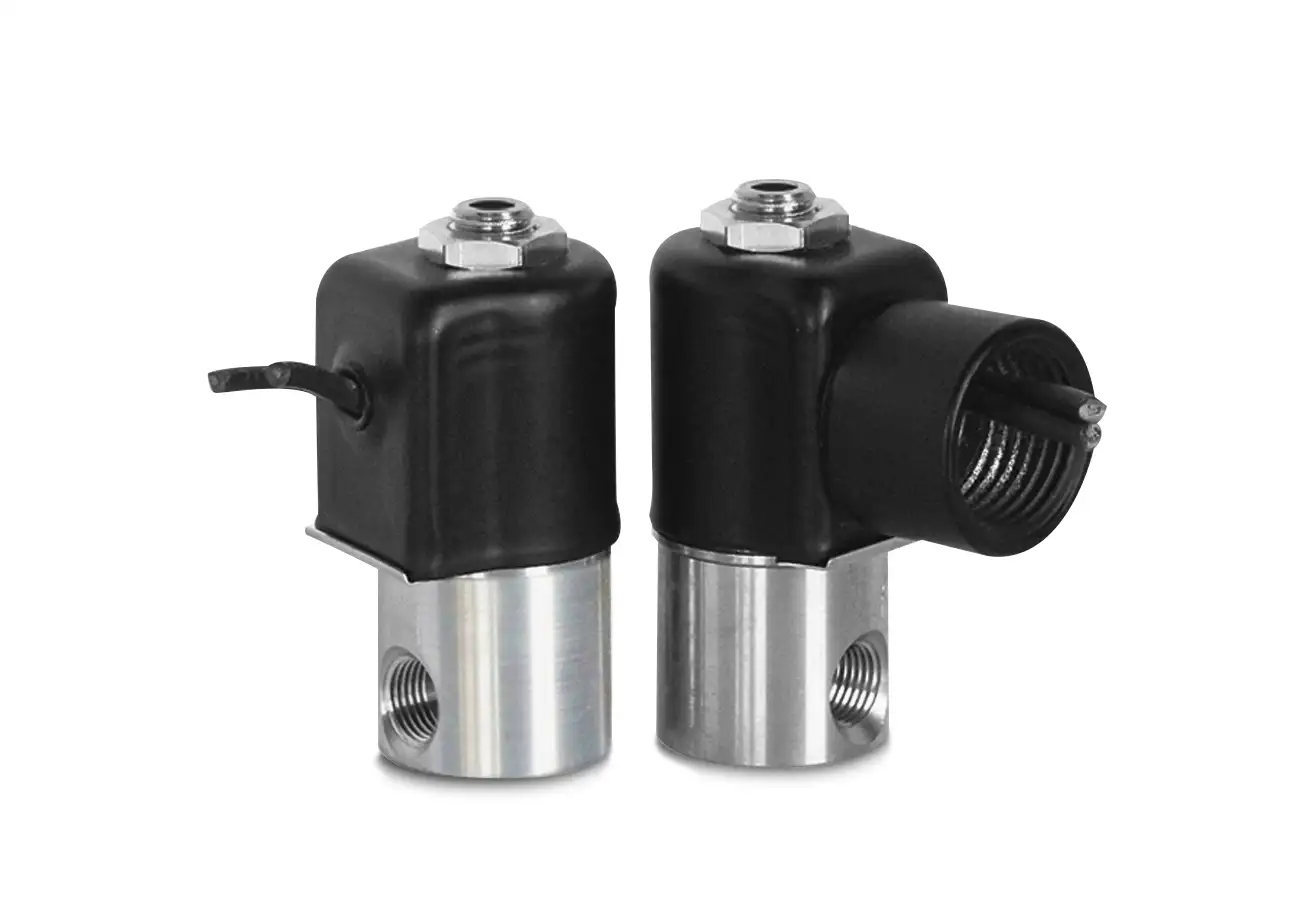

Peter Paul Series 50 Model 53 (e to a) Valve

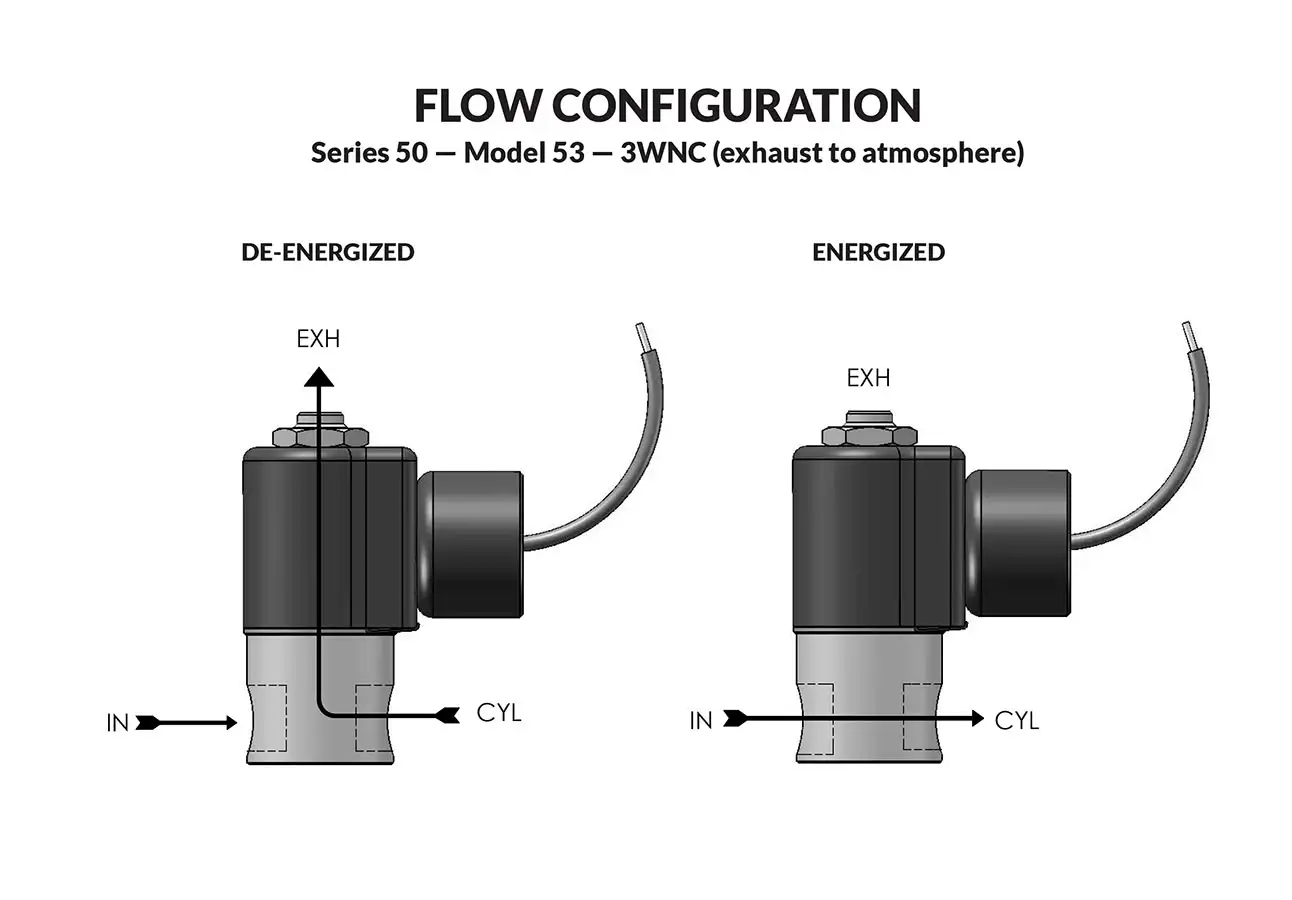

3-WAY NORMALLY CLOSED (e to a)

Our original mini — engineered for space economy without sacrificing performance. Typical applications include medical, analytical instrumentation. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

Tough with options to use in hazardous location environments or low watt applications.
High quality engineering.

Tabs

Specifications

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE		CV FACTOR		VALVE NUMBER GROMMET HOUSING	CONDUIT HOUSING

AC	DC	INLET	EXH	INLET	EXH	1/8 NPT PORTS	1/8 NPT PORTS

200	200	1/32	1/32	.022	.020	53GG8DGM	53GG8DCM
150	150	3/64	3/64	.055	.048	53HH8DGM	53HH8DCM
150	150	3/64	1/16	.055	.075	53HJ8DGM	53HJ8DCM
100	100	1/16	1/16	.075	.075	53JJ8DGM	53JJ8DCM
60	60	3/32	1/16	.156	.075	53KJ8DGM	53KJ8DCM
50	50	3/32	3/32	.156	.150	53KK8DGM	53KK8DCM
30	30	1/8	1/16	.230	.075	53NJ8DGM	53NJ8DCM
30	30	1/8	3/32	.230	.150	53NK8DGM	53NK8DCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (53JJ8DGM 120/60) repair pack (K53JJD AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O53JJDDGM 120/60)

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:
