Series 50 LW Model LW53

Low Watt
3-Way Normally Closed Valve (piped exhaust)

General purpose valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials.

• General purpose valve with reduced power consumption.
• Increased versatility.
• For pneumatic and hydraulic application.
• Increased to handle hot air, water and refrigerants.
• High quality engineering.

53pipedflow

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

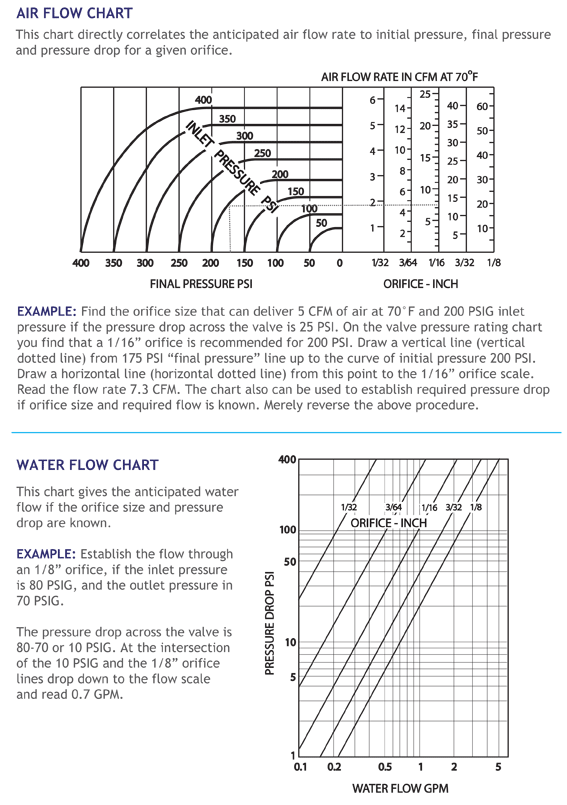

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER. PRESS. DIFF. ORIFICE SIZE CV FACTOR VALVE NUMBER
GAS LIQUID
AC DC AC DC N.C. N.O. N.C. N.O. GROMMET 1/8" NPT CONDUIT 1/8" NPT
215 135 215 135 1/32 1/32 .022 .022 LW53GG8XGM LW53GG8XCM
215 120 120 65 1/32 3/64 .022 .048 LW53GH8XGM LW53GH8XCM
135 50 40 30 1/32 1/16 .022 .075 LW53GJ8XGM LW53GJ8XCM
70 35 30 20 1/32 5/64 .022 .134 LW53GV8XGM LW53GV8XCM
55 30 25 15 1/32 3/32 .022 .156 LW53GK8XGM LW53GK8XCM
120 70 120 65 3/64 3/64 .055 .048 LW53HH8XGM LW53GN8XCM
120 50 40 30 3/64 1/16 .055 .075 LW53HJ8XGM LW53GO8XCM
70 35 30 20 3/64 5/64 .055 .134 LW53HV8XGM LW53HV8XCM
55 30 25 15 3/64 3/32 .055 .156 LW53HK8XGM LW53HK8XCM
85 40 40 30 1/16 1/16 .075 .075 LW53JJ8XGM LW53JJ8XCM
70 35 30 20 1/16 5/64 .075 .134 LW53JV8XGM LW53JV8XCM
55 30 25 15 1/16 3/32 .075 .156 LW53JK8XGM LW53JK8XCM
50 30 30 20 5/64 5/64 .134 .134 LW53VV8XGM LW53VV8XCM
50 30 25 15 5/64 3/32 .134 .156 LW53VK8XGM LW53VK8XCM
35 20 25 15 3/32 3/32 .150 .156 LW53KK8XGM LW53KK8XCM

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (LW53JJ8XCCMG-120/60) REPAIR PACK (KLW53JJX-AC)

OPERATING CONDITIONS

Media: Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 22 to 277V AC 60 HZ. and 20 to 250V AC 50 HZ.— 6.0 to 120V DC
Nominal Power: AC — 2.5 Watts DC — 2.5 Watts
Coil Construction: Non-molded Class A, Molded and potted Class F. (Class H optional)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8" NPT (Std.)
Housing: Grommet and 1/2" NPT conduit - many options available.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
Repair Packs: See table above.
Options: Alternate Port Locations, Metering and Alternate Elastomers*

* Consult representative or factory for options and specifications.

Series 50 LW Low Watt Valves Piped Conduit Connection


3WNC PIPED EXHAUST
CONDUIT CONNECTION

10-32 PORTS
3WNC PIPED EXHAUST
CONDUIT CONNECTION

OPTION "E"
3WNC PIPED EXHAUST
CONDUIT CONNECTION

OPTION "O"
3WNC PIPED EXHAUST
CONDUIT CONNECTION

BODY OPTION "R"
3WNC PIPED EXHAUST
CONDUIT CONNECTION

METERED BODY
3WNC PIPED EXHAUST
CONDUIT CONNECTION

Series 50 LW Low Watt Valves Piped Conduit/Bracket Connection


PIPED EXHAUST
3WNC
CONDUIT/BRACKET CONNECTION

10-32 PORTS
3WNC PIPED EXHAUST
CONDUIT/BRACKET CONNECTION

BODY OPTION "E"
3WNC PIPED EXHAUST
CONDUIT/BRACKET CONNECTION

BODY OPTION "O"
3WNC PIPED EXHAUST
CONDUIT/BRACKET CONNECTION

BODY OPTION "R"
3WNC PIPED EXHAUST
CONDUIT/BRACKET CONNECTION

METERED BODY
3WNC PIPED EXHAUST
CONDUIT/BRACKET CONNECTION

Series 50 LW Low Watt Valves Piped Grommet Connection


3WNC PIPED EXHAUST
GROMMET WITH LEADS

10-32 PORTS
3WNC PIPED EXHAUST
GROMMET WITH LEADS

BODY OPTION "E"
3WNC PIPED EXHAUST
GROMMET WITH LEADS

BODY OPTION "O"
3WNC PIPED EXHAUST
GROMMET WITH LEADS

BODY OPTION "R"
3WNC PIPED EXHAUST
GROMMET WITH LEADS

METERED BODY
3WNC PIPED EXHAUST
GROMMET WITH LEADS

Series 50 LW Low Watt Valves Piped Grommet/Bracket Connection


3WNC
PIPED EXHAUST
GROMMET/BRACKET WITH LEADS

10-32 PORTS
3WNC PIPED EXHAUST
GROMMET/BRACKET WITH LEADS

BODY OPTION "E"
3WNC PIPED EXHAUST
GROMMET/BRACKET WITH LEADS

BODY OPTION "O"
3WNC PIPED EXHAUST
GROMMET/BRACKET WITH LEADS

BODY OPTION "R"
3WNC PIPED EXHAUST
GROMMET/BRACKET WITH LEADS

METERED BODY
3WNC PIPED EXHAUST
GROMMET/BRACKET WITH LEADS

Series 50 LW Low Watt Valves Piped Splice Box Connection


PIPED EXHAUST
3WNC
SPLICE BOX CONNECTION

10-32 PORTS
3WNC PIPED EXHAUST
SPLICE BOX CONNECTION

BODY OPTION "E"
3WNC PIPED EXHAUST
SPLICE BOX CONNECTION

BODY OPTION "O"
3WNC PIPED EXHAUST
SPLICE BOX CONNECTION

BODY OPTION "R"
3WNC PIPED EXHAUST
SPLICE BOX CONNECTION

METERED BODY
3WNC PIPED EXHAUST
SPLICE BOX CONNECTION

Series 50 LW Low Watt Valves Piped Yoke Leads


3WNC
PIPED EXHAUST
YOKE WITH LEADS

10-32 PORTS
3WNC PIPED EXHAUST
YOKE WITH LEADS

BODY OPTION "E"
3WNC PIPED EXHAUST
YOKE WITH LEADS

BODY OPTION "O"
3WNC PIPED EXHAUST
YOKE WITH LEADS

BODY OPTION "R"
3WNC PIPED EXHAUST
YOKE WITH LEADS

METERED BODY
3WNC PIPED EXHAUST
YOKE WITH LEADS

Series 50 LW Low Watt Valves Piped Yoke Spades


3WNC
PIPED EXHAUST
YOKE WITH SPADE TERMINALS

10-32 PORTS
3WNC PIPED EXHAUST
YOKE WITH SPADE TERMINALS

BODY OPTION "E"
3WNC PIPED EXHAUST
YOKE WITH SPADE TERMINALS

BODY OPTION "O"
3WNC PIPED EXHAUST
YOKE WITH SPADE TERMINALS

BODY OPTION "R"
3WNC PIPED EXHAUST
YOKE WITH SPADE TERMINALS

METERED BODY
3WNC PIPED EXHAUST
YOKE WITH SPADE TERMINALS
