Series 58 Model 583

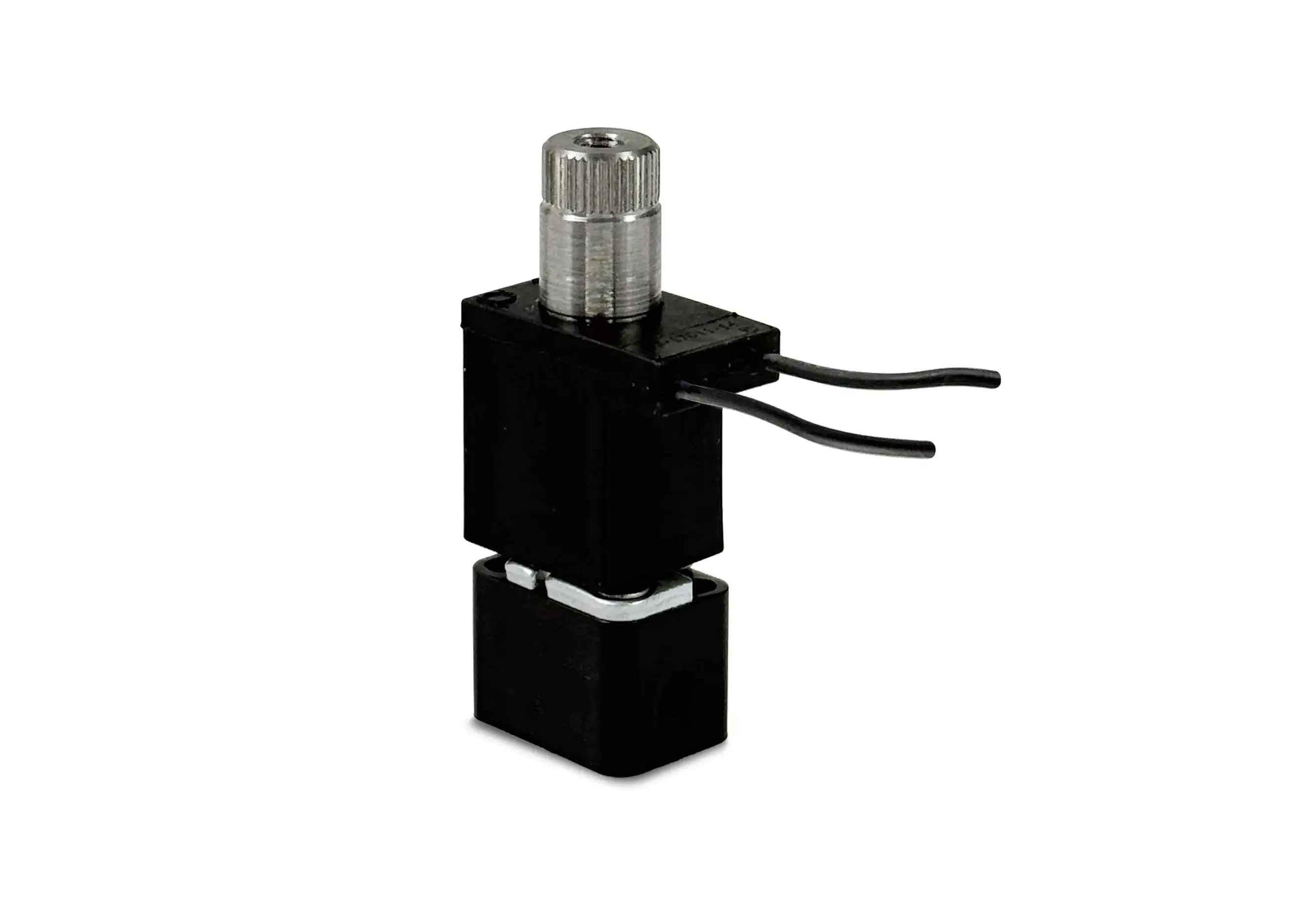

Low Watt 3-Way Normally Closed Valve (piped exhaust)

3-WAY NORMALLY CLOSED (piped)

Easily interfaced with circuit boards and miniaturized components. The versatility is for connecting electronic signals to pneumatic outputs. The small size is ideal for stand alone (with #10-32 UNF-2B ports) or multiple valves mounted on one manifold. Air and other common gases — filtration recommended — 30 microns or less.
• May be used to "pilot" larger valves.
• Ideal for micro electronic production equipment.
• Great for medical and chemical analytical applications.
• Can operate directly from most programmable controllers.
• High quality engineering.

Model-583pip.pdf

Tabs

Specifications

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE		CV FACTOR		VALVE NUMBER

AC	DC	N.C.	N.O.	N.C.	N.O.	LEADWIRE	MICRO DIN

300	300	0.6 mm	0.6 mm	.010	.010	583AA19PGM	583AA19PE
300	300	0.6 mm	0.8 mm	.010	.020	583AF19PGM	583AF19PE
250	250	0.8 mm	0.8 mm	.020	.020	583FF19PGM	583FF19PE
145	145	1.0 mm	1.0 mm	.030	.030	583MM19PGM	583MM19PE
100	100	1.2 mm	1.2 mm	.034	.034	583WW19PGM	583WW19PE

Operating Conditions:

Media:

Air and other common gases — filtration recommended — 30 microns or less.

Valve Temperature Range:

Standard Valves – 5°F (-15°C) to 122°F (50°C) ambient; media.

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

1500 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

14 to 220V AC 60 HZ. and 13 to 202V AC 50 HZ.— 3.0 to 150V DC

Nominal Power:

AC — 3.5 Watts, DC — 3.5 Watts

Coil Construction:

Molded Class A with leadwires and Micro DIN.

Typical Response Time on Air:

AC — 3 to 9 Milliseconds, DC — 9 Milliseconds

Operating Speed:

Up to 1000 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Polyester Plastic (Std.), Round Brass or Stainless Steel (Opt.)

Internal Components:

Stainless Steel

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

#10-32 UNF-2B

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

0.13 lbs

Repair Packs:

See table above.

Options:

Round Stainless Steel or Brass Body, Male Stud Mount, Manual Override, M5 Ports and Manifold Mount*

Drawings

Drawings:

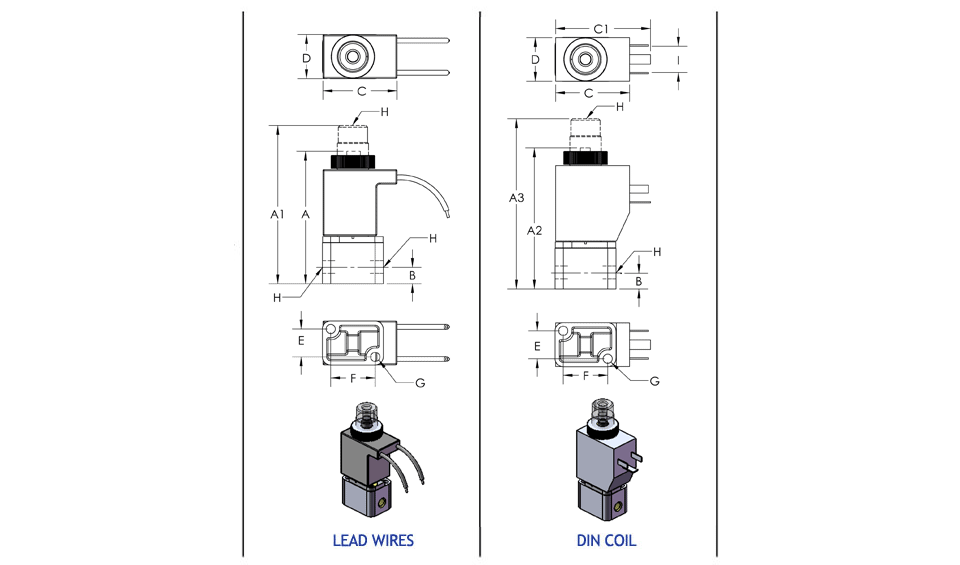

Series 58 Model 583 (piped) Molded Leads

3WNC PIPED EXHAUST
MOLDED COIL WITH LEADS
PLASTIC BODY WITH 10-32 PORTS

3WNC PIPED EXHAUST
MOLDED LEAD STYLE COIL
STAINLESS STEEL BODY WITH 10-32 PORTS

3WNC PIPED EXHAUST
MOLDED LEADS STYLE COIL
MANIFOLD MOUNT PLASTIC BODY
WITH MANUAL OVERRIDE

3WNC PIPED EXHAUST
MOLDED LEADS COIL
MANIFOLD MOUNT PLASTIC BODY

3WNC PIPED EXHAUST
MOLDED LEADS COIL
STUD MANIFOLD MOUNT
WITH STAINLESS STEEL BODY

Series 58 Model 583 (piped) DIN

3WNC PIPED EXHAUST
DIN STYLE COIL
PLASTIC BODY WITH 10-32 PORTS

3WNC PIPED EXHAUST
DIN STYLE COIL
STAINLESS STEEL BODY WITH 10-32 PORTS

3WNC PIPED EXHAUST
DIN STYLE COIL
MANIFOLD MOUNT PLASTIC BODY
WITH MANUAL OVERRIDE

3WNC PIPED EXHAUST
DIN STYLE COIL
MANIFOLD MOUNT PLASTIC BODY

3WNC PIPED EXHAUST
DIN STYLE COIL
STUD MANIFOLD MOUNT
STAINLESS STEEL BODY

Flow Chart Tab

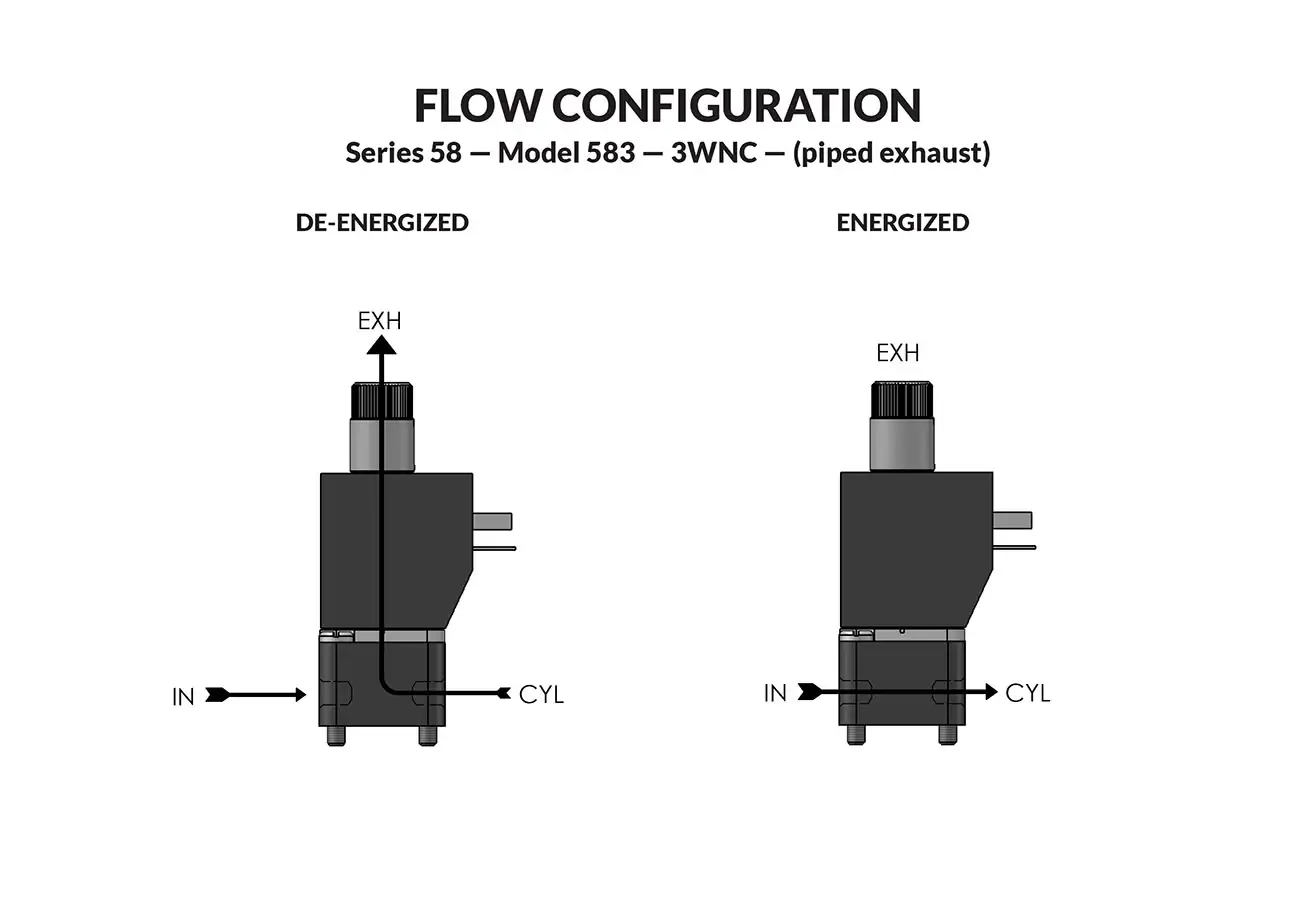

Flow Chart:

Flow chart Series 58

Series 58 Flow Chart

Nomenclature Tab

Nomenclature:

Nomenclature Chart (58 series)

Nomenclature, 58 series

* Consult representative or factory for options and specifications
