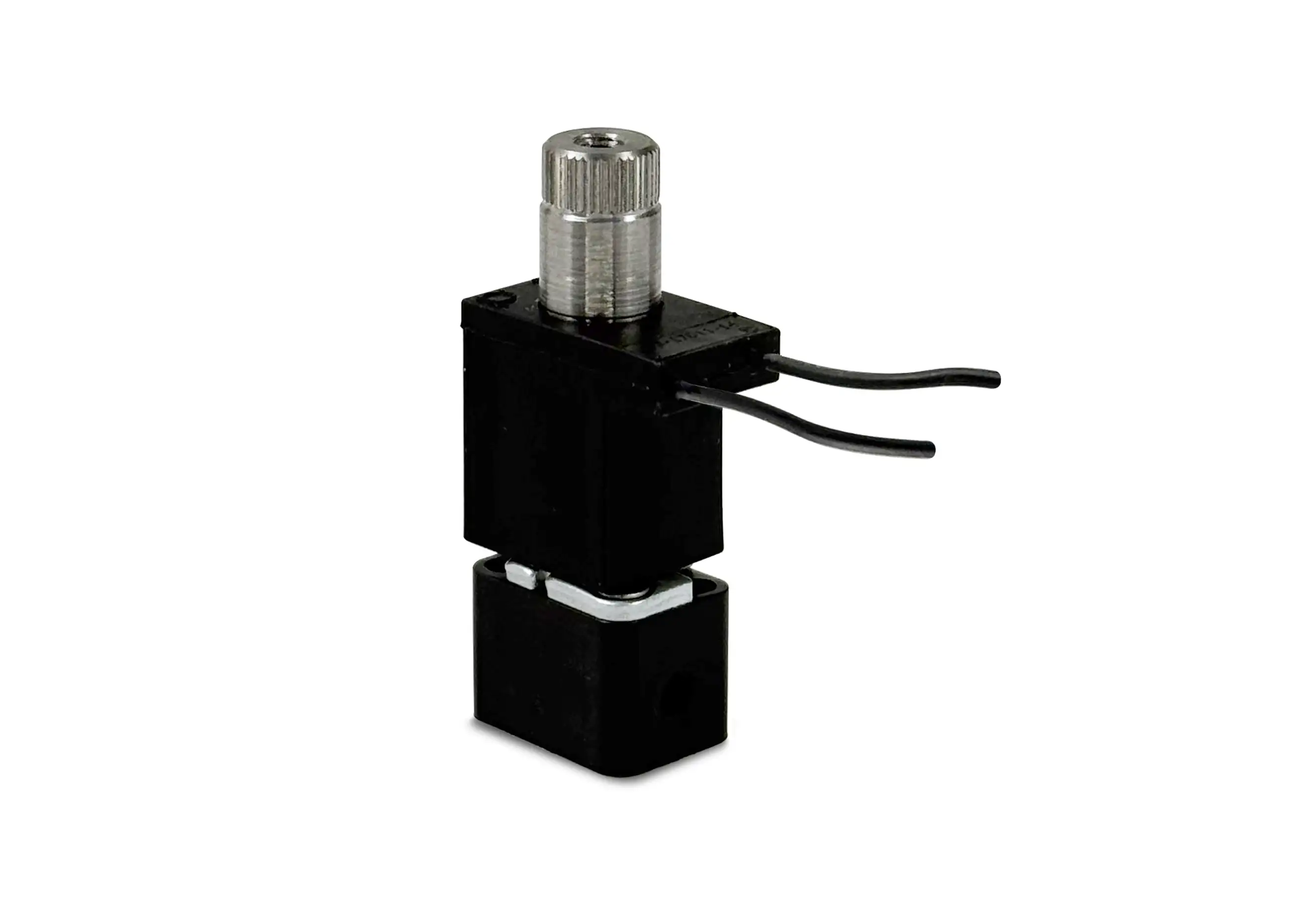

Series L58 Model L583 - Piped Exhaust

Peter Paul Series L58 Model L583 (piped)

3-WAY NORMALLY CLOSED (piped)

Very Low Watt 3-Way Normally Closed Valve (piped exhaust) Easily interfaced with circuit boards and miniaturized components. The versatility is for connecting electronic signals to pneumatic outputs. The small size is ideal for stand alone (with #10-32 ports) or multiple valves mounted on one manifold. Air and other common gases - filtration recommended - 30 microns or less.

May be used to "pilot" larger valves.
Ideal for micro electronic production equipment.
Great for medical and chemical analytical applications.
Can operate directly from most programmable controllers.
High quality engineering.

Tabs

Specifications

VALVE SPECIFICATIONS

MAX. OPER. PRESS. DIFF.	ORIFICE SIZE		CV FACTOR		VALVE NUMBER

DC	INLET	EXH	INLET	EXH

145	0.6 mm	0.6 mm	.010	.010	L583AA19PGM
145	0.6 mm	0.8 mm	.010	.020	L583AF19PGM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (L583AF19PG 12/DC) repair pack (L583AF19G DC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OL583AF1DDG 12/DC)

Operating Conditions:

Media:

Air and other common gasses - filtration recommended - 30 microns or less.

Valve Temperature Range:

Standard Valves – 5°F (-15°C) to 122°F (50°C) ambient and media. Note Do not allow water to freeze when using plastic body.

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

1500 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12, 24/DC

Nominal Power:

DC — 0.9 Watts

Coil Construction:

Molded Class A with leadwires (Std.), Micro DIN (Opt.)

Typical Response Time on Air:

DC - 9 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Polyester Plastic (Std.), Stainless Steel (Opt.)

Internal Components:

Stainless Steel

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

#10-32 and Manifold Mount

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

0.13 lbs

Repair Packs:

See table above.

Options:

Round Stainless Steel, Male Stud Mount, and Manifold Mount*

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

Series L58 Model L583 Piped Leads Connection

3WNC PIPED EXHAUST MOLDED COIL WITH LEADS PLASTIC BODY WITH 10-32 PORTS

3WNC PIPED EXHAUST MOLDED LEAD STYLE COIL STAINLESS STEEL BODY WITH 10-32 PORTS

3WNC PIPED EXHAUST MOLDED LEADS COIL MANIFOLD MOUNT PLASTIC BODY

3WNC PIPED EXHAUST MOLDED LEADS COIL STUD MANIFOLD MOUNT WITH STAINLESS STEEL BODY

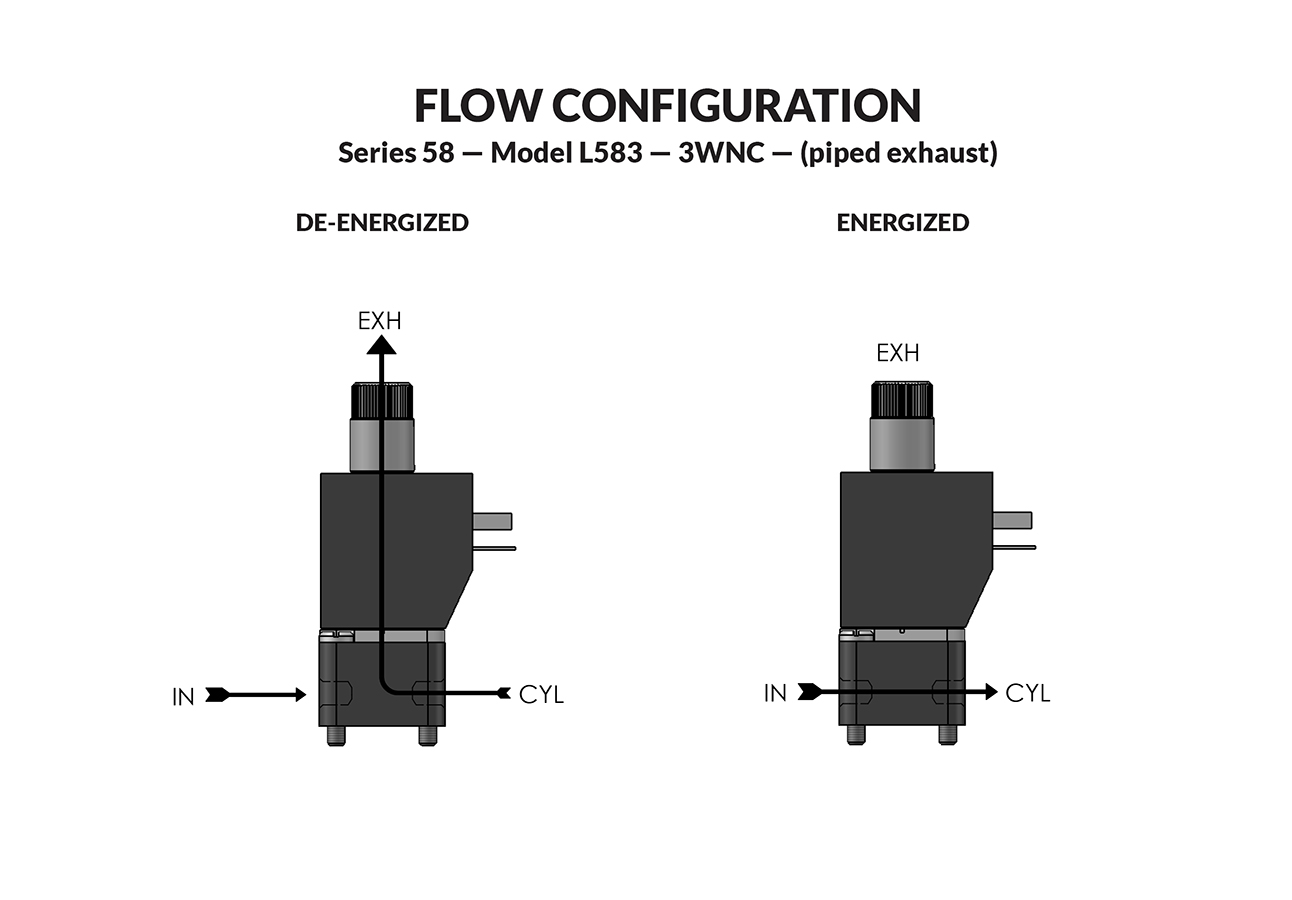

Flow Chart Tab

Flow chart Series 58

Nomenclature Tab

Nomenclature Chart (58 series)

* Consult representative or factory for options and specifications
